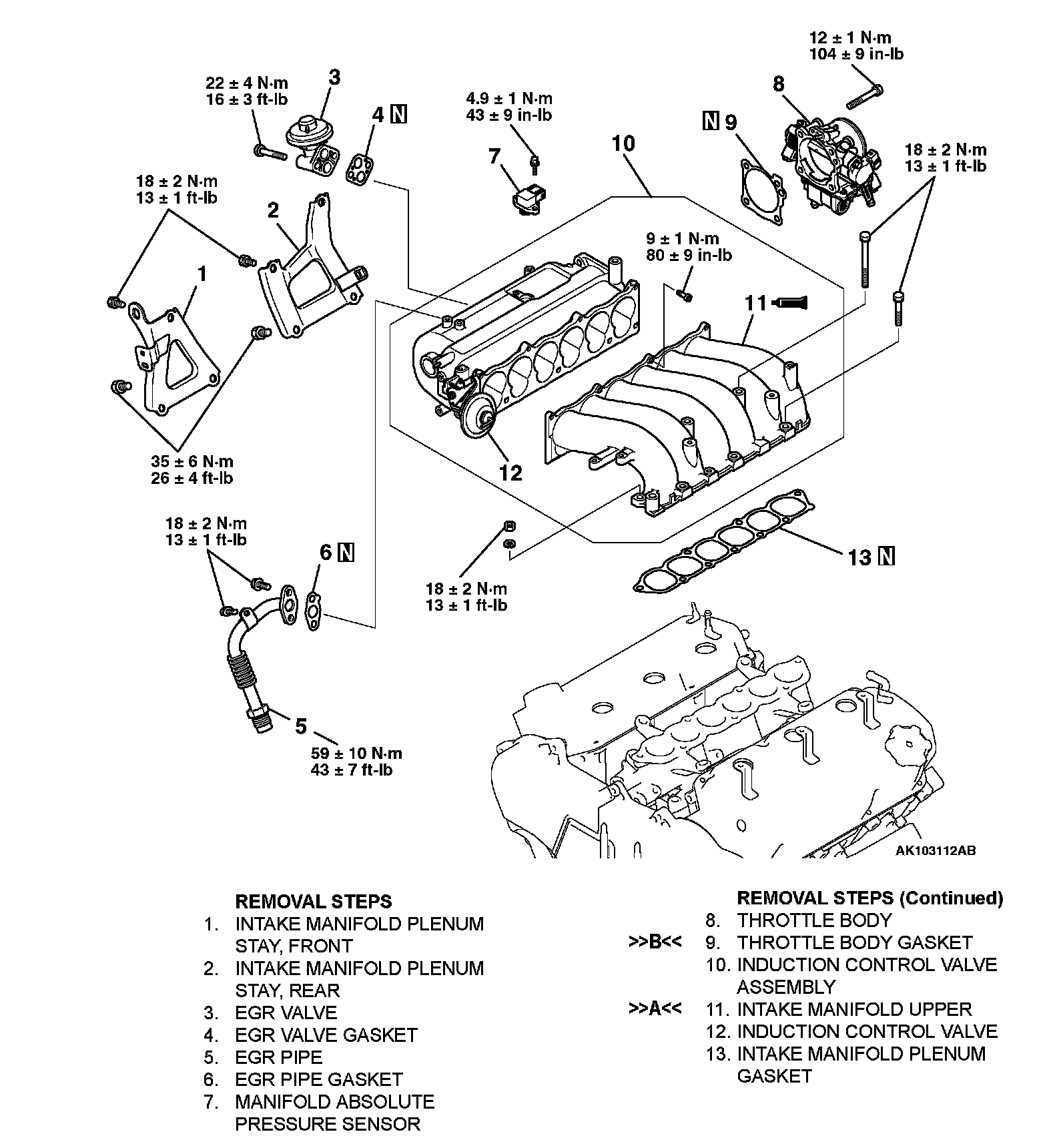

Intake Manifold Plenum and Throttle Body Assembly

INTAKE MANIFOLD PLENUM AND THROTTLE BODY ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
