Eclipse V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Disc Brake System
>>
Rear
Rear

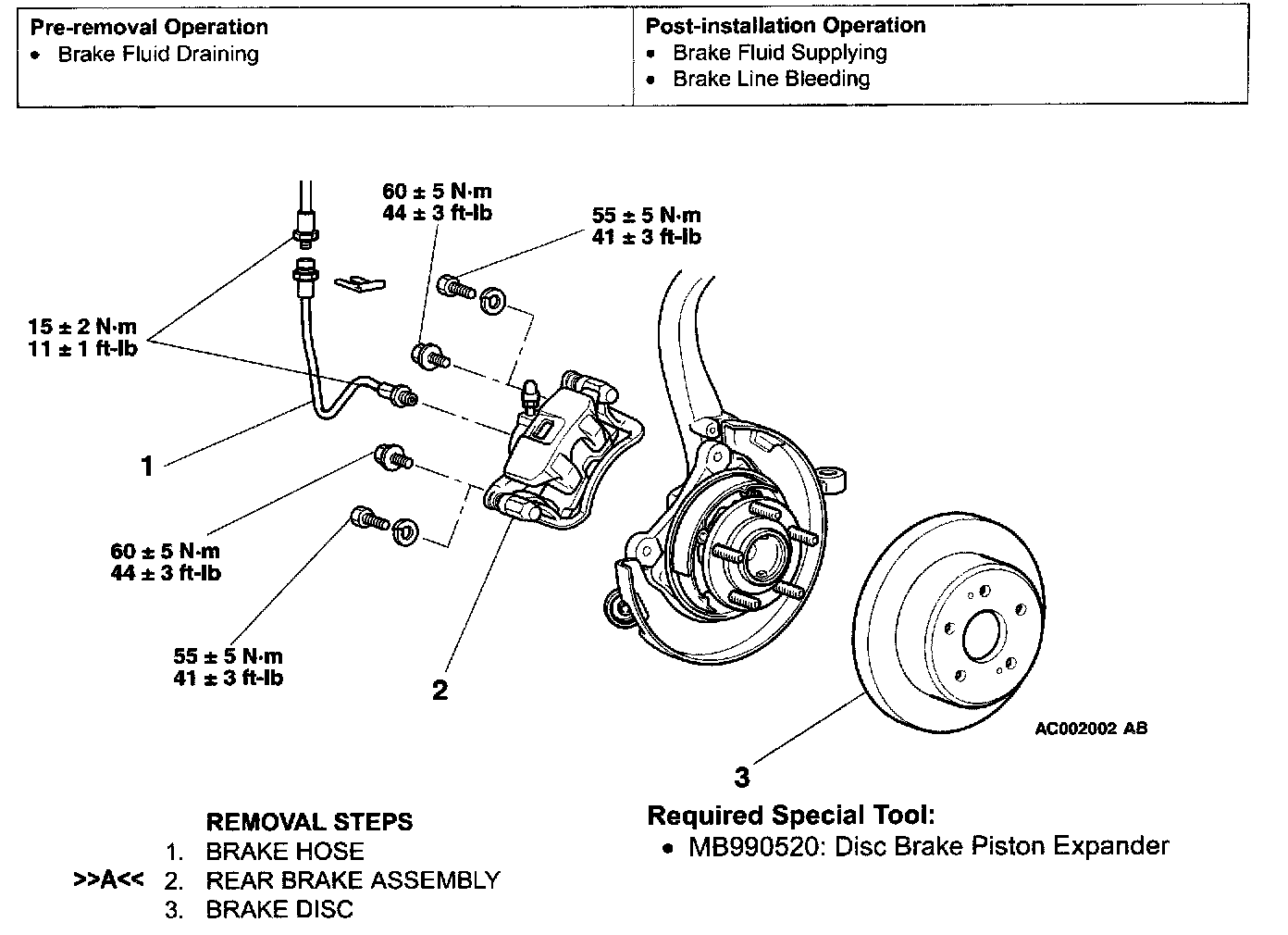

REAR DISC BRAKE ASSEMBLY REPLACEMENT W/ RELATED COMPONENTS
REAR DISC BRAKE ASSEMBLY OVERHAUL W/ RELATED COMPONENTS
