Eclipse Spyder

BODY CONSTRUCTION CHARACTERISTICS

FRONT BODY

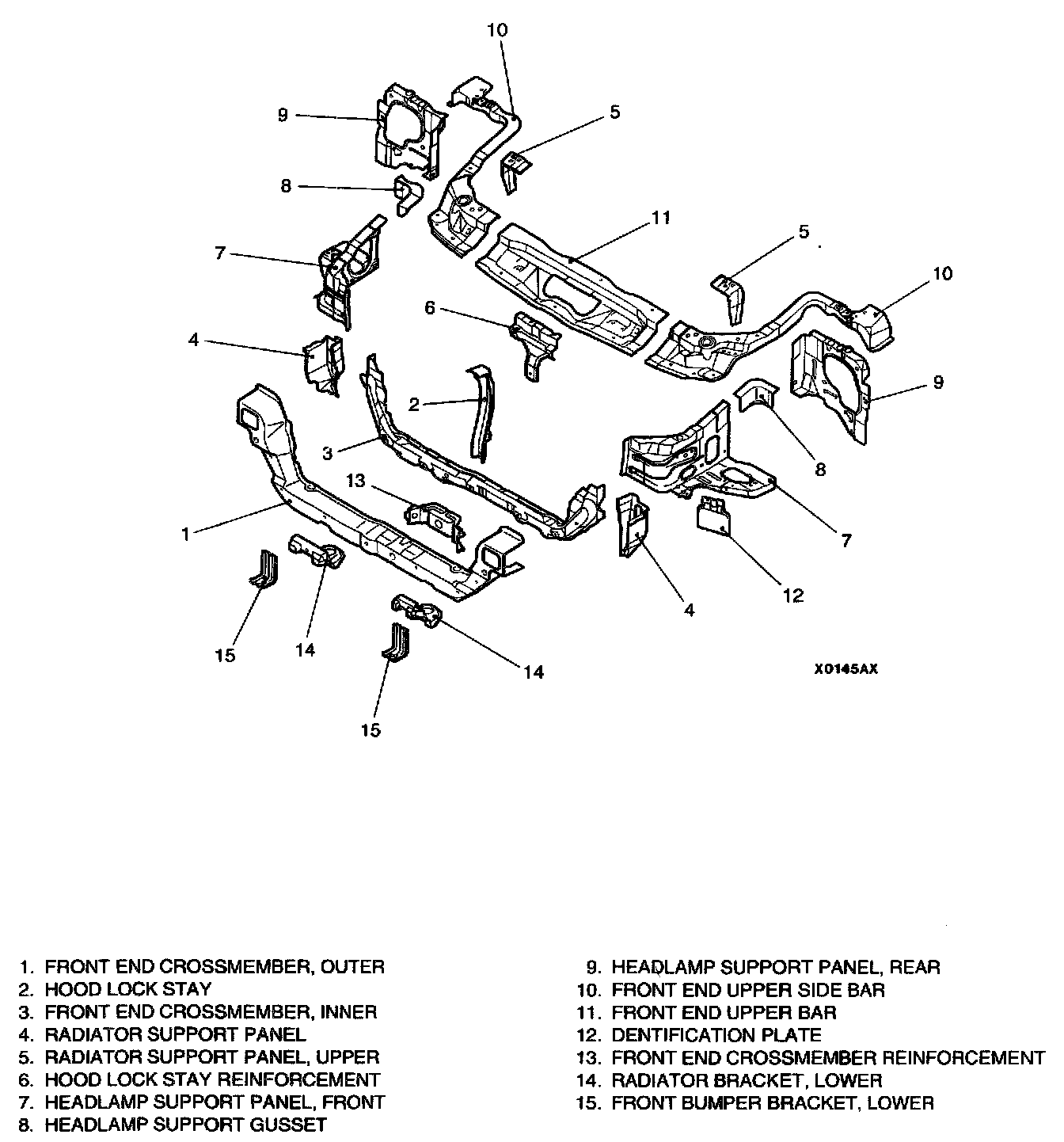

HEADLAMP SUPPORT




Large front end upper bars and headlamp support panel fronts with a separate structure and high rigidity have been adopted in the headlamp supports in order to improve the overall rigidity of the headlamp supports.
