Power Distribution System Part 2

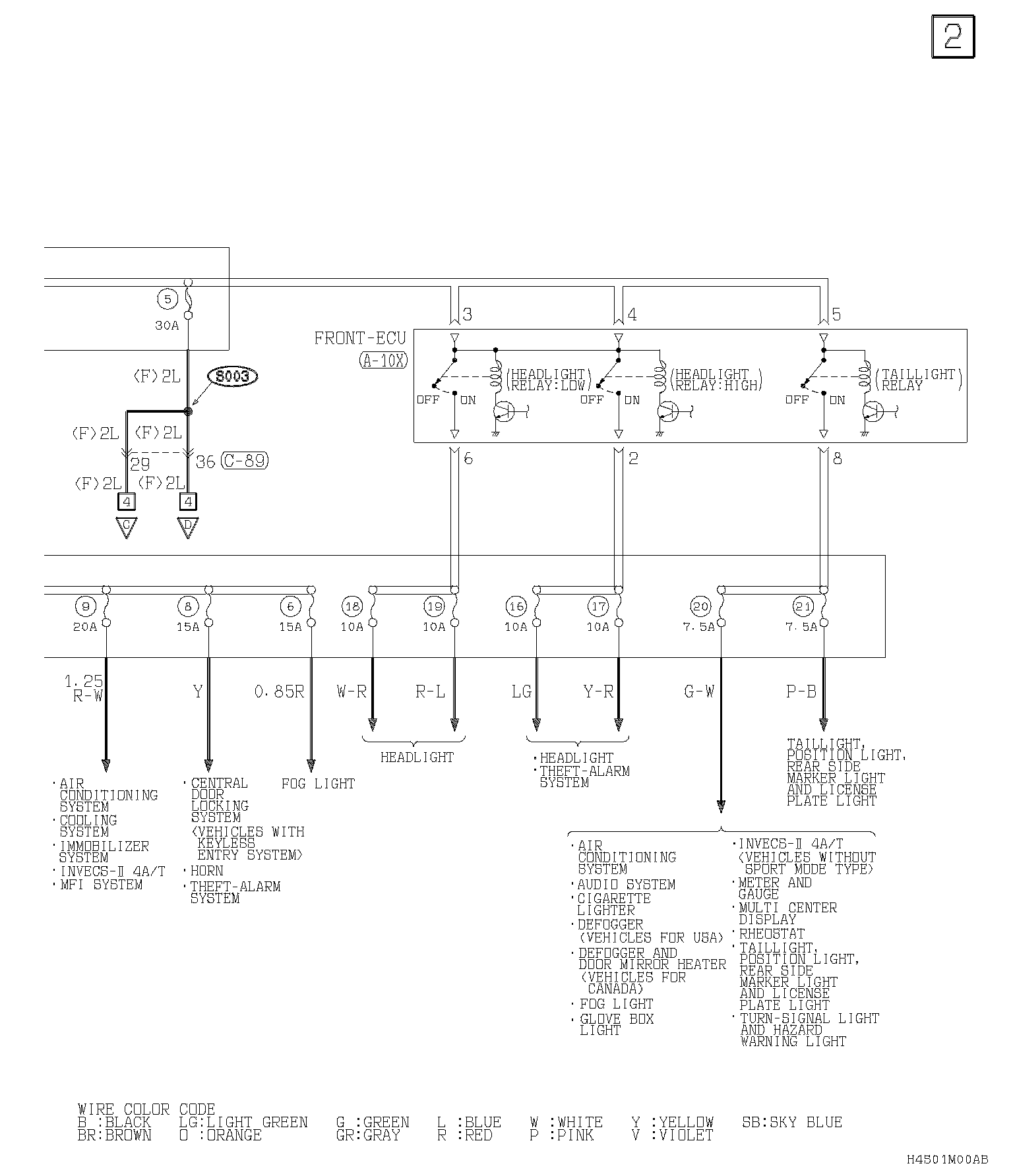

Power Distribution System Part 2:

Next Diagram Power Distribution System Part 3

Previous diagram Power Distribution System Part 1


Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Locations
