Eclipse

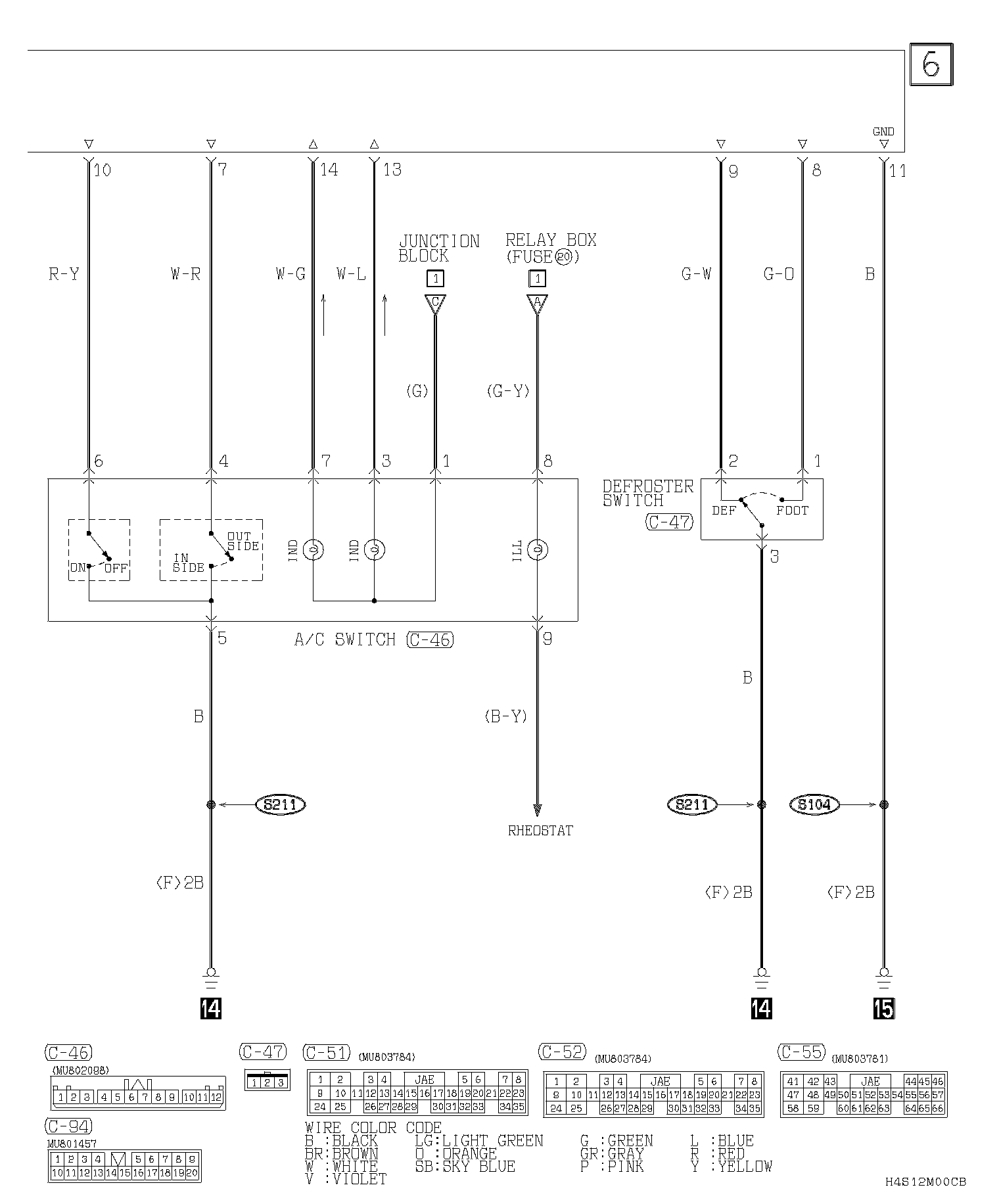

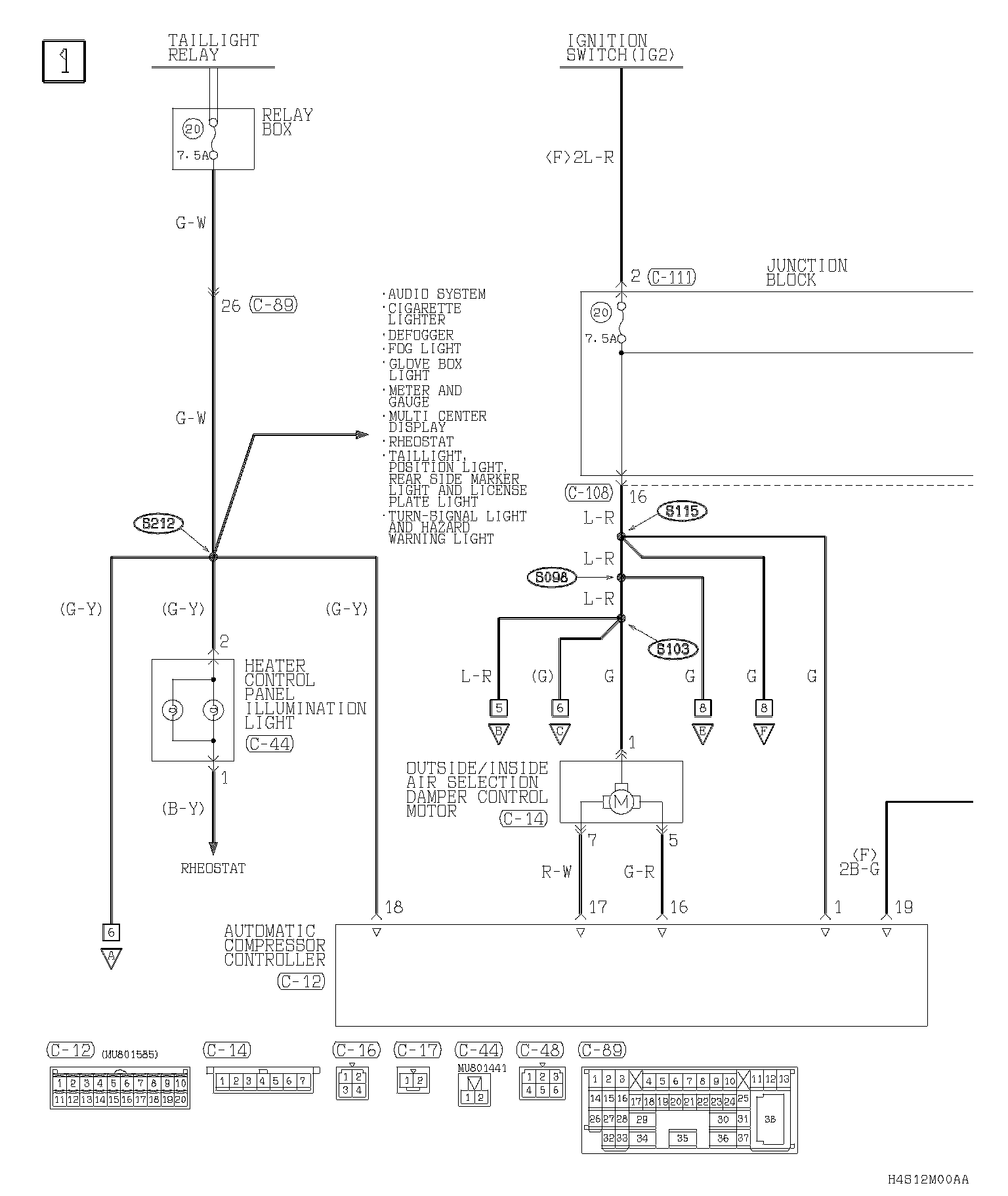

Air Conditioning System (Eclipse) Part 1:

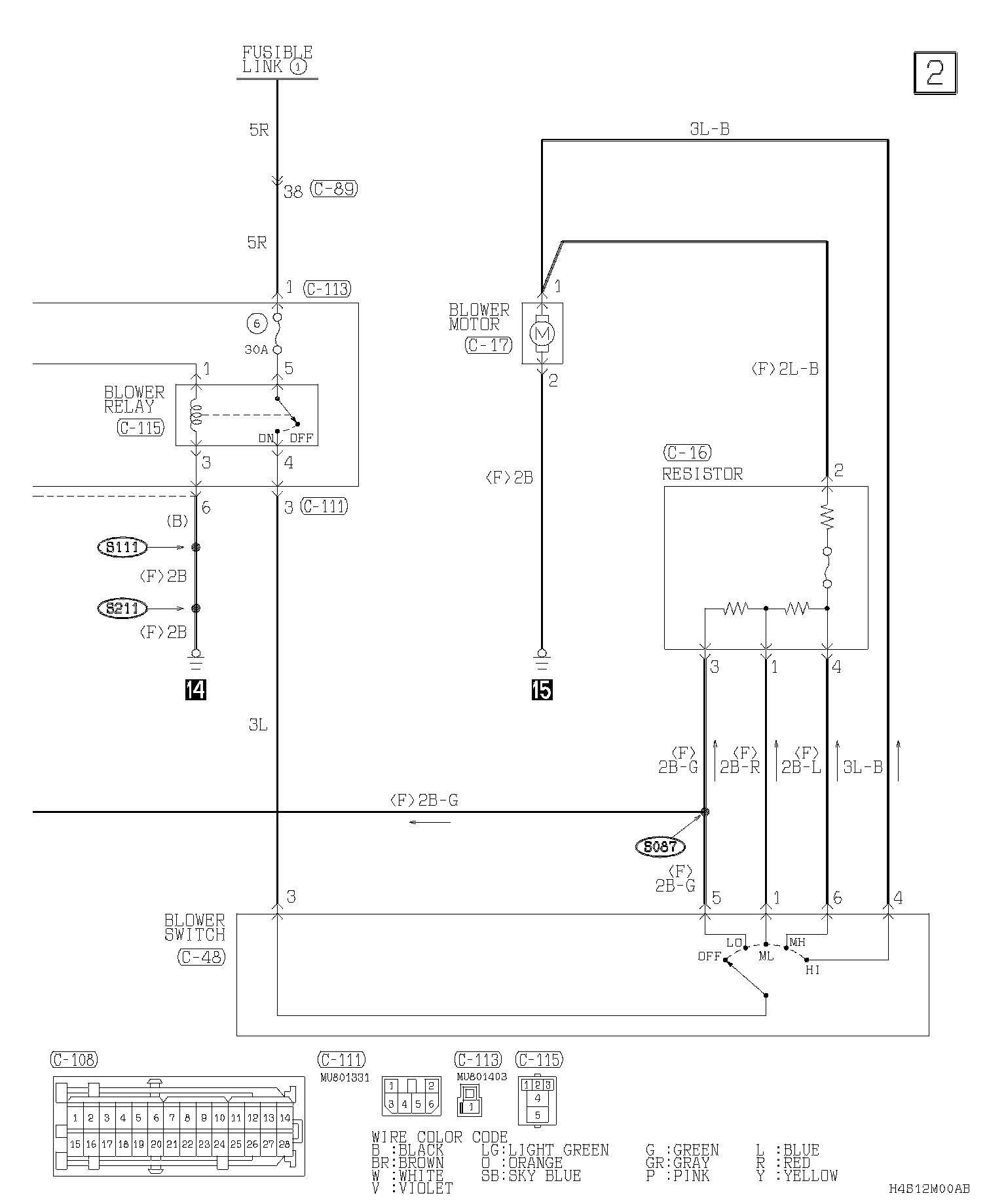

Air Conditioning System (Eclipse) Part 2:

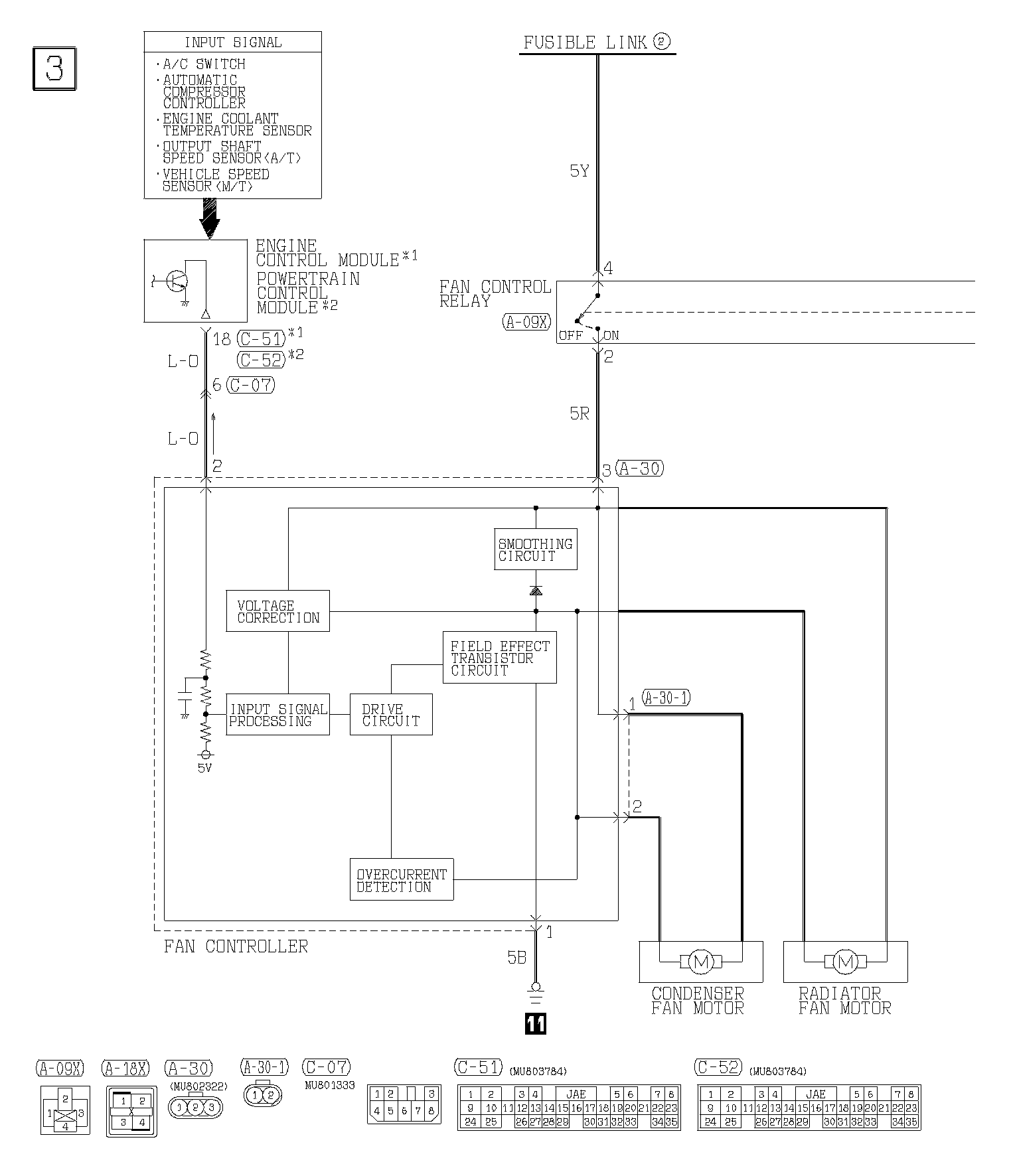

Air Conditioning System (Eclipse) Part 3:

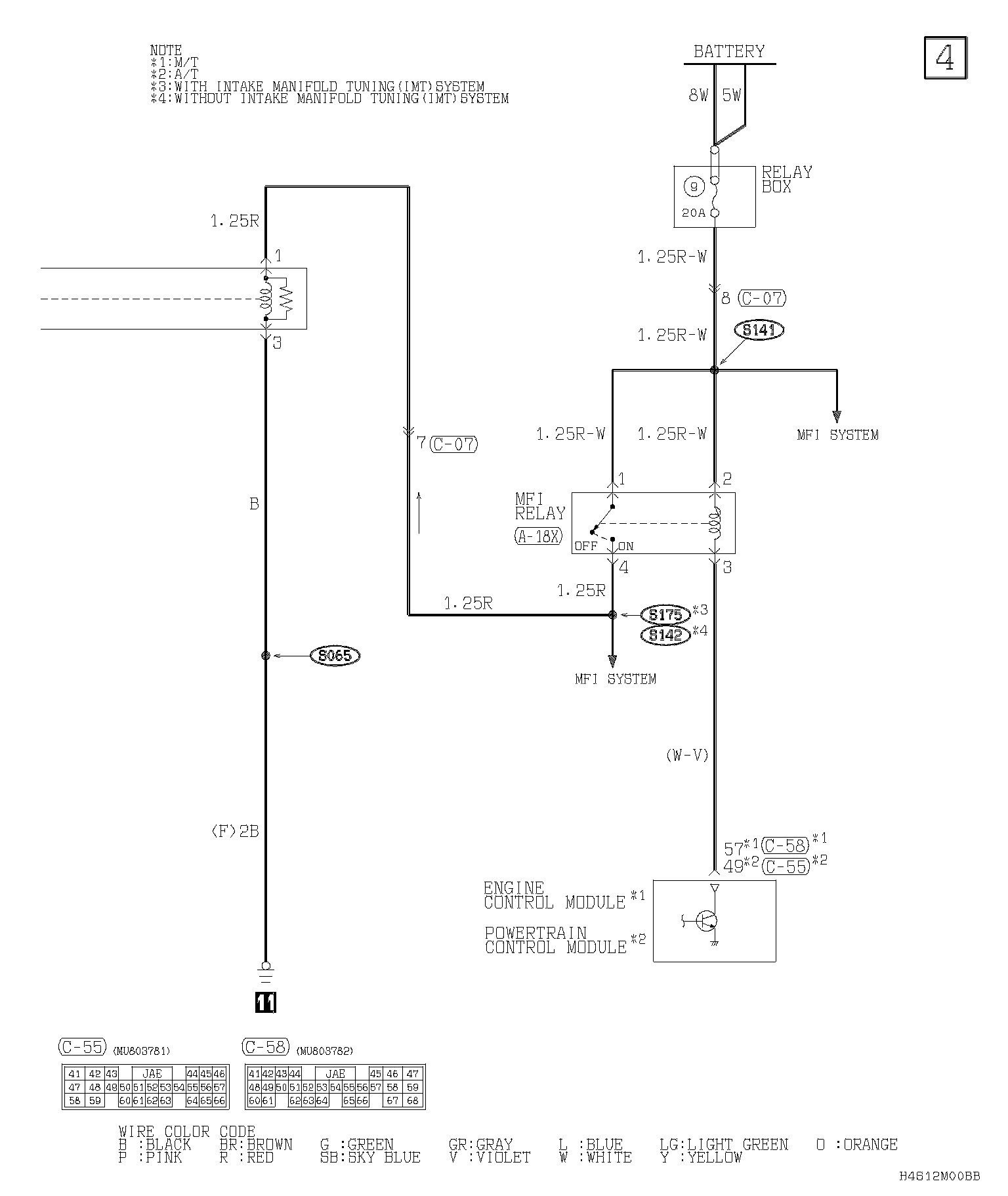

Air Conditioning System (Eclipse) Part 4:

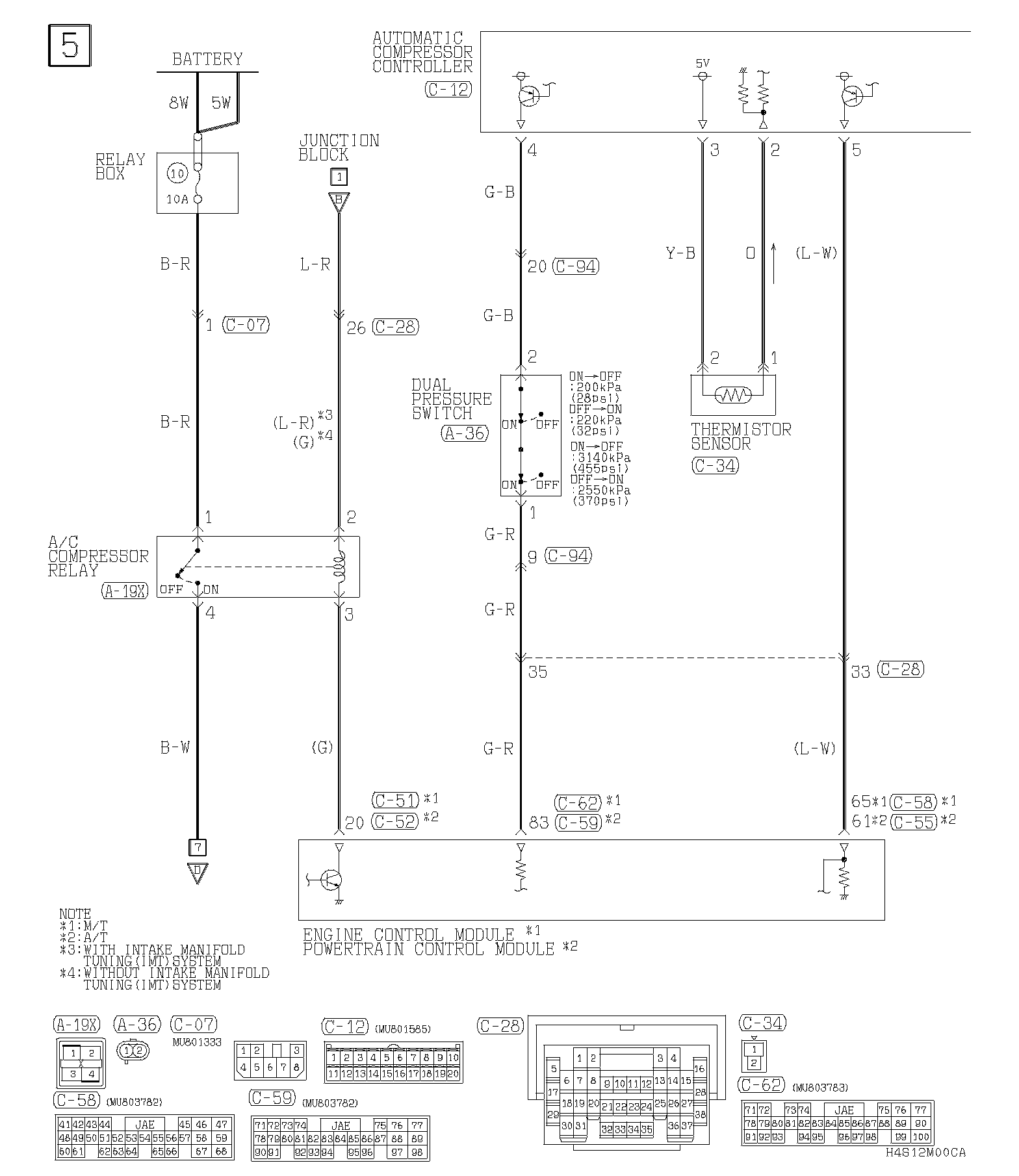

Air Conditioning System (Eclipse) Part 5:

Air Conditioning System (Eclipse) Part 6:

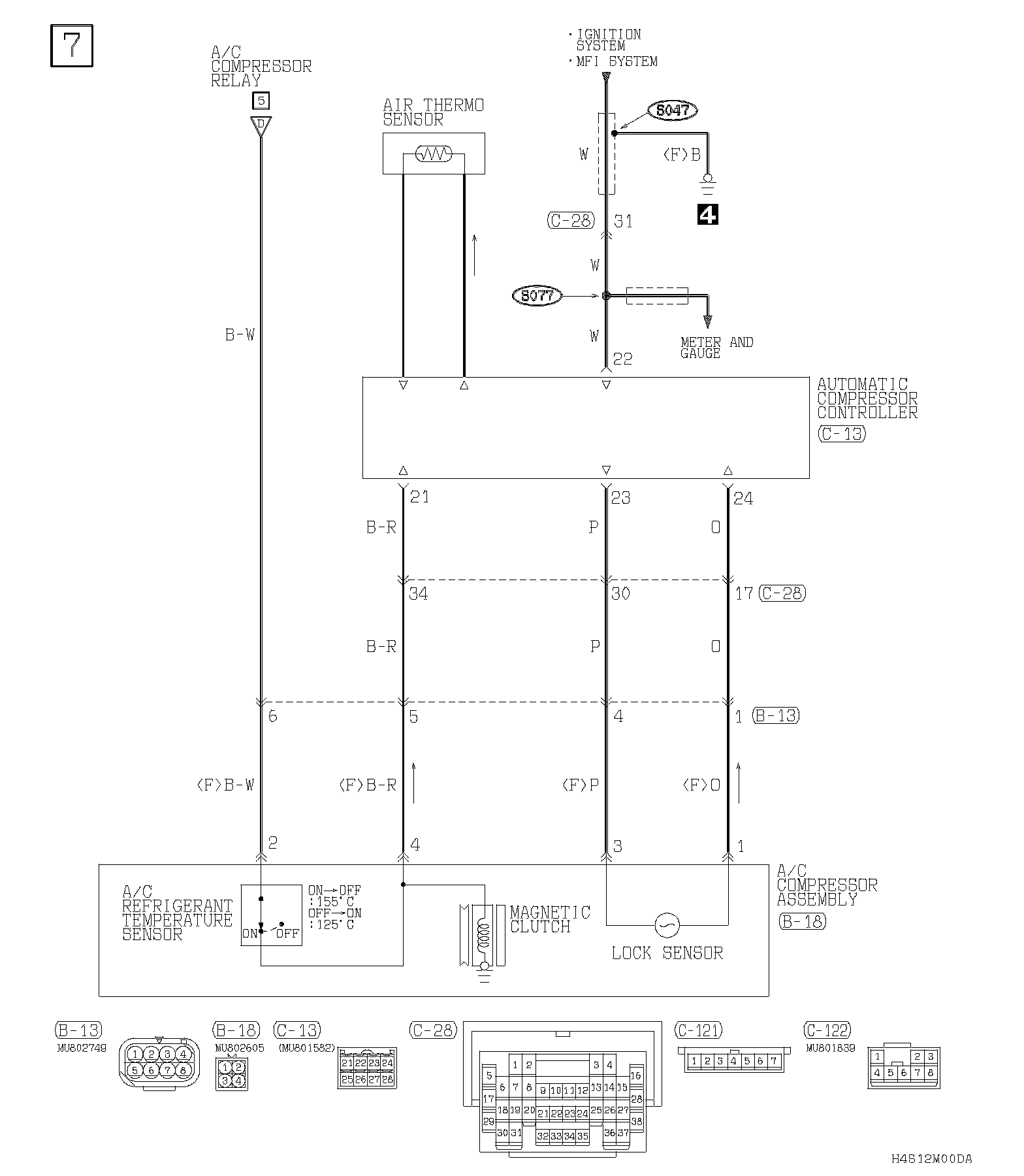

Air Conditioning System (Eclipse) Part 7:

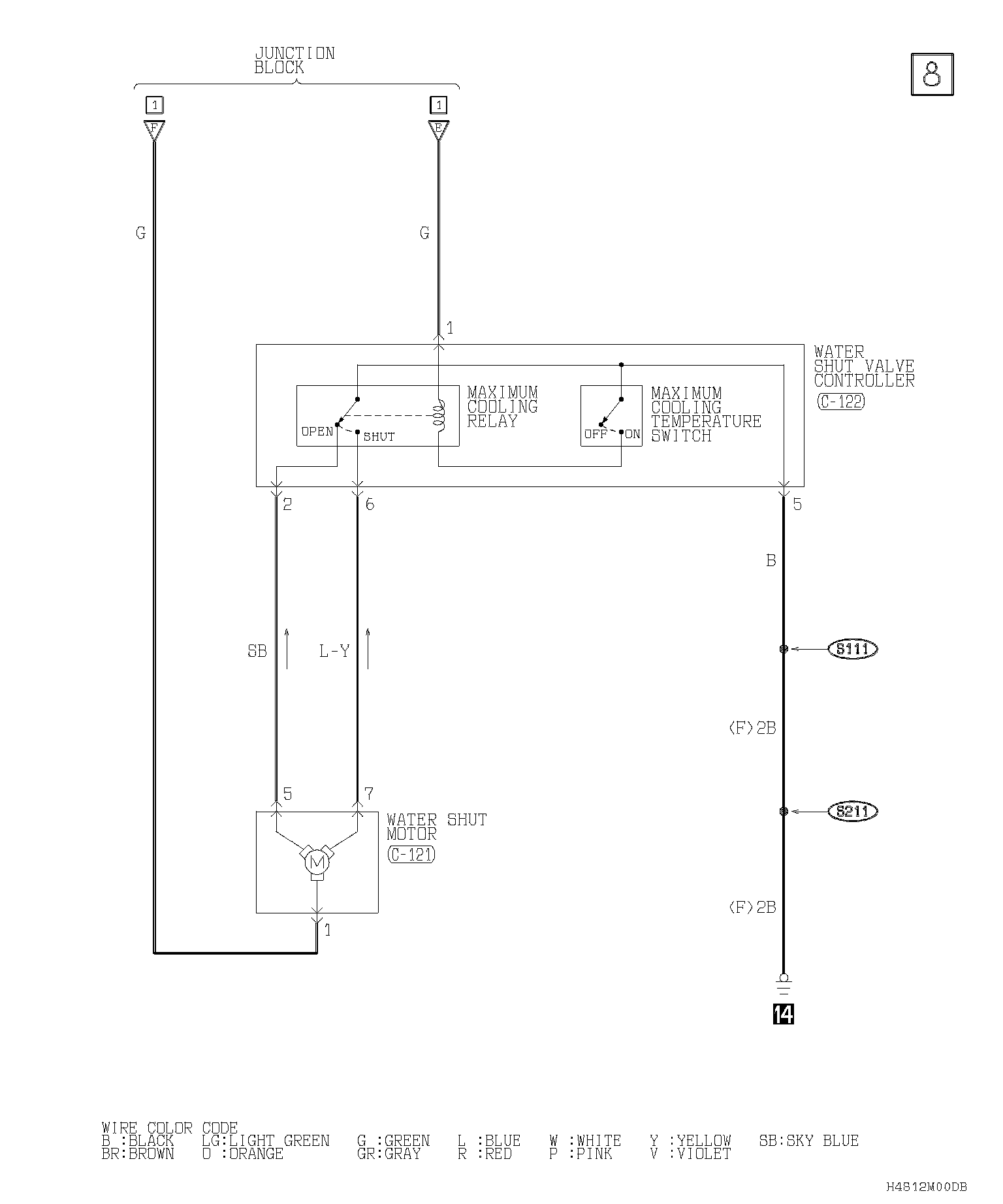

Air Conditioning System (Eclipse) Part 8:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
