Theft-Alarm System

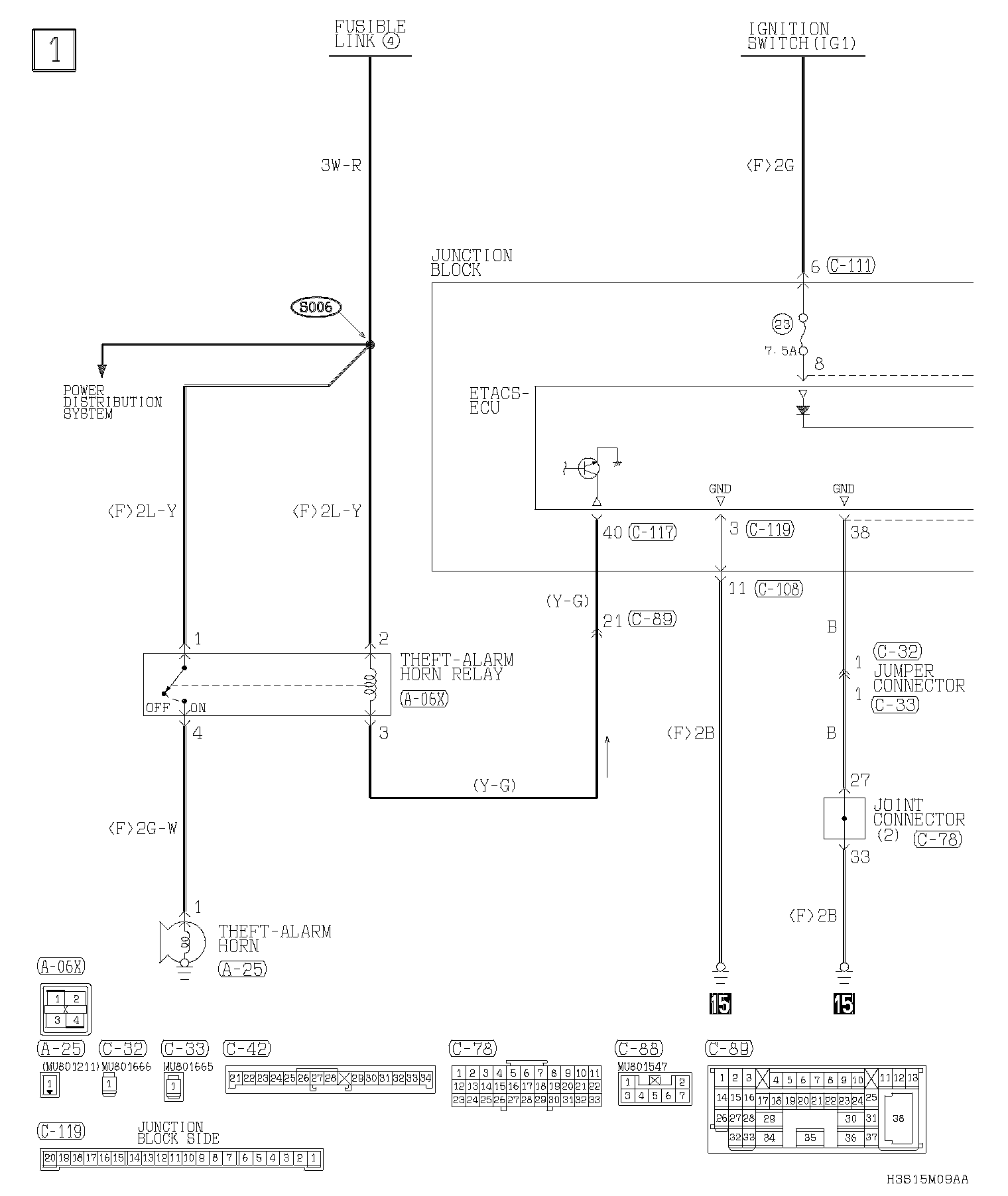

Theft-Alarm System Part 1:

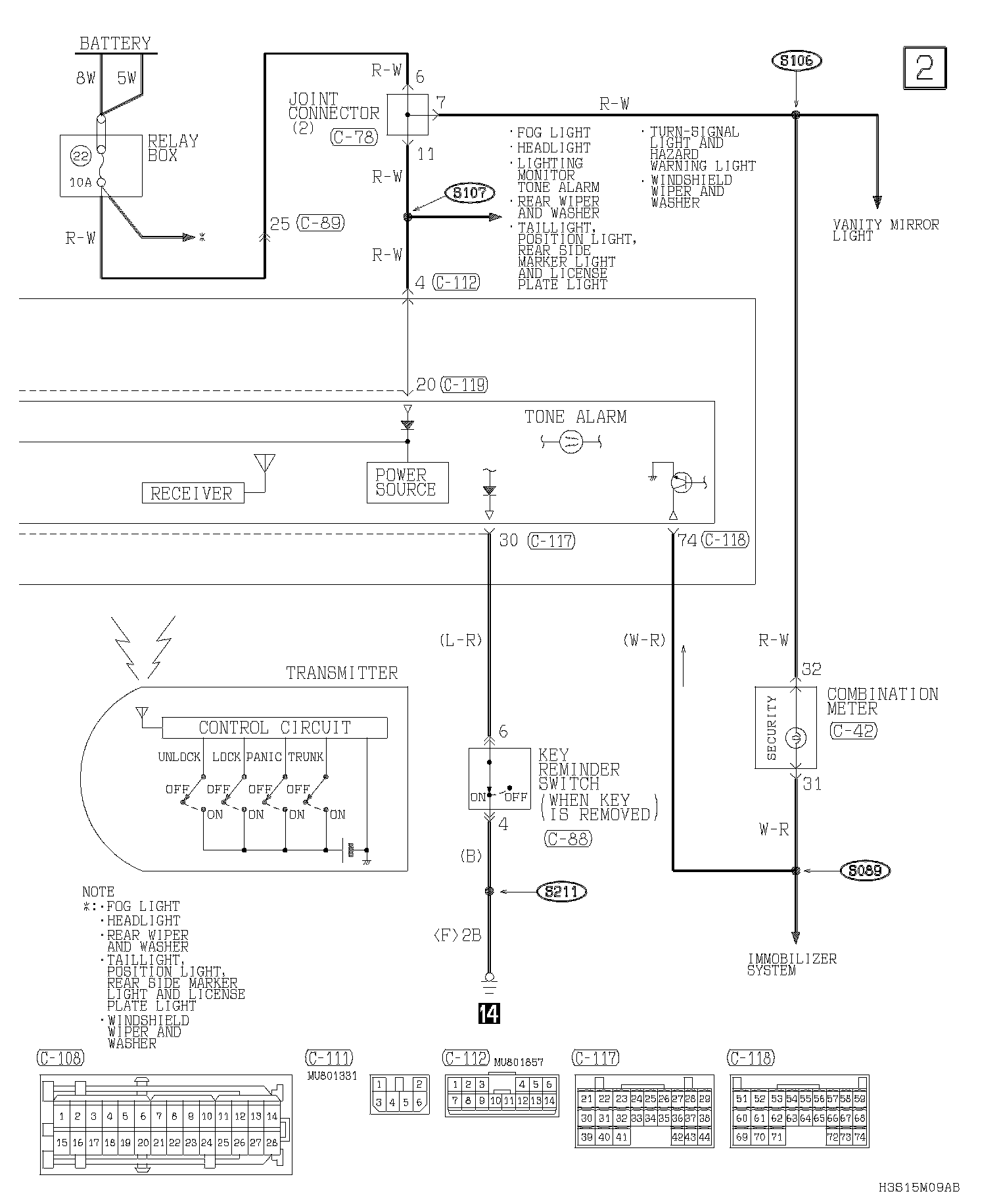

Theft-Alarm System Part 2:

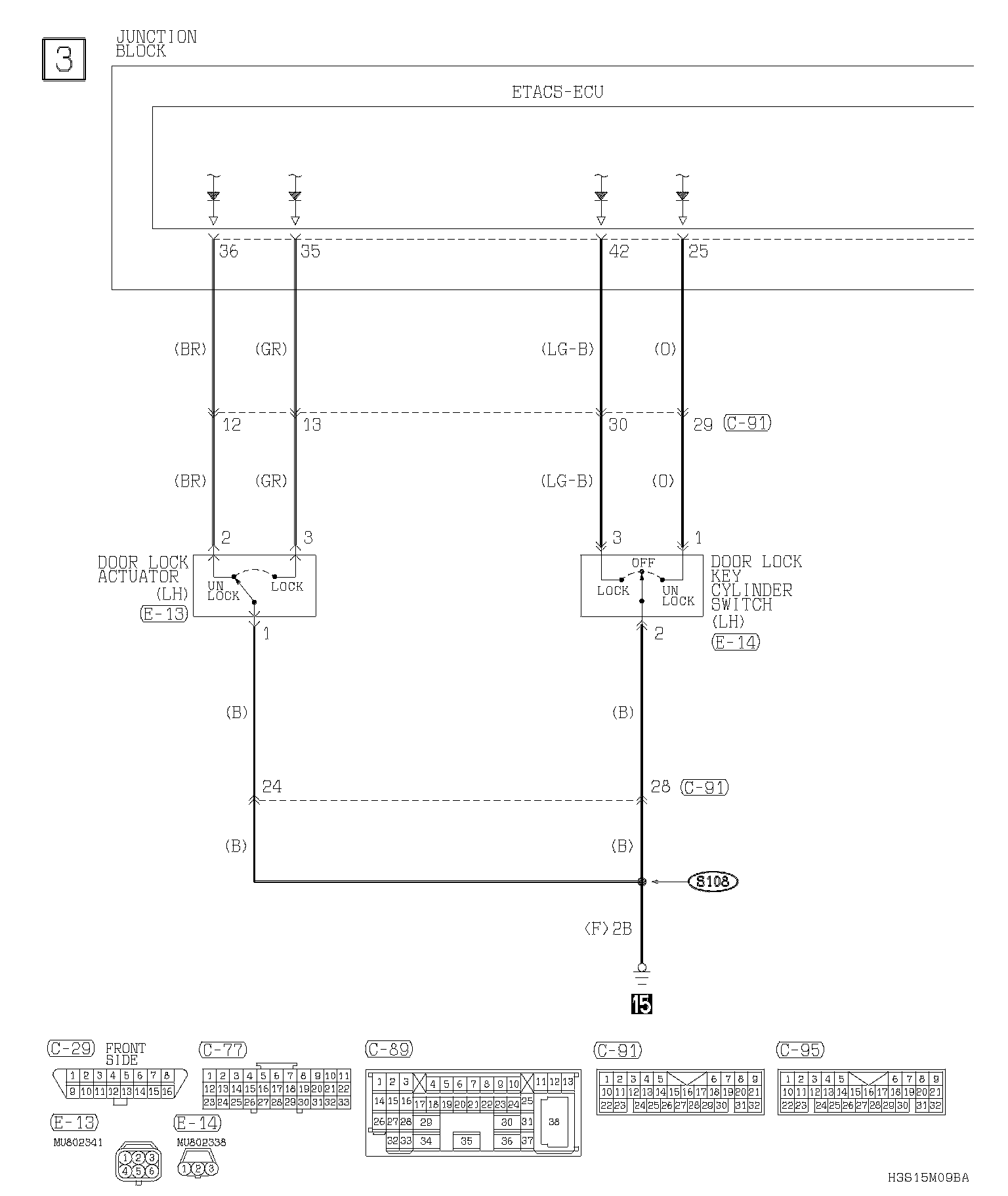

Theft-Alarm System Part 3:

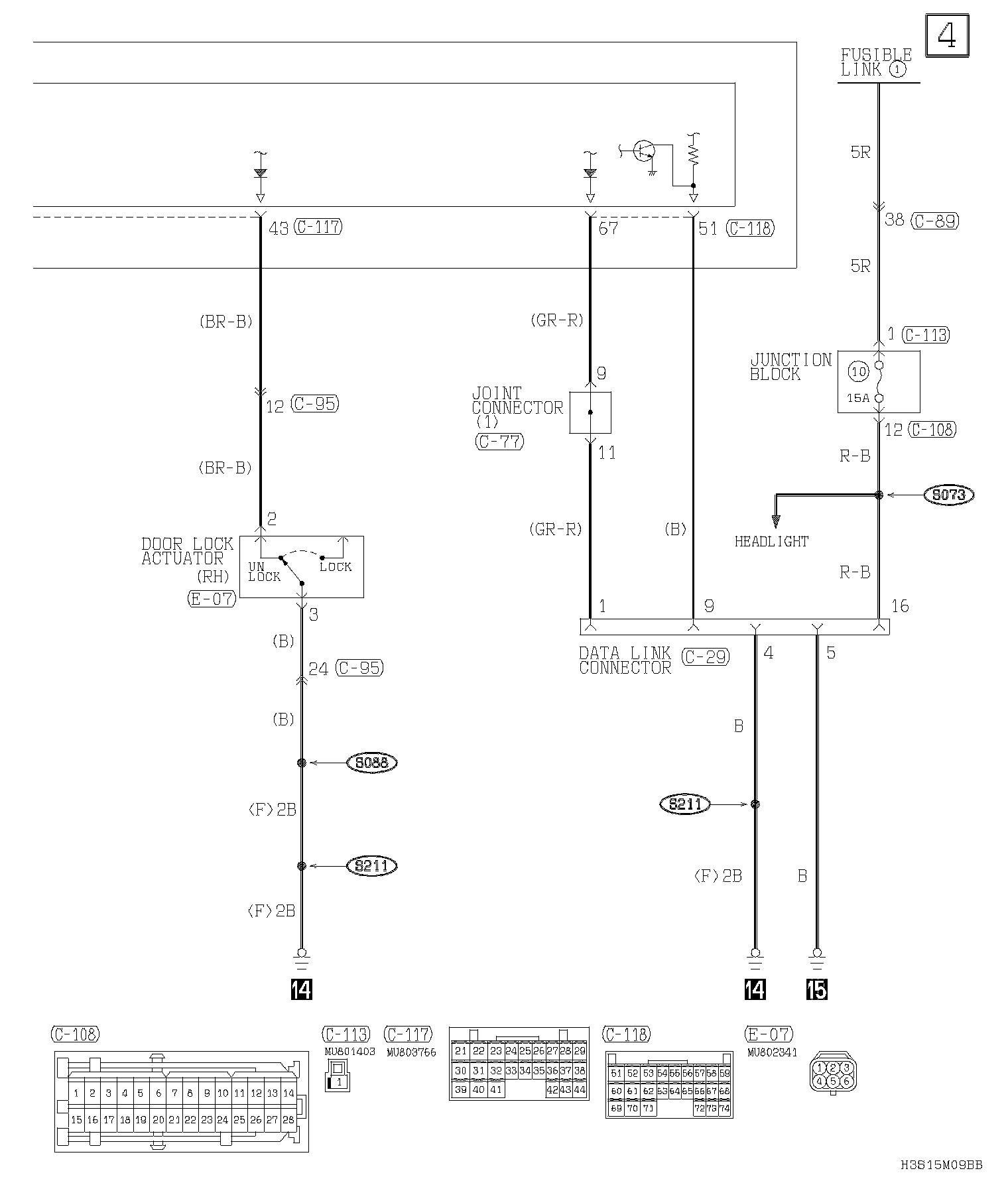

Theft-Alarm System Part 4:

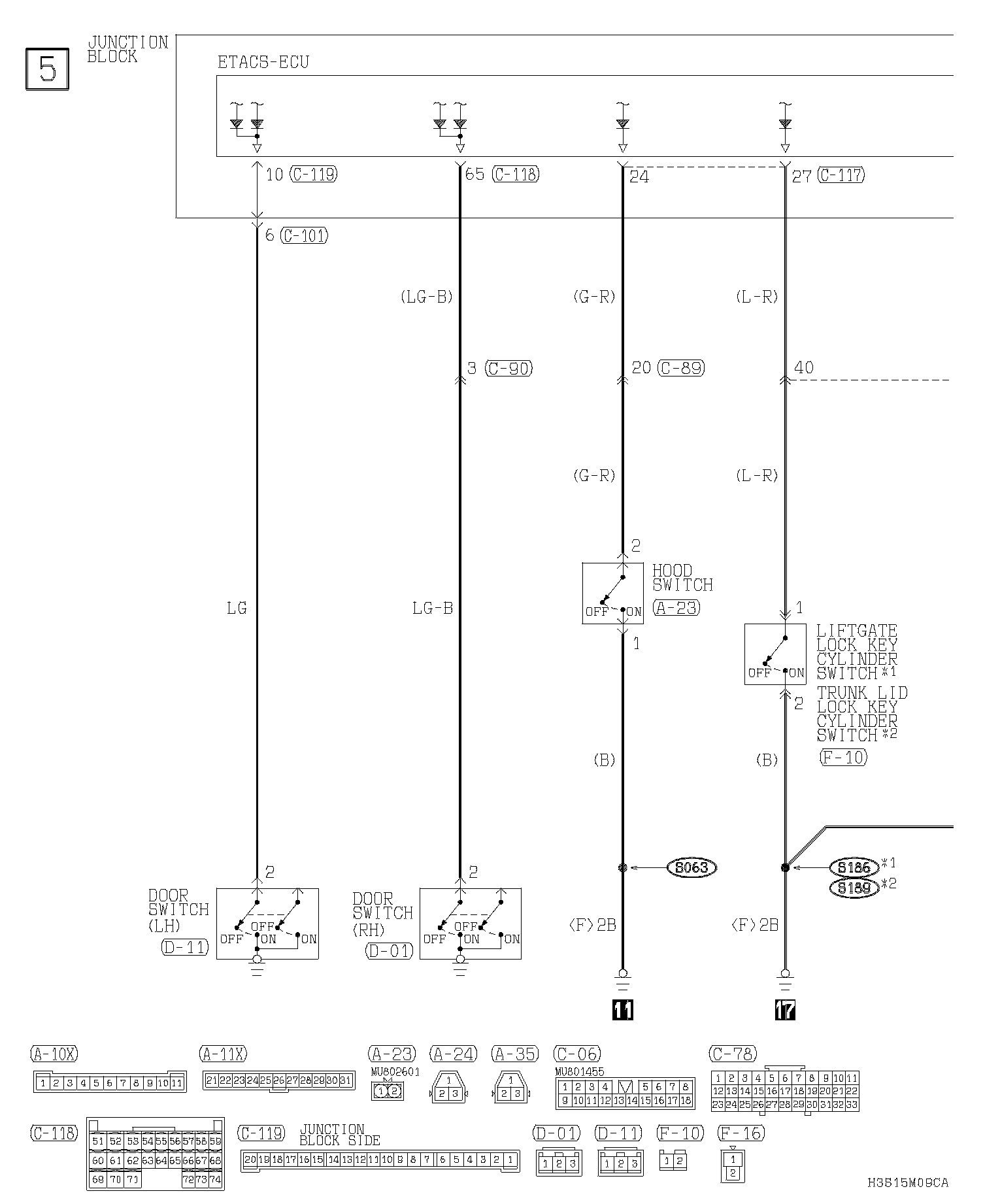

Theft-Alarm System Part 5:

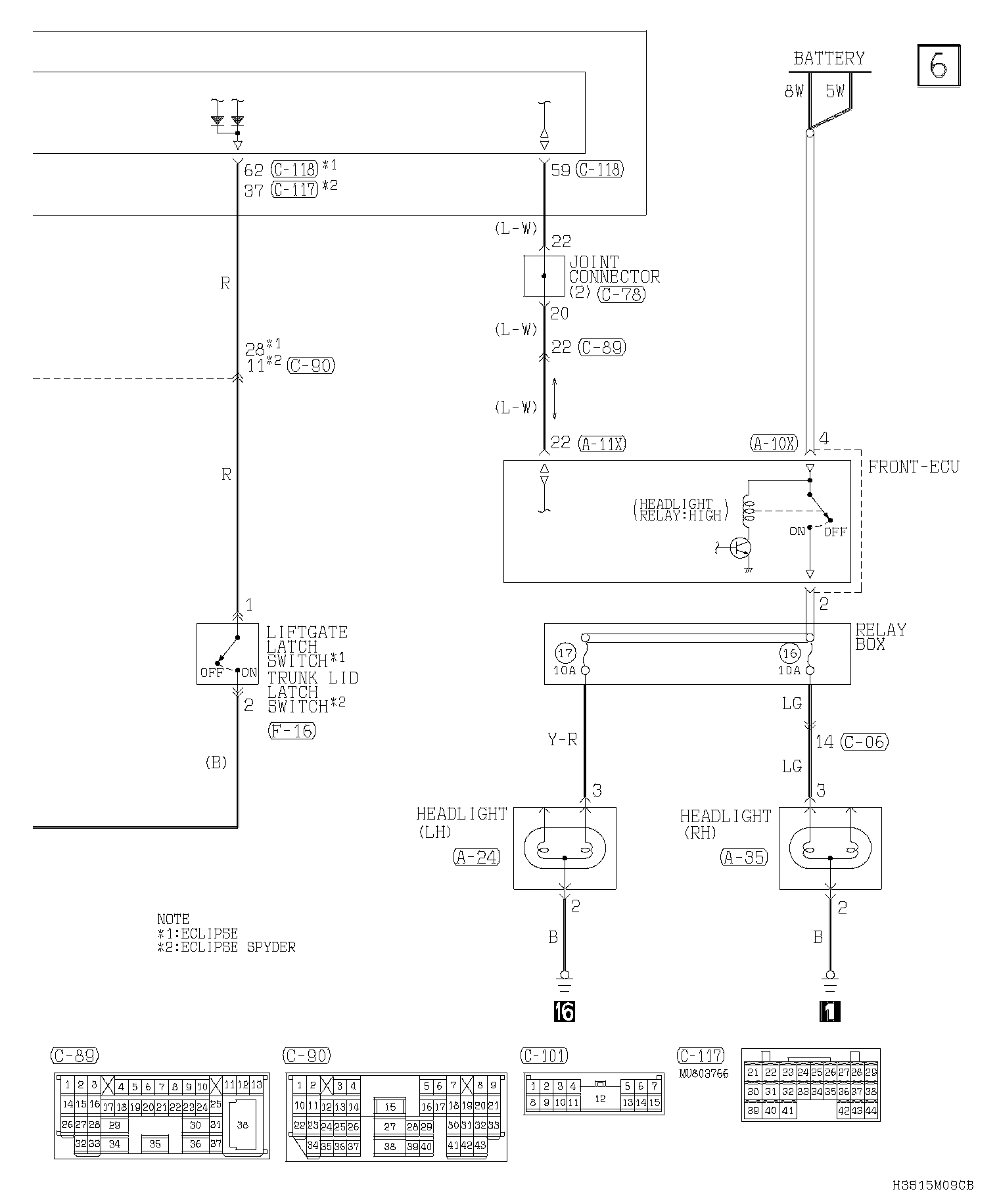

Theft-Alarm System Part 6:

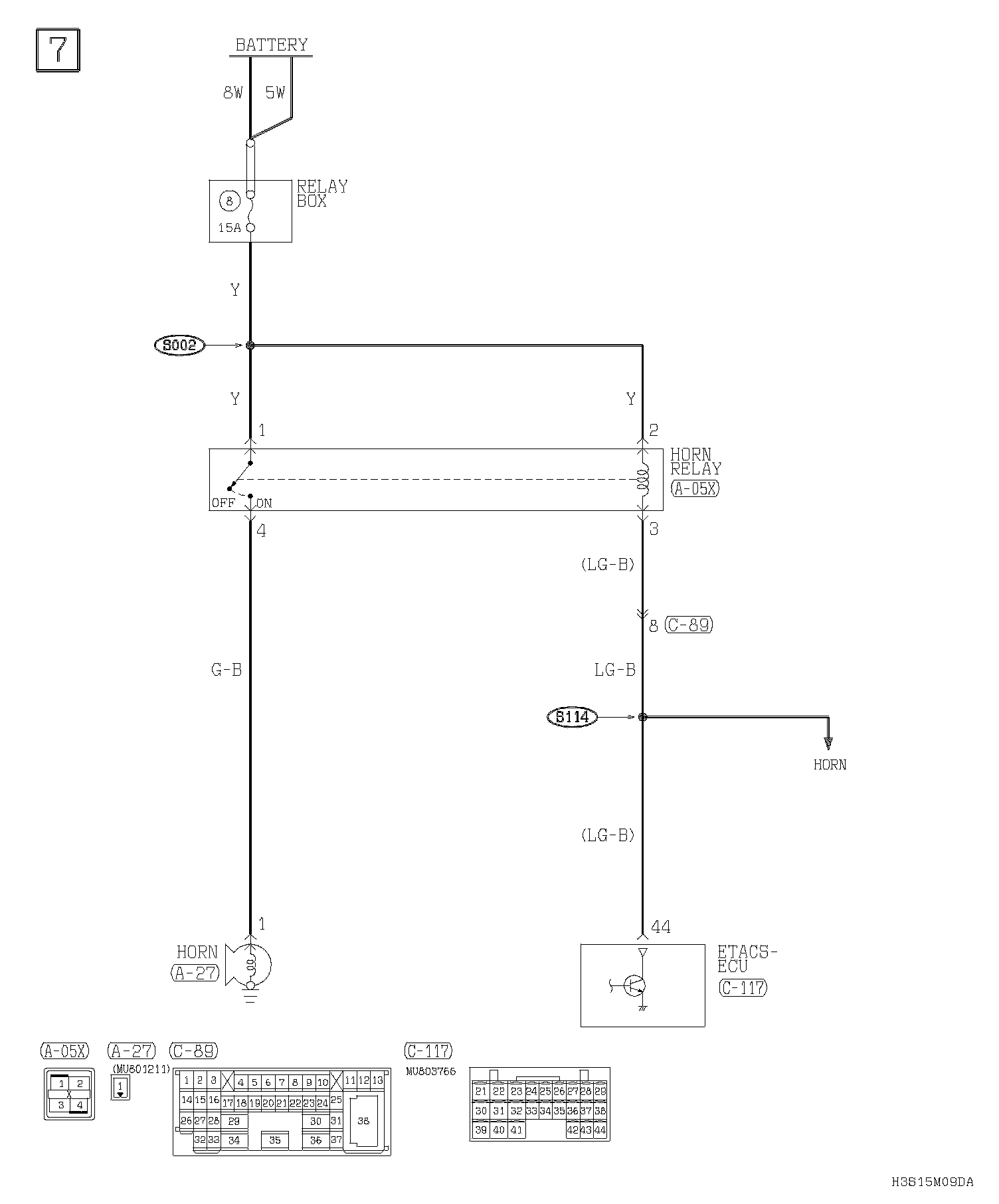

Theft-Alarm System Part 7:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
