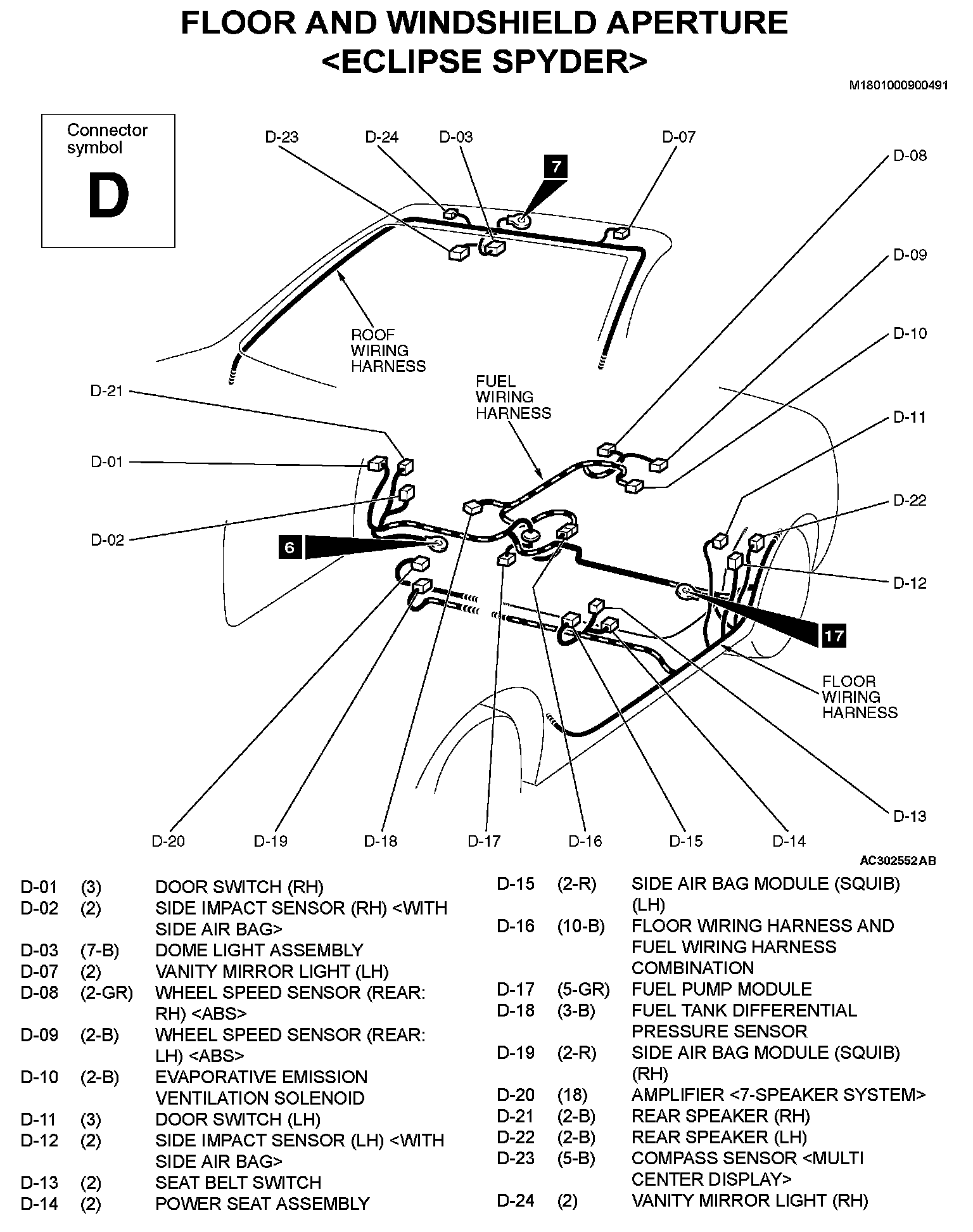

D Connectors - Floor and Windshield Aperture
D Connectors - Floor and Windshield Aperture
D-01 To D-24:
