C Connectors - Dash Panel
>>
C-41 to C-79, C-121 to C-122
C-41 to C-79, C-121 to C-122

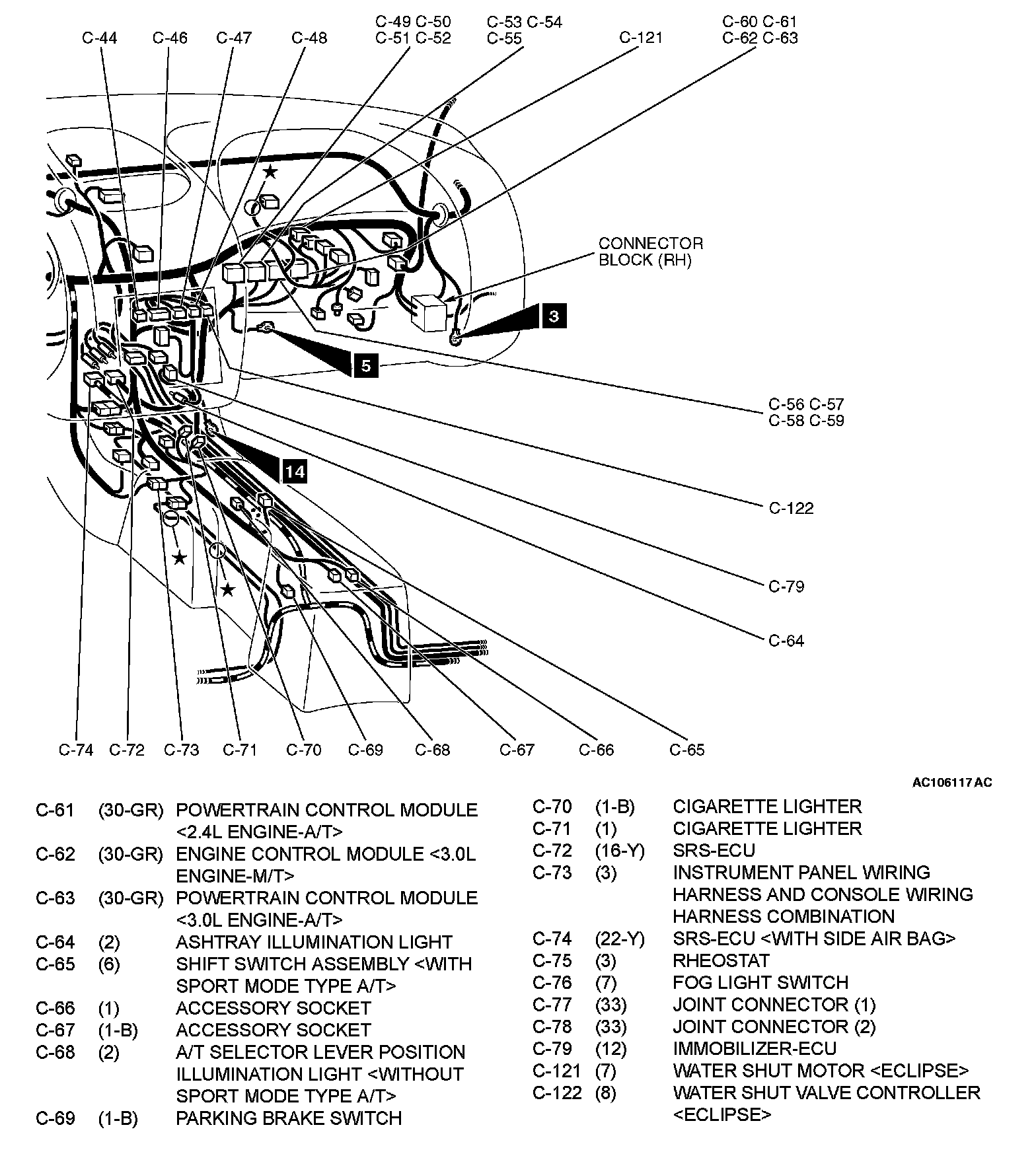

C-41 Thru C-79, C-121 Thru C-122 (Part 1):

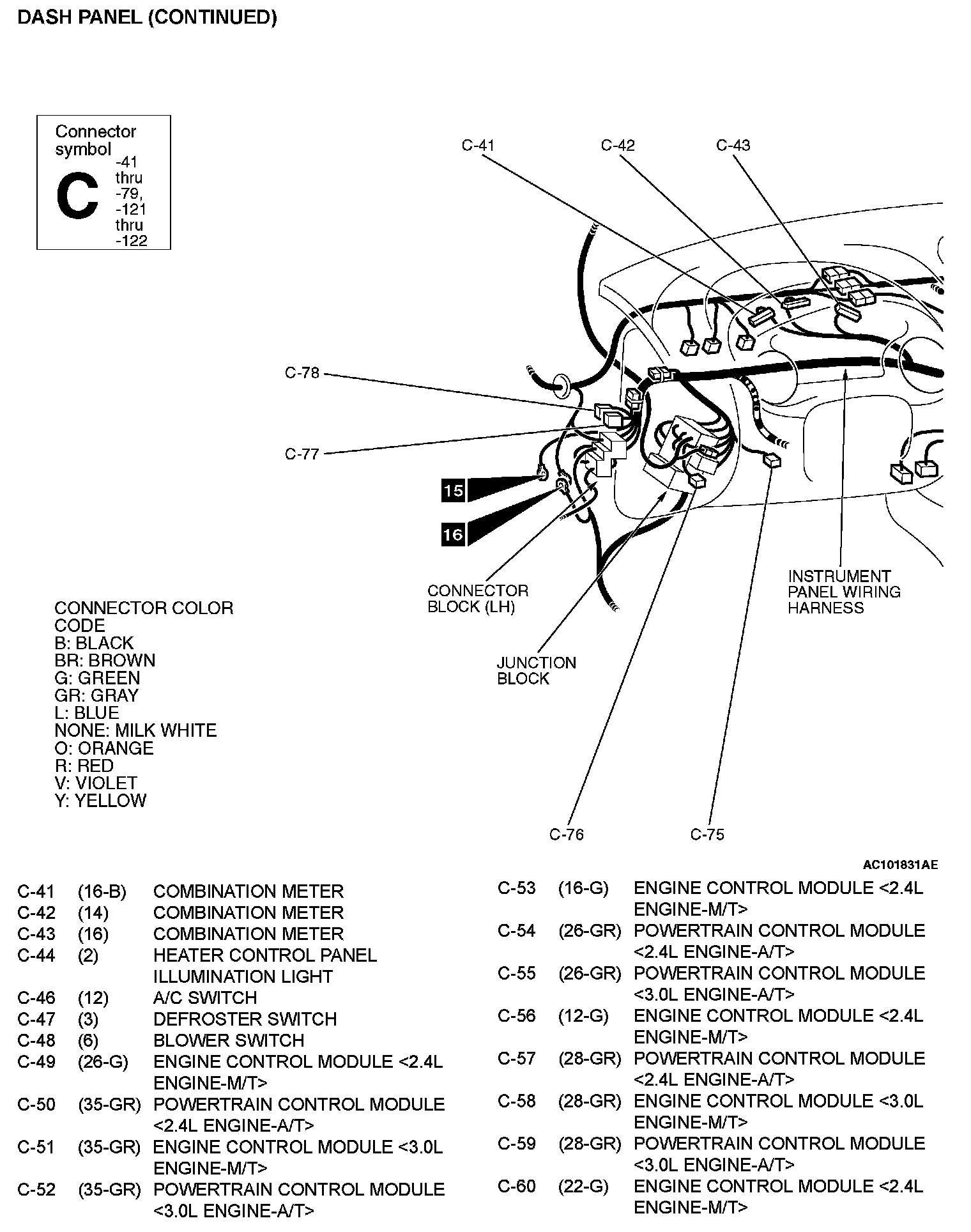

C-41 Thru C-79, C-121 Thru C-122 (Part 2):
