Home >> Mitsubishi >> 2004 >> Eclipse V6-3.0L SOHC >> Repair and Diagnosis >> Diagrams >> Connectors >> B Connectors - Engine and Transaxle >> Engine (Without Intake Manifold Tuning (IMT) System) >> B-31 to B-48

B-31 to B-48

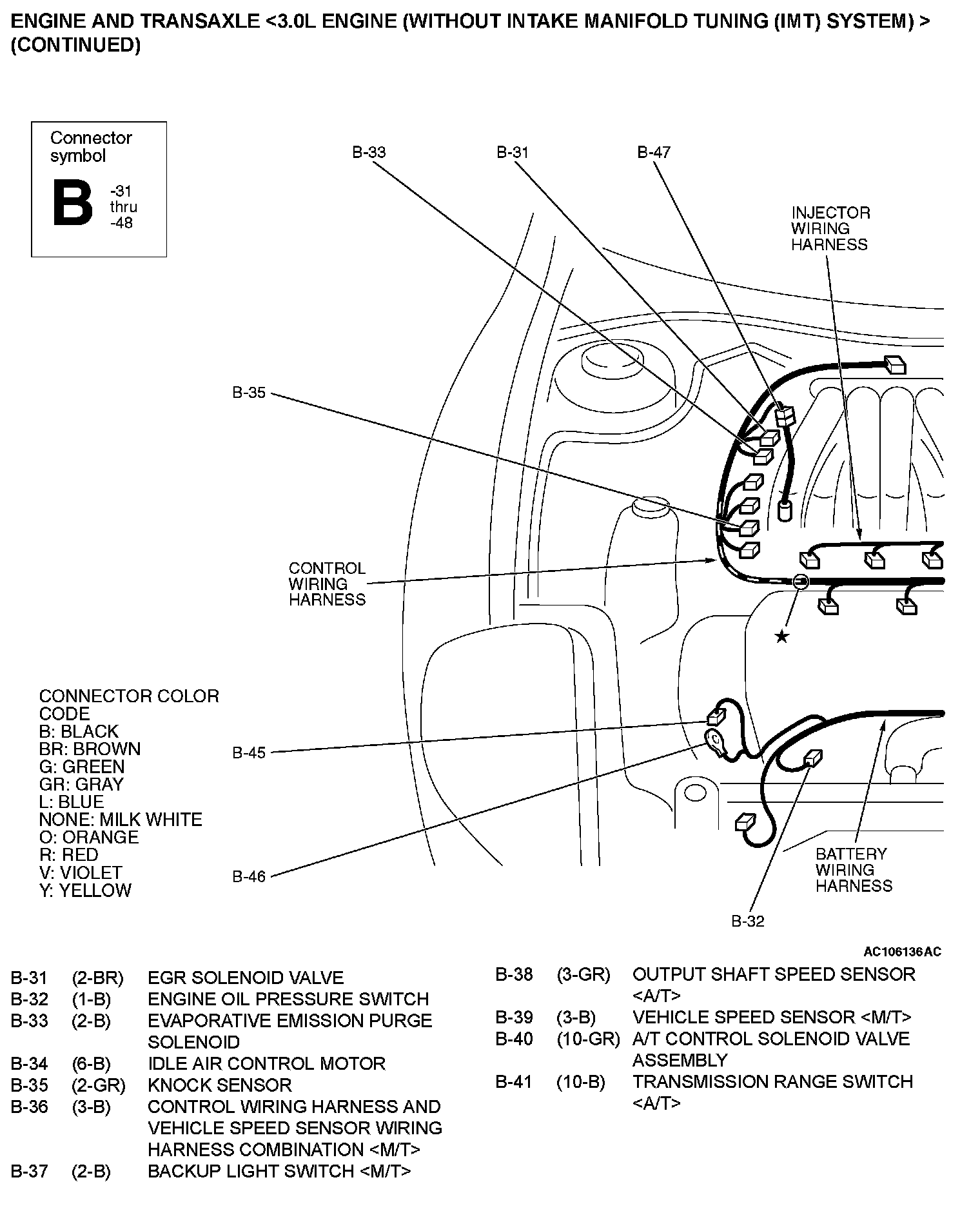

B-31 Thru B-48 (Part 1):

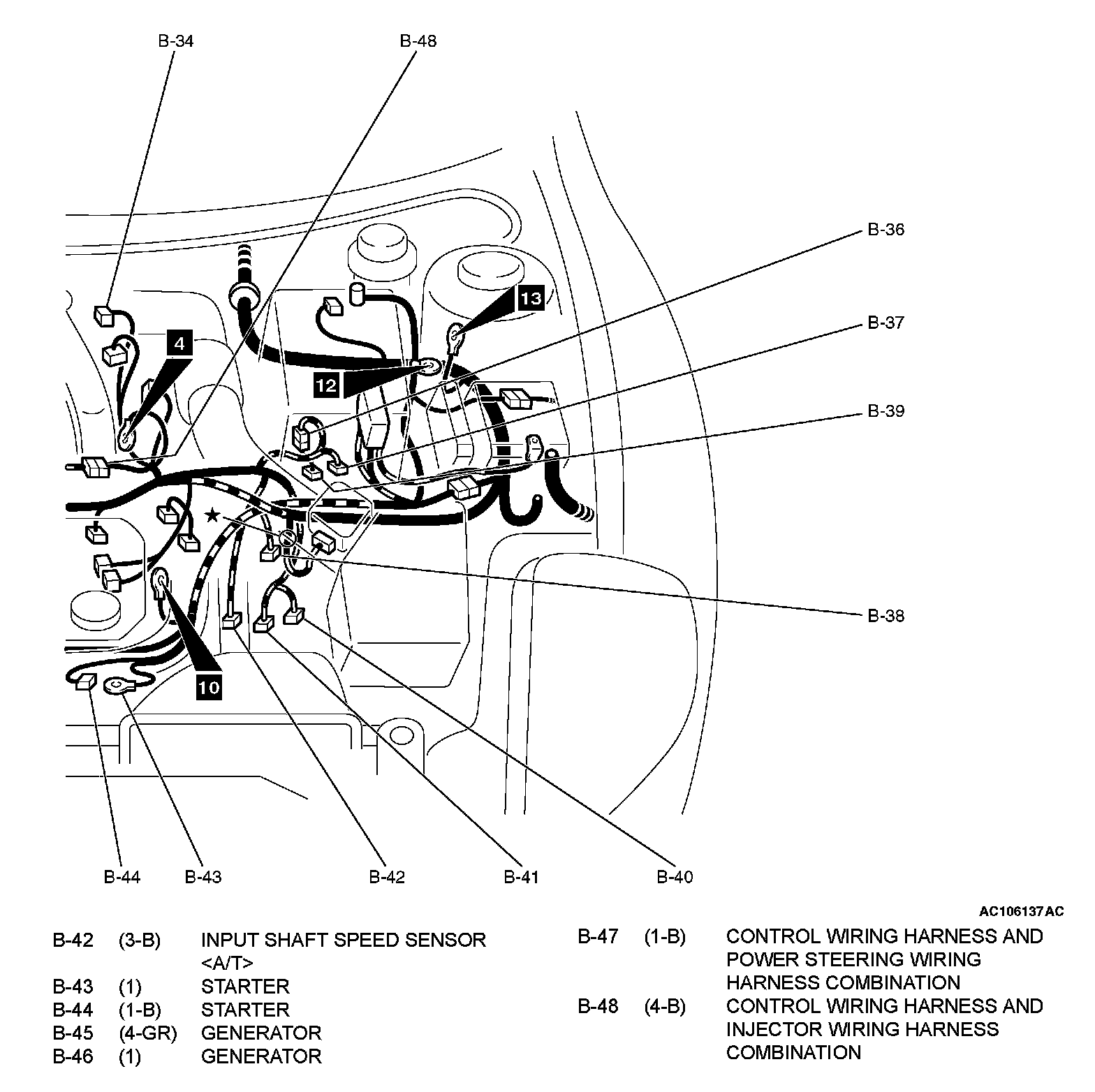

B-31 Thru B-48 (Part 2):
