Pinout Values and Diagnostic Parameters

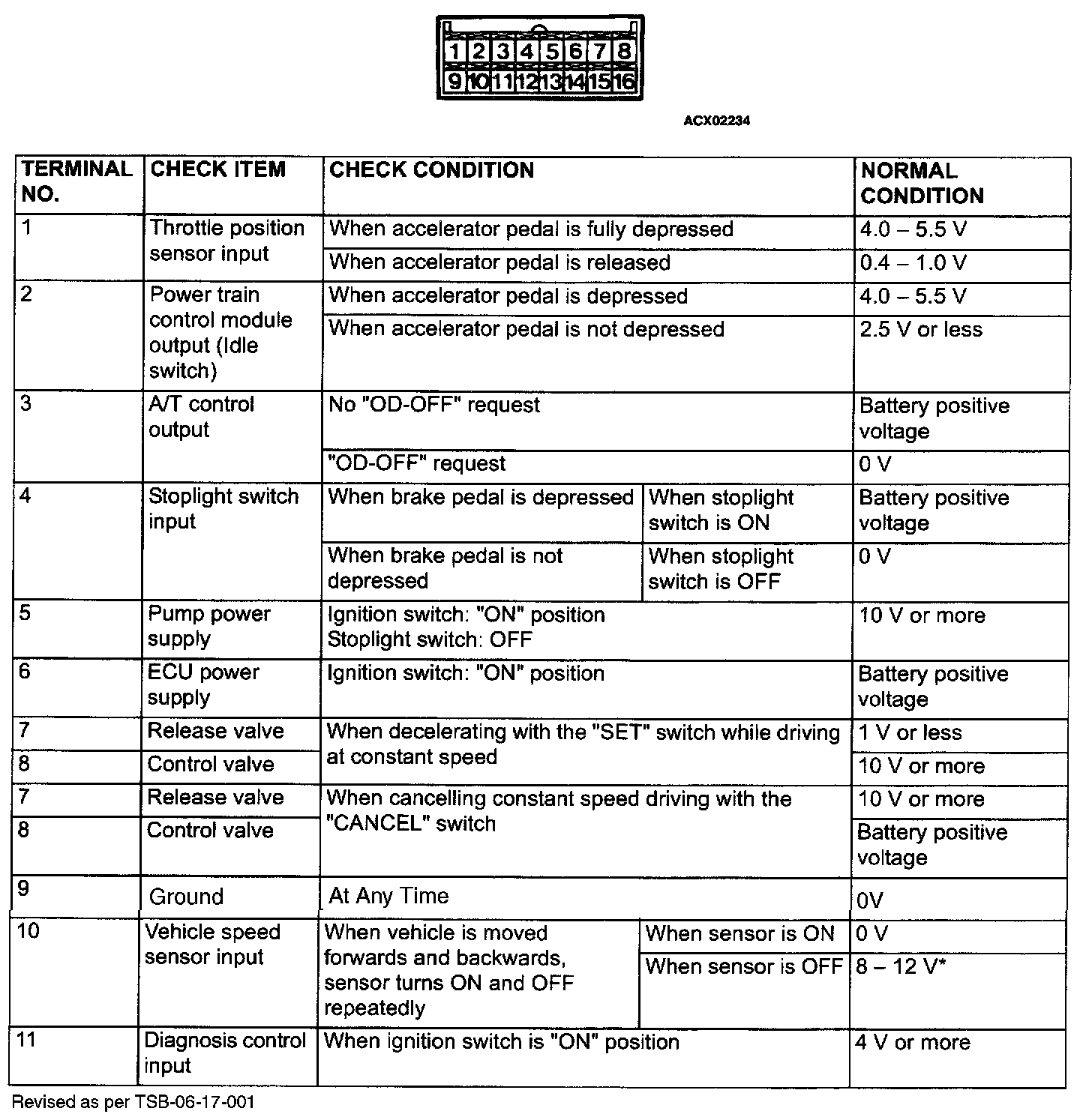

Check Auto-cruise Control - ECU Terminals Part 1:

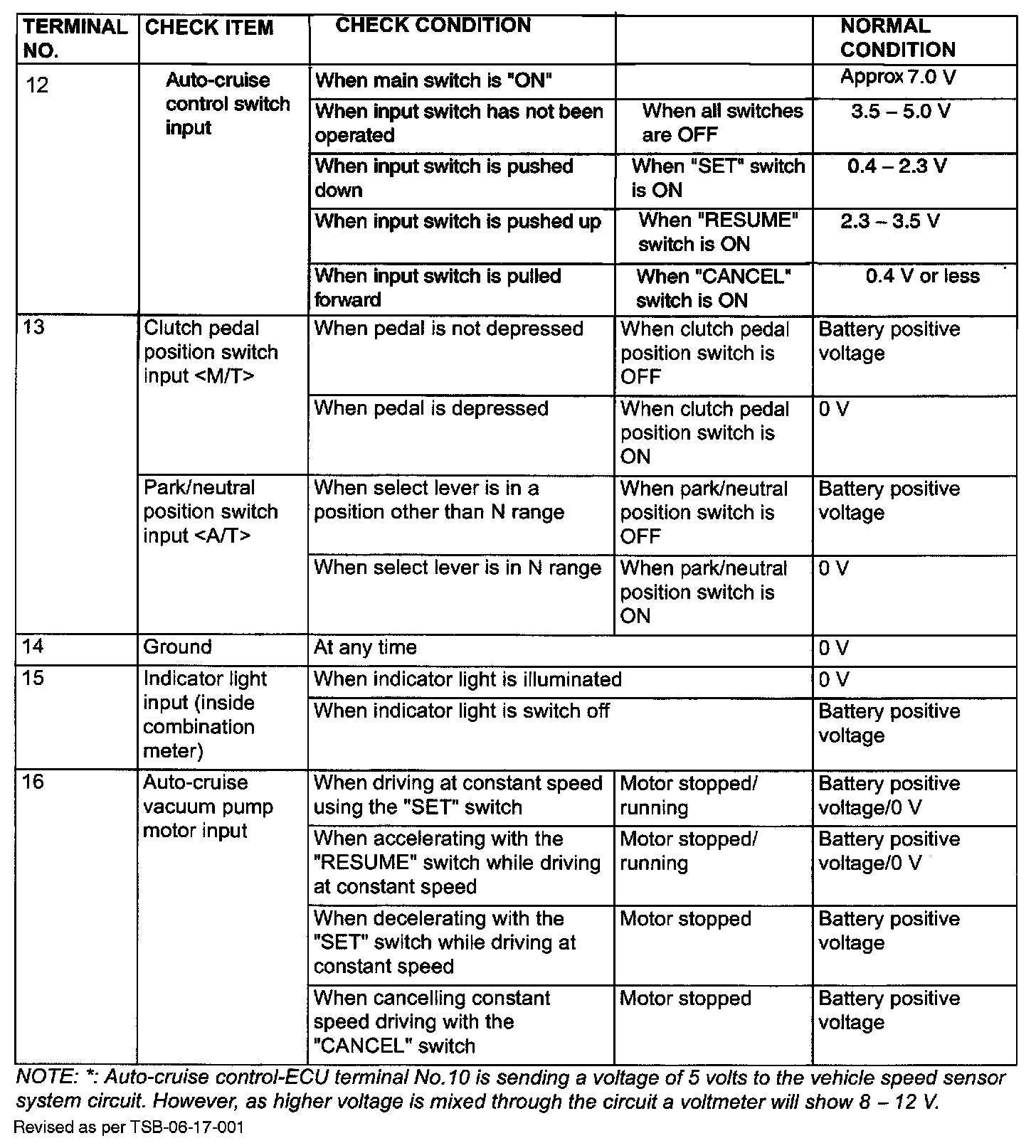

Check Auto-cruise Control - ECU Terminals Part 2:
