Eclipse V6-3.0L SOHC
>>
Repair and Diagnosis
>>
Cruise Control
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Auto-Cruise Control Switch Check
Auto-Cruise Control Switch Check
AUTO-CRUISE CONTROL SWITCH CHECK
1.
Turn the
ignition switch
to the "ON" position.
2.

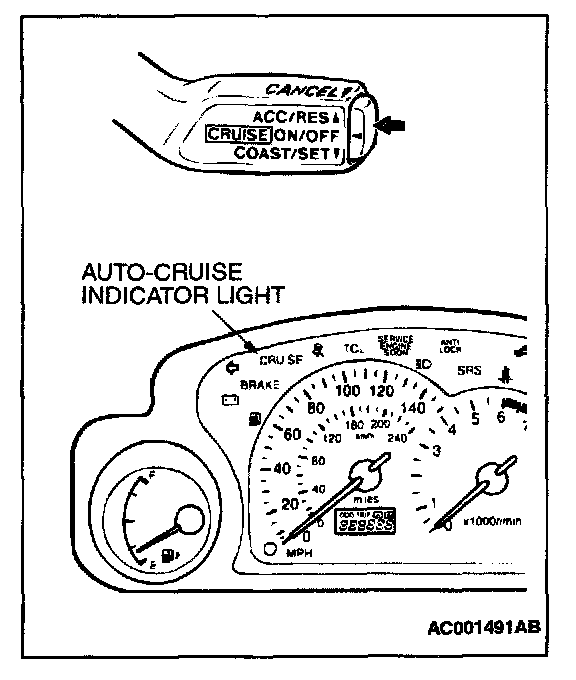

Check that the indicator light within the combination meter illuminates when the main switch is switched "ON."
