Drum Brake System: Service and Repair
REMOVAL AND INSTALLATION
REMOVAL SERVICE POINT

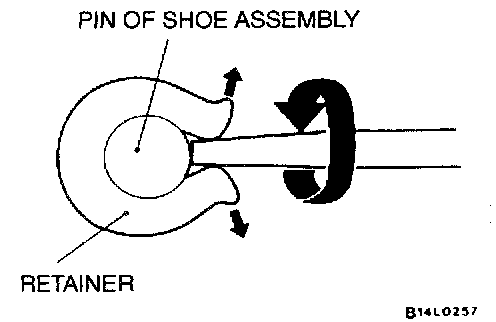

<> RETAINER REMOVAL
Use a flat-tipped screwdriver or a similar tool to open up the retainer joint. Then remove the retainer.
INSTALLATION SERVICE POINTS

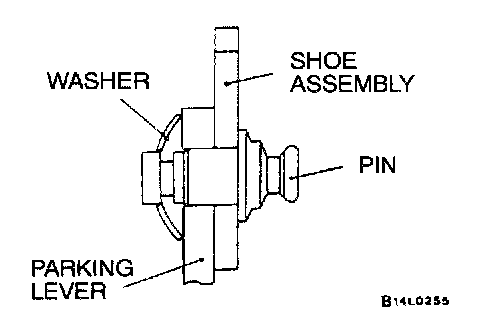

>>A<< WAVE WASHER INSTALLATION
Install the washer in the direction shown in the illustration.

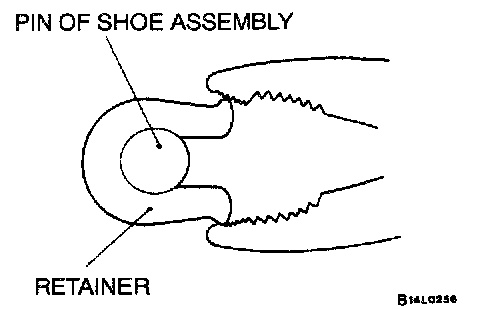

>>B<< RETAINER INSTALLATION
Use pliers or a similar tool to close the retainer end onto the pin.
