Anti-Lock Braking System (ABS)

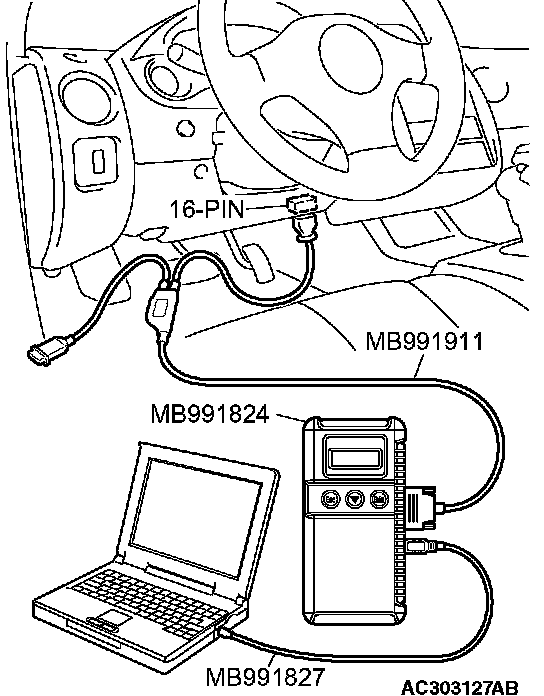

HOW TO CONNECT THE SCAN TOOL (MUT-III)

Required Special Tools:
^ MB991958: Scan Tool (MUT-III Sub Assembly)
^ MB991824: Vehicle Communication Interface
^ MB991827: MUT-III USB Cable
^ MB991911: MUT-III Main Harness B

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.





1. Ensure that the ignition switch is at the "LOCK" (OFF) position.
2. Start up the personal computer.
3. Connect special tool MB991827 to special tool MB991824 and the personal computer.
4. Connect special tool MB991911 to special tool MB991824.
5. Connect special tool MB991911 to the data link connector.
6. Turn the power switch of special tool MB991824 to the "ON" position.

NOTE: When special tool MB991824 is energized, special tool MB991824 indicator light will be illuminated in a green color.

7. Start the MUT-III system on the personal computer.

NOTE: Disconnecting scan tool MB991958 is the reverse of the connecting sequence, making sure that the ignition switch is at the "LOCK" (OFF) position.

HOW TO READ AND ERASE DIAGNOSTIC TROUBLE CODES

Required Special Tools:
^ MB991958: Scan Tool (MUT-III Sub Assembly)
^ MB991824: Vehicle Communication Interface
^ MB991827: MUT-III USB Cable
^ MB991911: MUT-III Main Harness B

CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

NOTE: If the battery voltage is low, diagnostic trouble codes will not be set. Check the battery if scan tool MB991958 does not display.





1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System select."
5. Choose "ABS" from the "CHASSIS" tab.
6. Select "MITSUBISHI."
7. Select "Diagnostic Trouble Code."
8. If a DTC is set, it is shown.
9. Choose "Erase DTCs" to erase the DTC.

HOW TO READ AND ERASE DIAGNOSTIC TROUBLE CODES

Required Special Tool:
^ MB991529: Diagnostic Trouble Code Check Harness

HOW TO READ DIAGNOSTIC TROUBLE CODES

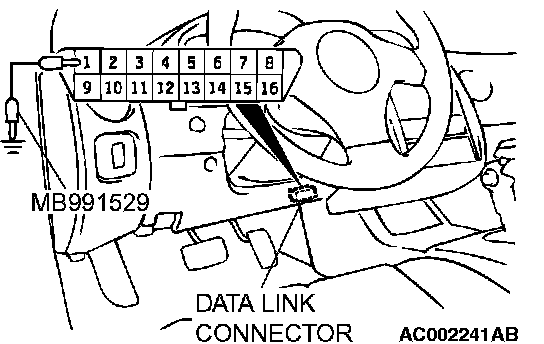

1. Use special tool MB991529 to ground number 1 terminal of the data link connector.

CAUTION: Do not depress the brake pedal after the ignition switch is turned to the "ON" position. If the brake pedal is depressed while the ABS is inoperative and the ignition switch is "ON," the ABS warning light will remain on. Because of this, diagnostic trouble codes will not be read out.

2. Turn the ignition switch to the "ON" position.

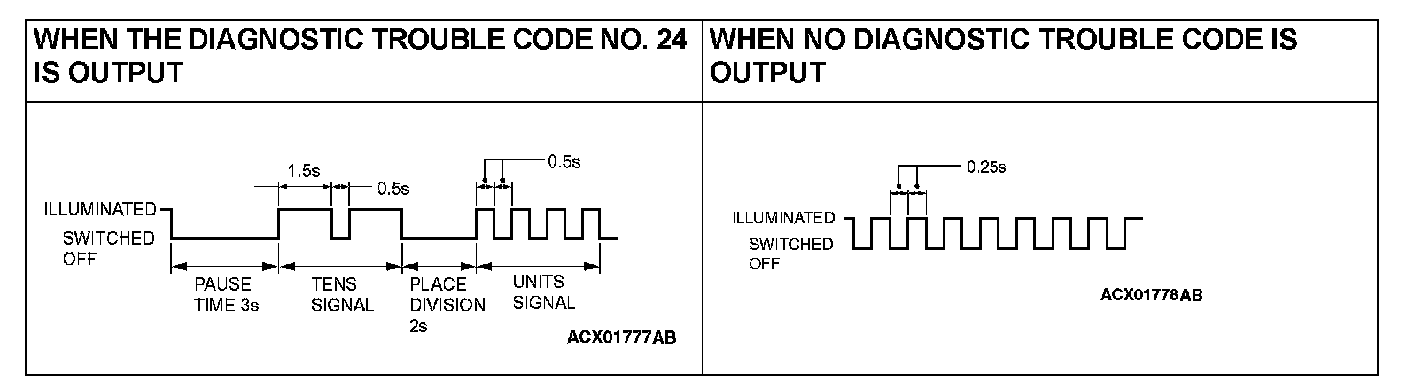

3. Read out a diagnostic trouble code by observing how the warning light flashes.
4. Disconnect special tool MB991529.
