Anti-Lock Braking System (ABS)
HOW TO READ AND ERASE DIAGNOSTIC TROUBLE CODESRequired Special Tools:
^ MB991958: Scan Tool (MUT-III Sub Assembly)
^ MB991824: Vehicle Communication Interface
^ MB991827: MUT-III USB Cable
^ MB991911: MUT-III Main Harness B
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
NOTE: If the battery voltage is low, diagnostic trouble codes will not be set. Check the battery if scan tool MB991958 does not display.
1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to the "ON" position.
3. Select "Interactive Diagnosis" from the start-up screen.
4. Select "System select."
5. Choose "ABS" from the "CHASSIS" tab.
6. Select "MITSUBISHI."
7. Select "Diagnostic Trouble Code."
8. If a DTC is set, it is shown.
9. Choose "Erase DTCs" to erase the DTC.
HOW TO READ AND ERASE DIAGNOSTIC TROUBLE CODES
Required Special Tool:
^ MB991529: Diagnostic Trouble Code Check Harness
HOW TO ERASE DIAGNOSTIC TROUBLE CODES

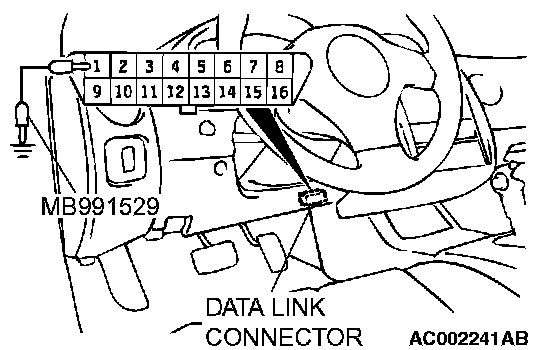

1. Use special tool MB991529 to ground number 1 terminal of the data link connector.
2. Depress the brake pedal and hold it.
3. Turn the ignition switch to the "ON" position.

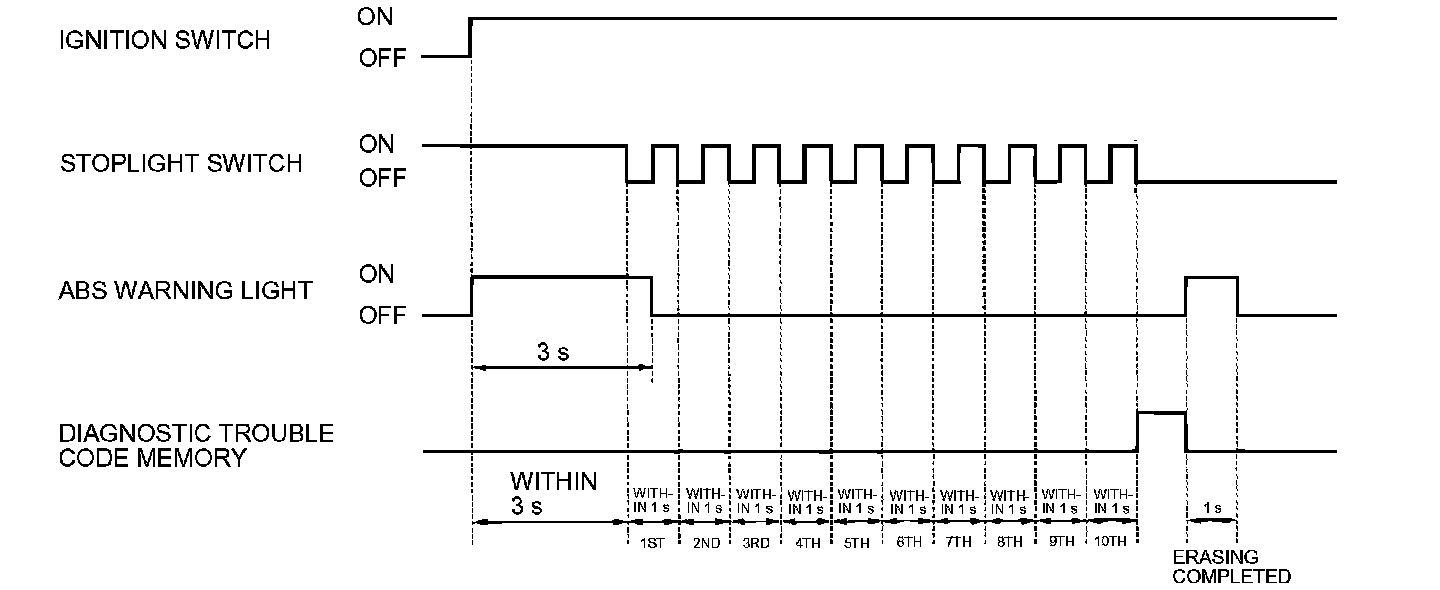

4. After turning the ignition switch to the "ON" position, release the brake pedal within three seconds. Repeat this process of pressing and releasing the brake pedal 10 continuous times.
5. Turn the ignition switch to the "LOOK" (OFF) position.
6. Disconnect special tool MB991529.
