Trunk / Liftgate Switch: Testing and Inspection

Liftgate Latch Switch Check:

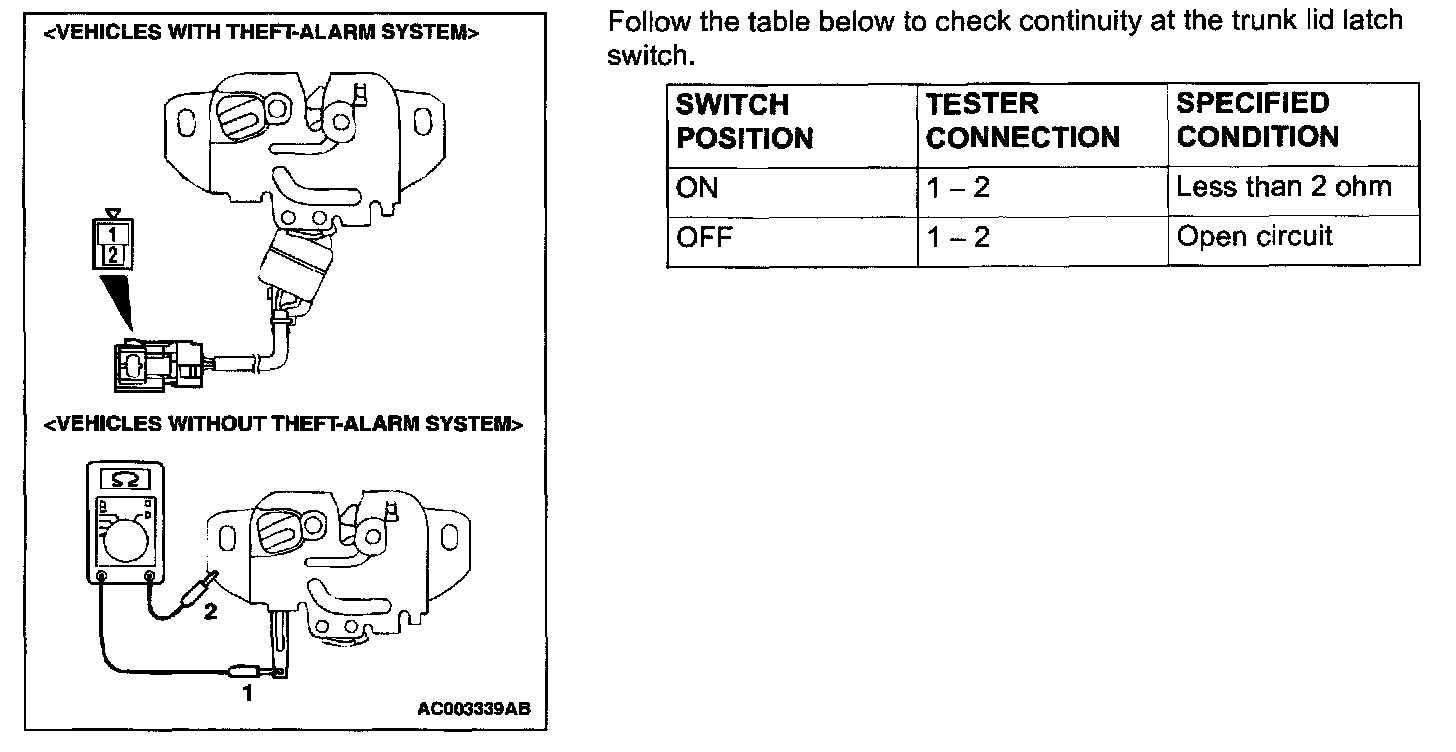

Trunk Lid Latch Switch Check:
