Power Door Lock Switch: Testing and Inspection

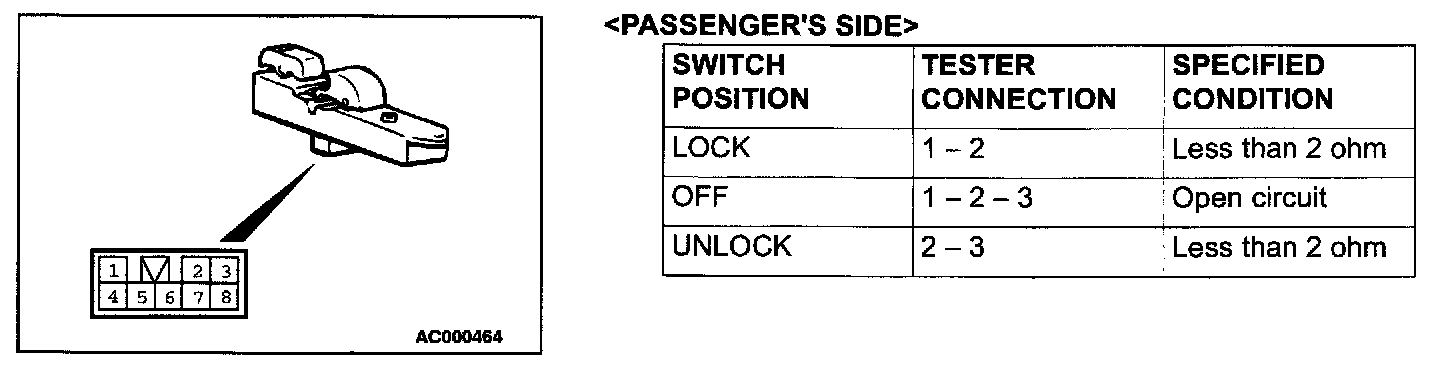

Center Door Lock Switch Continuity Check Part 1:

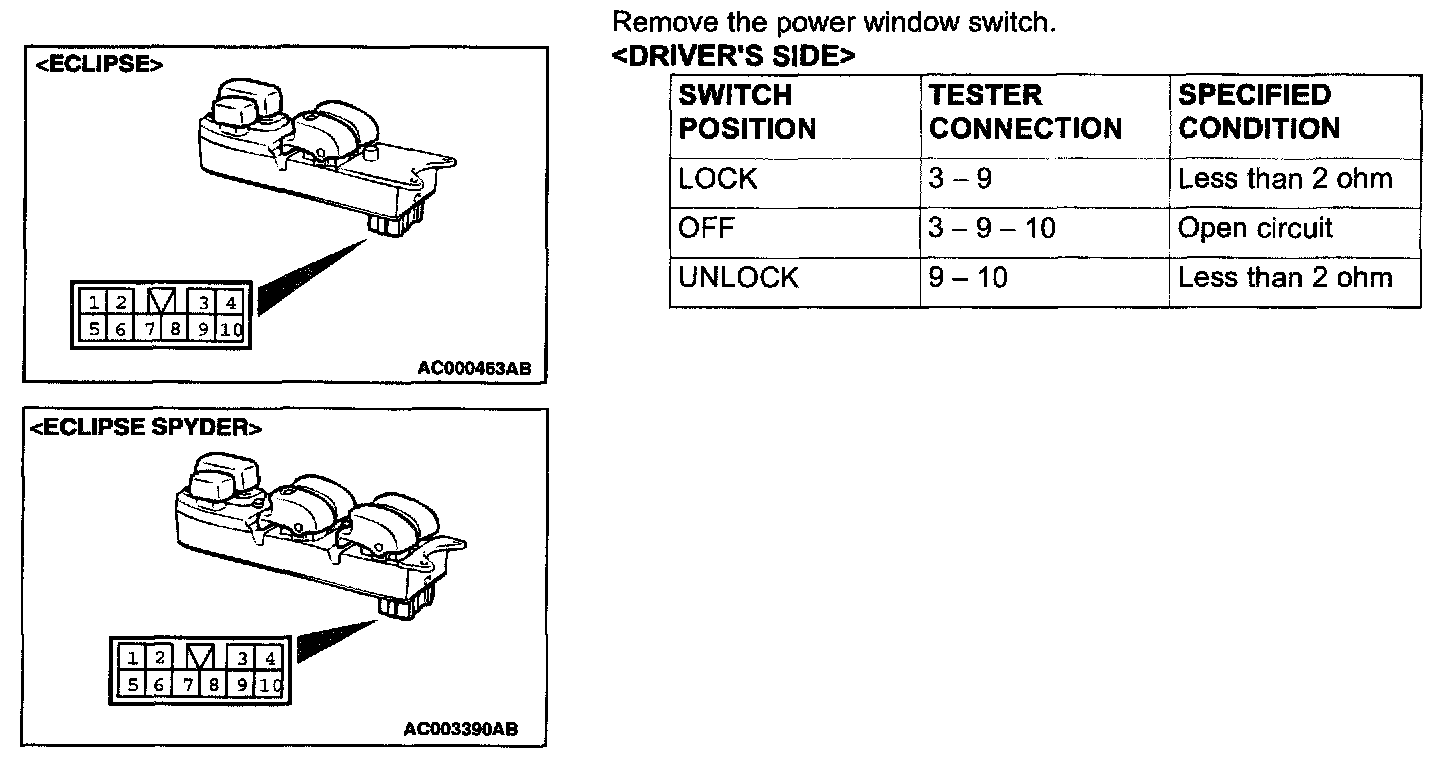

Center Door Lock Switch Continuity Check Part 2:
