Power Door Lock Switch: Description and Operation

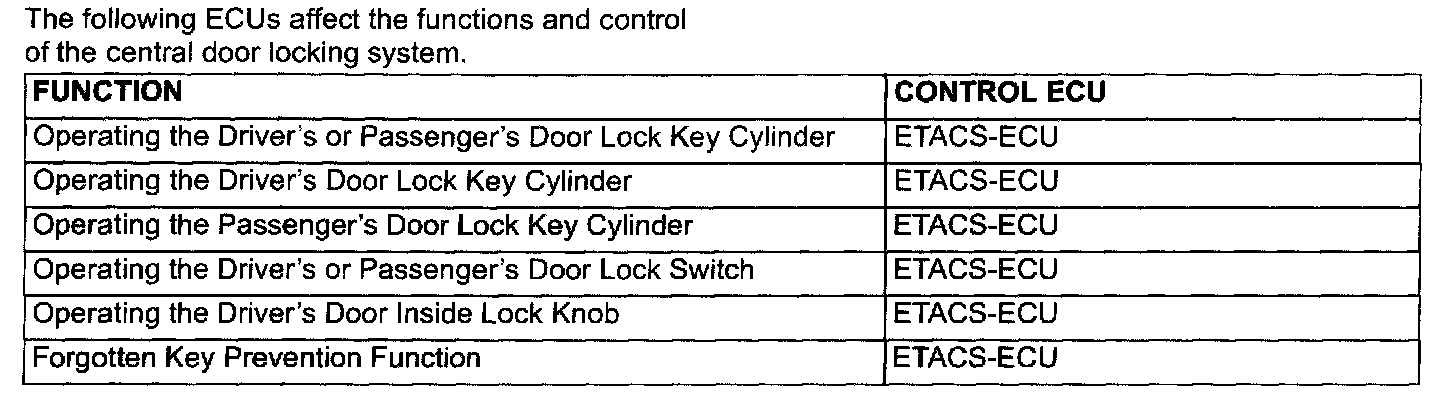

GENERAL DESCRIPTION CONCERNING CENTRAL DOOR LOCKING SYSTEM

DOOR LOCK FUNCTION




Operating The Driver's Or Passenger's Door Lock Switch

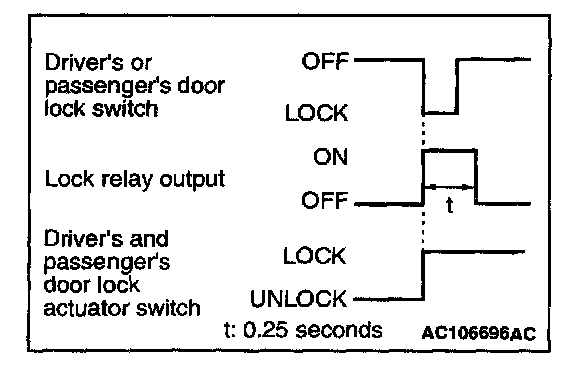

When the door is locked by driver's or passenger's door lock switch, the ETACS-ECU activates the lock relay output for 0.25 seconds and locks all doors.

DOOR UNLOCK FUNCTION




Operating The Driver's Or Passenger's Door Lock Switch

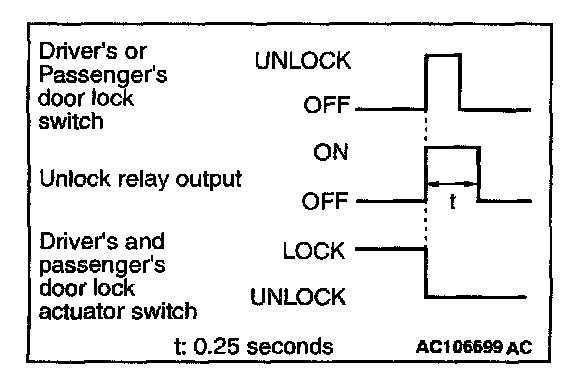

When the door is unlocked by driver's or passenger's door lock switch, the ETACS-ECU activates the unlock relay output for 0.25 seconds and unlocks all doors.
