Roof Lid Glass Operating Current Check

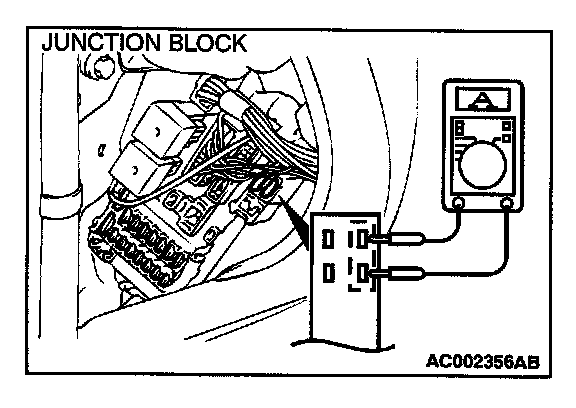

1. Remove the sunroof fuse and connect an ammeter as shown in the illustration.
2. Press the sunroof switch to operate the sunroof, and then measure the operation current while the roof lid glass is moving (except when the sunroof starts to operate, when it is fully open, when it is fully closed and when it is fully tilted up).

Standard value: 10 A or less [at 20 °C (68 °F)]

3. If the operation current is outside the standard value, check the following points.
- Installation condition, warping or jamming of sunroof assembly
- Sticking of drive cable
- Tilt of roof lid glass
