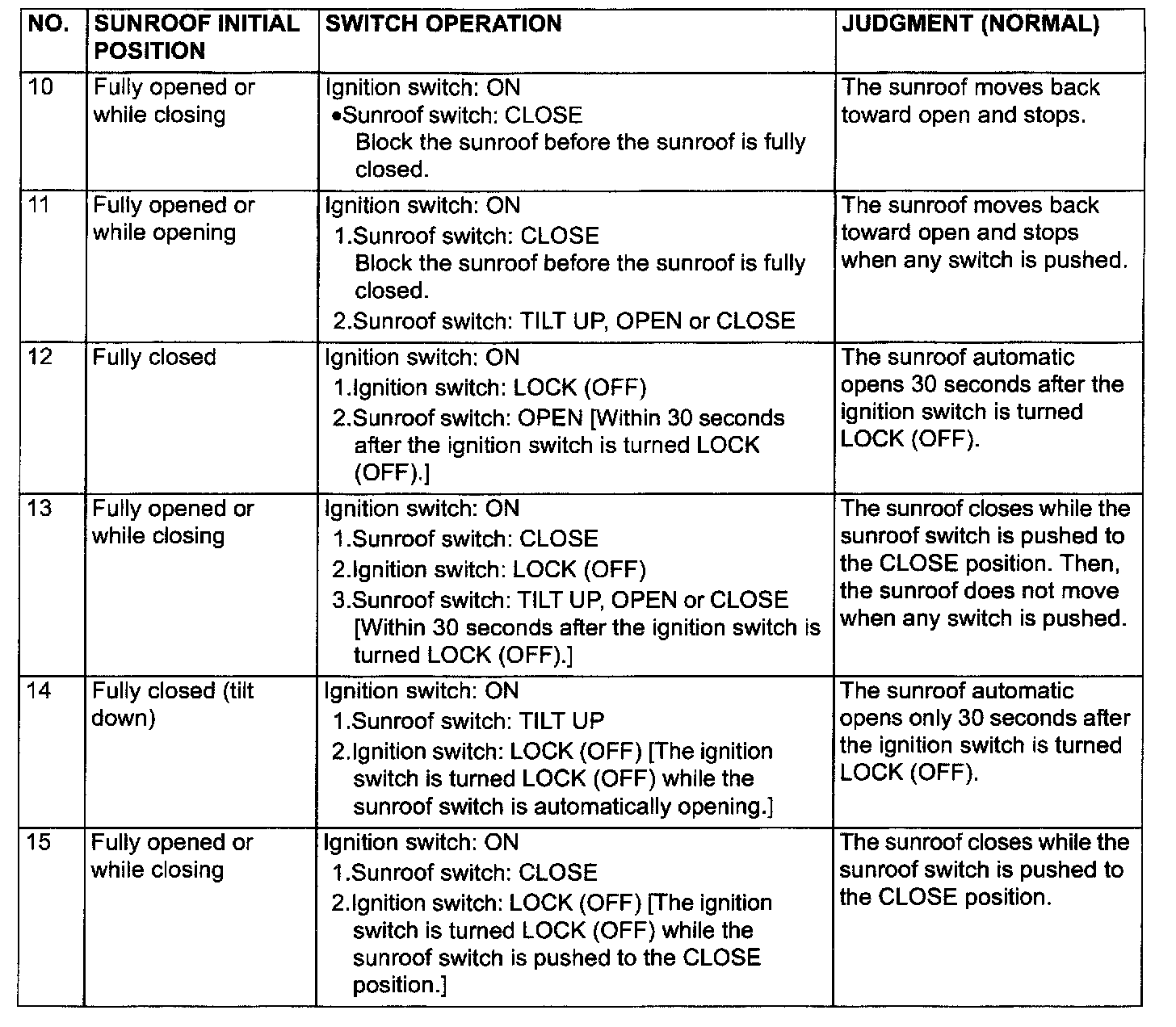

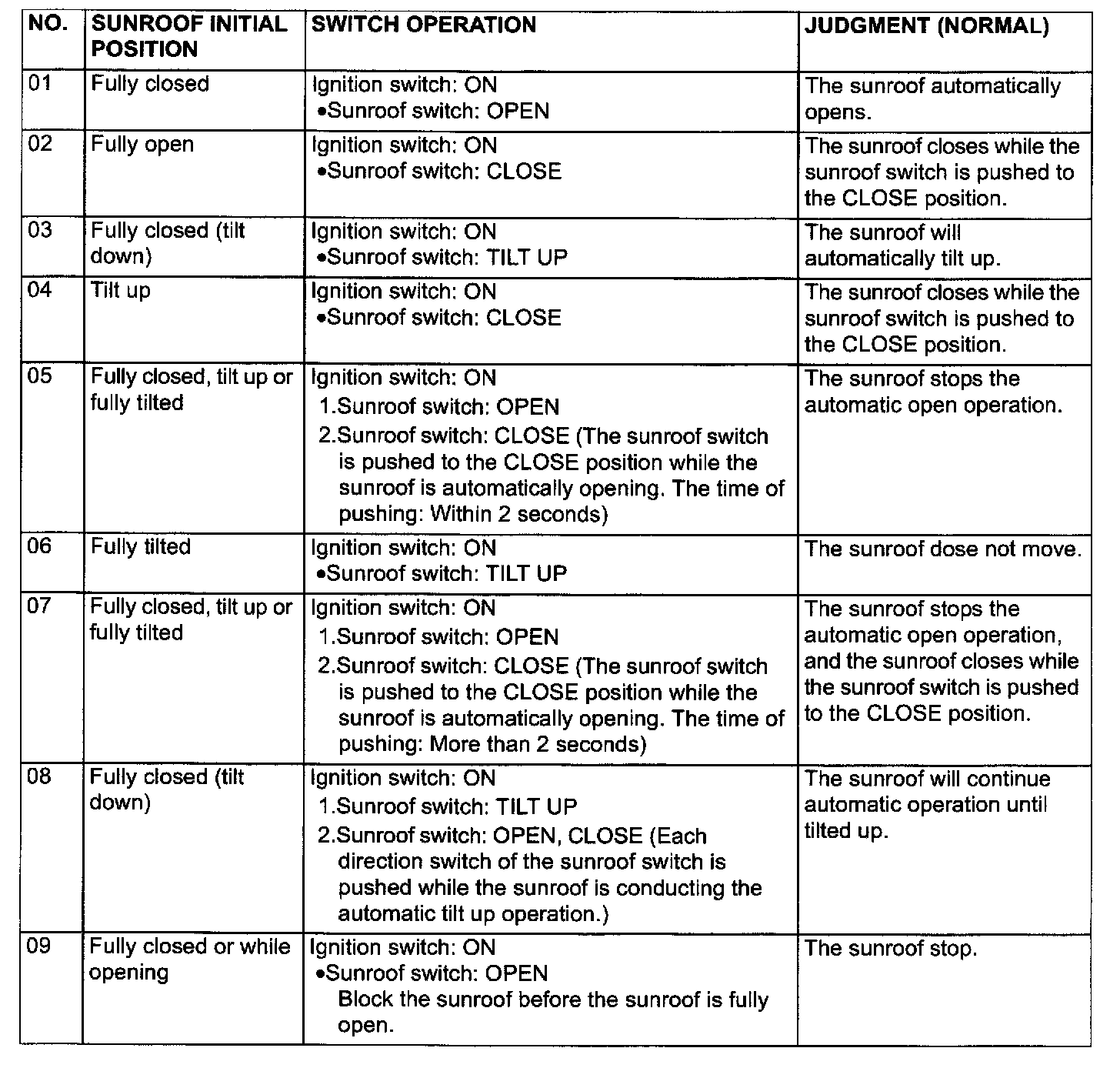

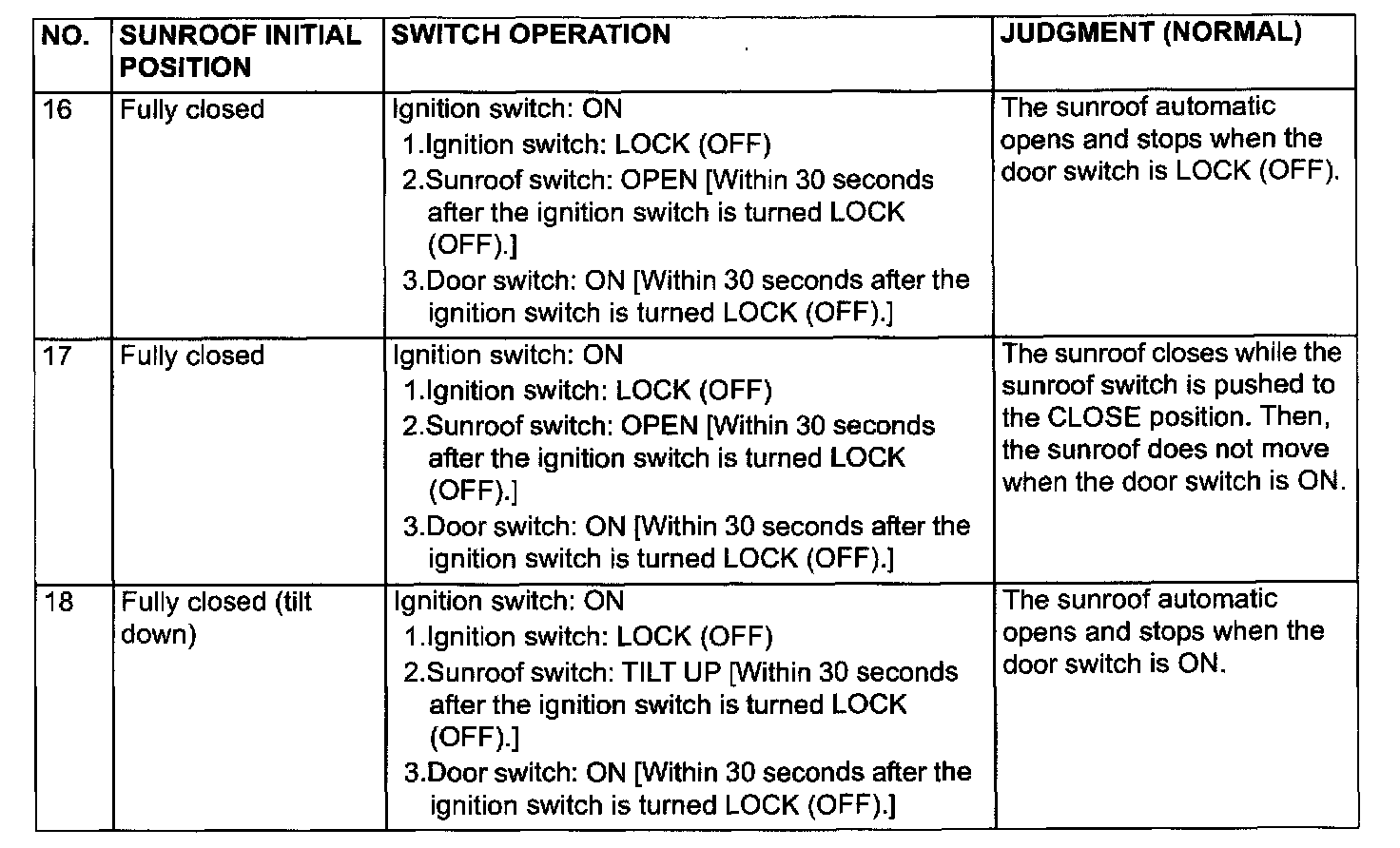

Operation Check

Check that the following items. If faulty, replace the sunroof-ECU (sunroof motor assembly).

Part 1:

Part 2:

Part 3:

CAUTION: Check that the following items are normal before carrying out this operation check.
1. Installation condition of the sunroof assembly
2. Installation condition, deforms and foreign material of the sunroof drive cable
3. Unfitted sunroof lid glass
4. Sunroof switch and sunroof motor assembly
