Overhaul

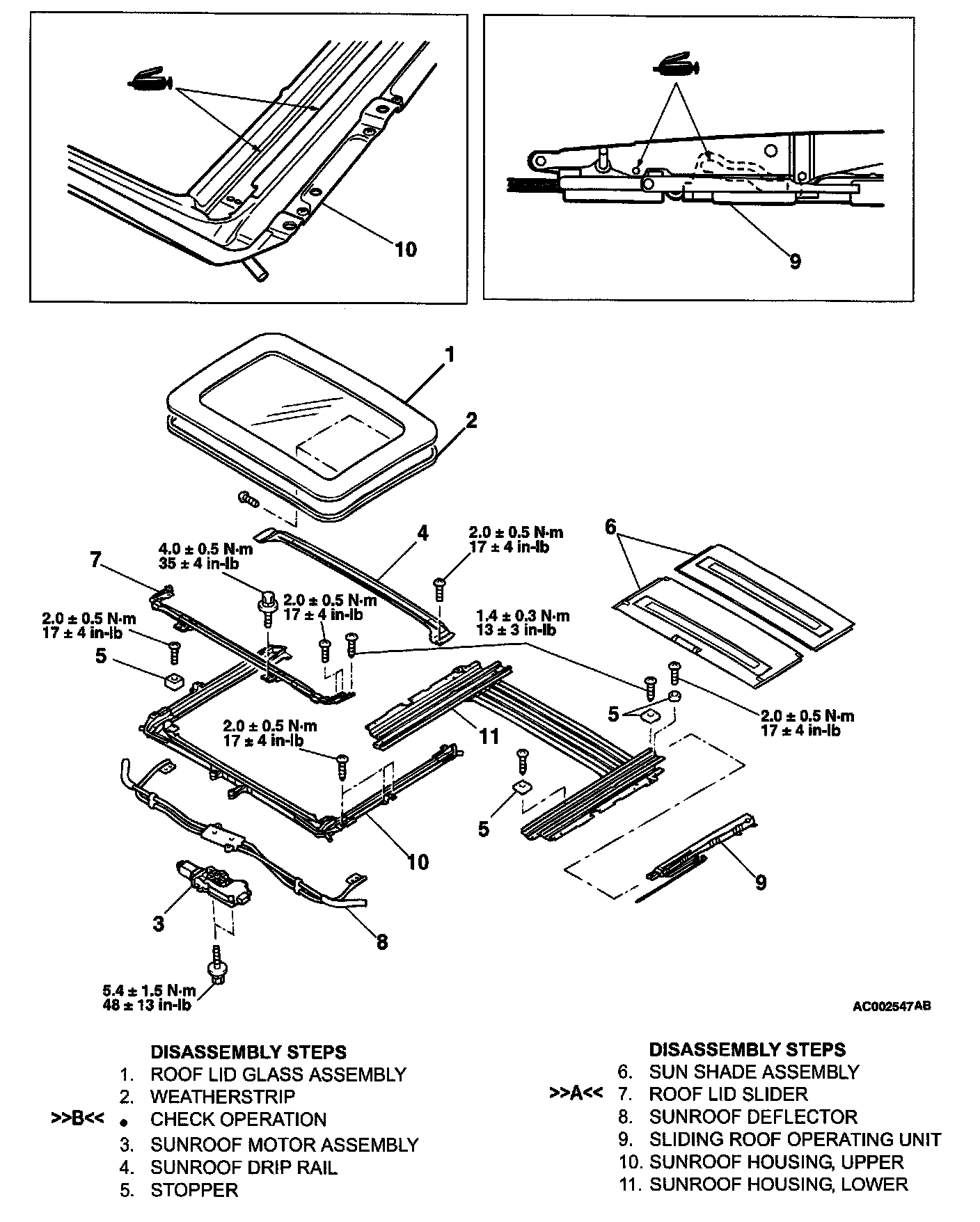

Sunroof Assembly:

INSTALLATION SERVICE POINT




]]A[[ ROOF LID SLIDER INSTALLATION

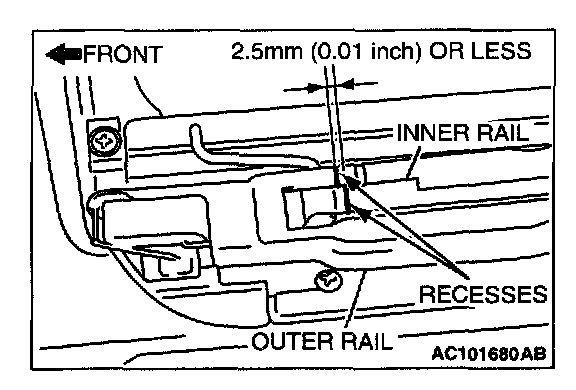

To set the roof lid slider to fully closed position, position the recesses on the inner and outer rails of the roof lid slider as shown.

NOTE: Ideally, the inner and outer rails of the roof lid slider should be aligned.

]]B[[ CHECK OPERATION

CAUTION: Roof lid slider recesses position error must be kept within 2.5 mm (0.01 inch) or less.

When roof lid slider is set to its fully closed position, it must be at the recesses position.

If roof lid slider is positioned at the rear of recesses, carry out the following procedure.
1. Remove sunroof motor assembly.
2. Fit sunroof motor firmly.
3. Install sunroof motor assembly
4. Check recesses position again.
