Sunroof / Moonroof: Adjustments

SUNROOF FIT ADJUSTMENT




1. Fully close the roof lid glass.
2. Fully open the sunshade.

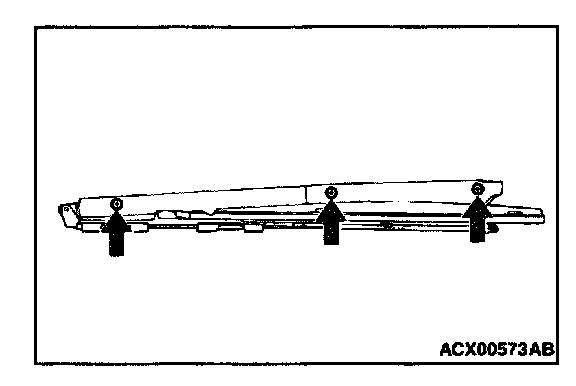

3. Loosen the roof lid glass assembly mounting screws (four), and then slide the roof lid glass assembly along the slot in the roof lid glass assembly to adjust the height of the roof lid glass. Ensure that uniform space between the roof lid glass and the body is secured in circumference.
4. After adjustment, check to be sure that the sunroof operates smoothly.
