Inspection Procedure 2

The Electric Convertible Top Does Not Open Or Close At The Vehicle Speed Of Less Than 3 Km/h (1.9 Mph). (The Door Windows And The Quarter Windows Do Not Automatically Lower When The Convertible Top Switch Is Operated. However, The Door Windows And The Quarter Windows Lower And Raise When The Power Window Main Switch Is Operated.)

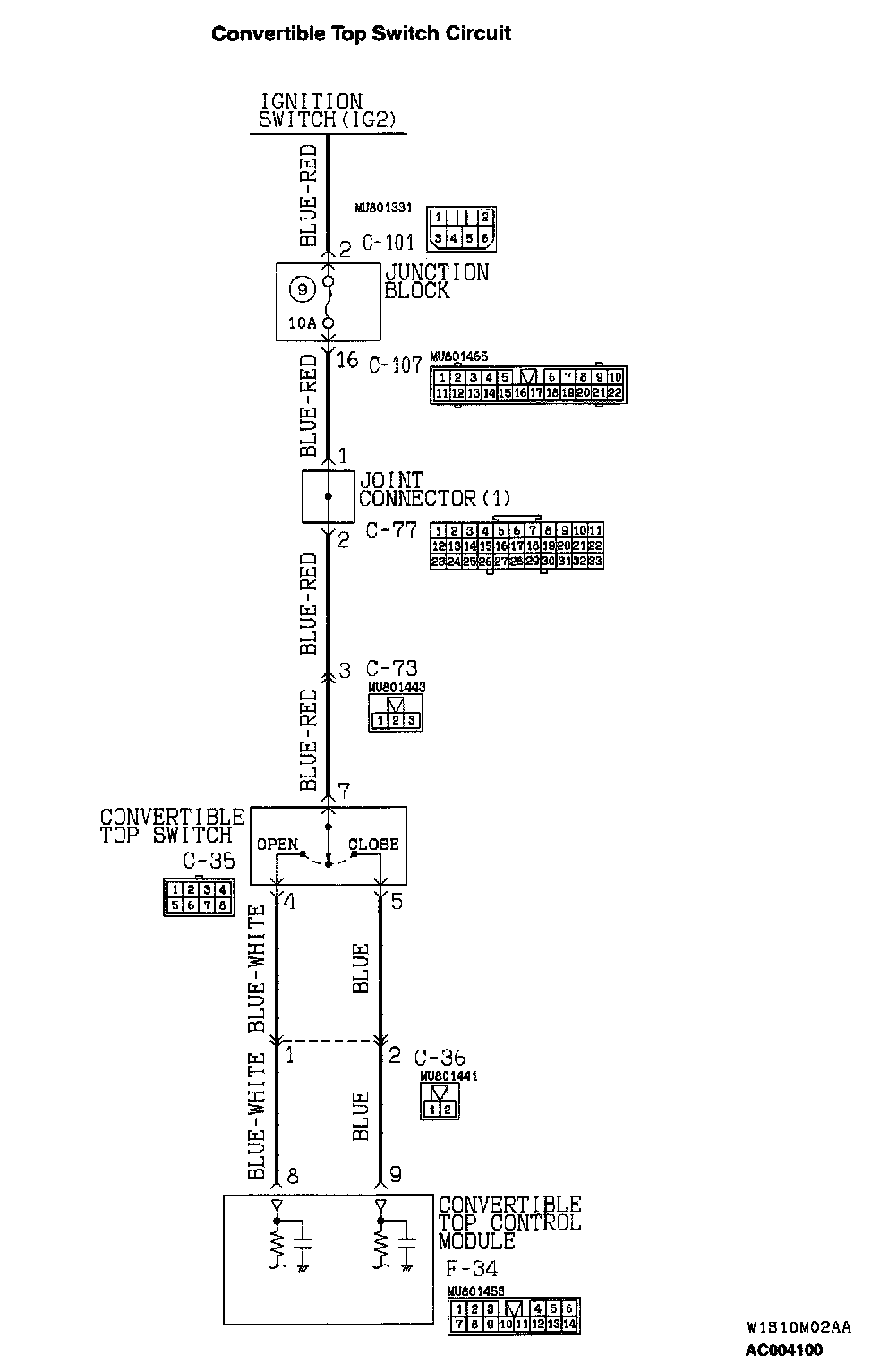

Convertible Top Switch Circuit Part 1:

Convertible Top Switch Circuit Part 2:

CIRCUIT OPERATION
When the convertible top switch is operated, signal is sent to the convertible top control module. The convertible top control module sends convertible top switch "ON" signal to the power window main switch to lower the door windows automatically. The power window main switch lowers the door windows and simultaneously sends the "AUTO DOWN" signal to the convertible top control module. When the "AUTO DOWN" signal is received, the convertible top control module drives the quarter window regulator motor to lower the quarter windows and simultaneously drives the topstack drive motor assembly to operate the electric convertible top.

TECHNICAL DESCRIPTION (COMMENT)
The cause may be a malfunction of the topstack control module circuit.

TROUBLESHOOTING HINTS
- Malfunction of the topstack drive motor assembly
- Malfunction of the power window main switch
- Damaged harness wires or connectors

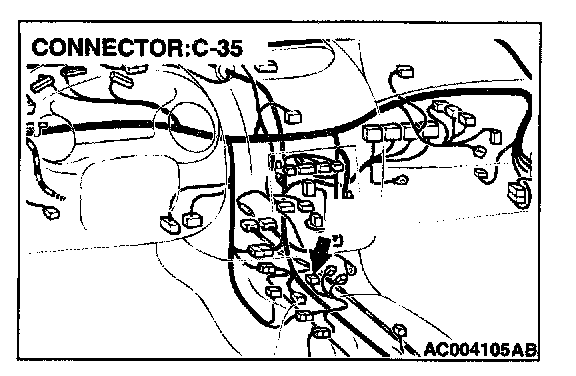

STEP 1. Check the harness wires between ignition switch (IG2) and convertible top switch connector C-35 (terminal 7).

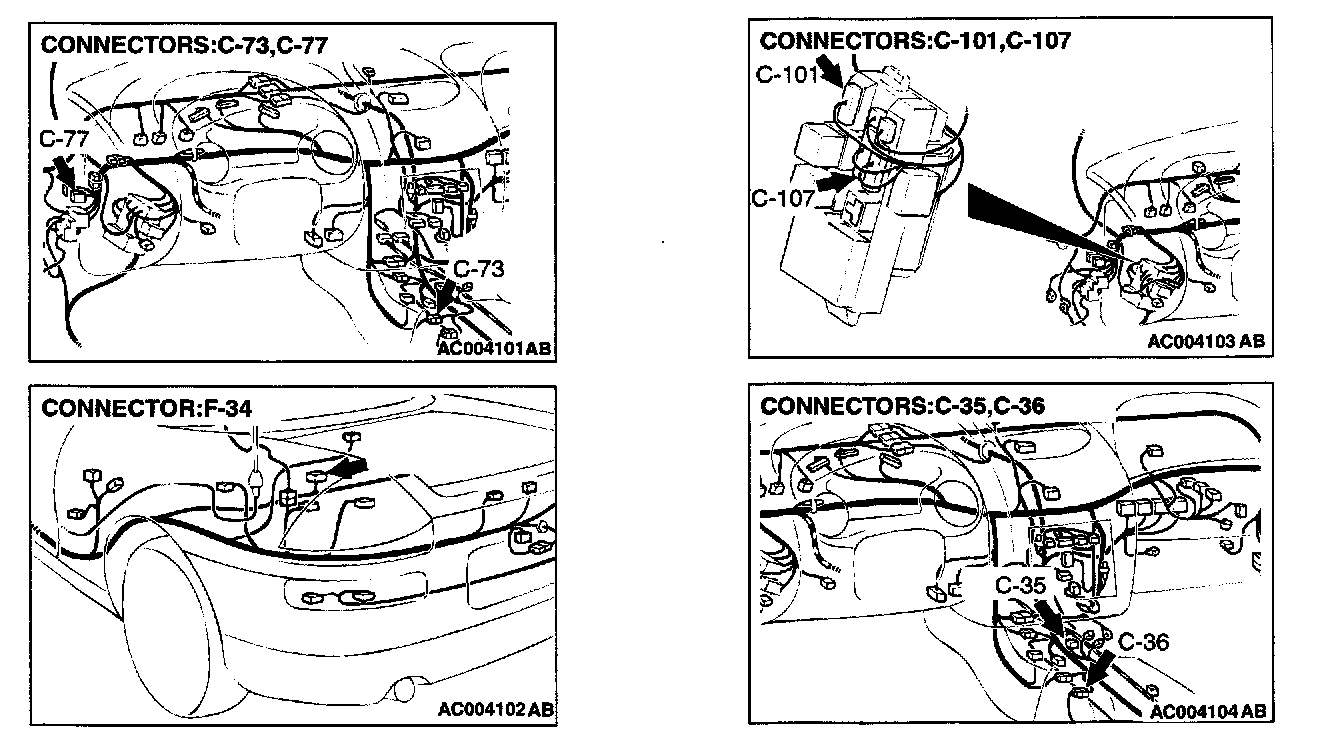

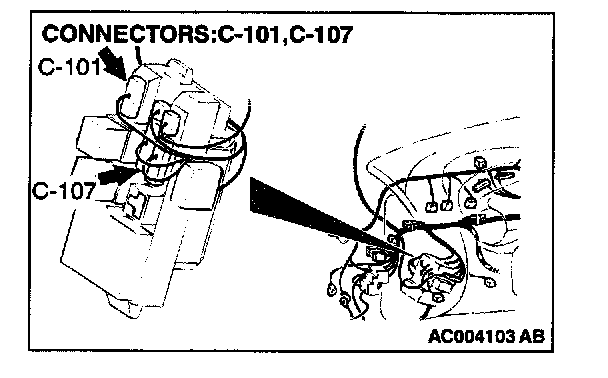

NOTE: After inspecting intermediate connector C-73, C-77, C-101, C-107 inspect the wire. If intermediate connector C-73, C-77, C-101, C-107 are damaged, repair or replace it. Refer to Harness Connector Inspection. Then go to Step 5.

Q: Are the harness wires between ignition switch (IG2) and convertible top switch connector C-35 (terminal 7) in good condition?

YES: Go to Step 2.

NO: Repair or replace them. Refer to Harness Connector Inspection. Then go to Step 5.

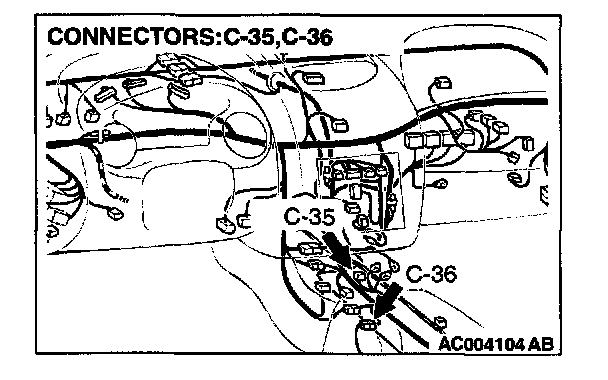

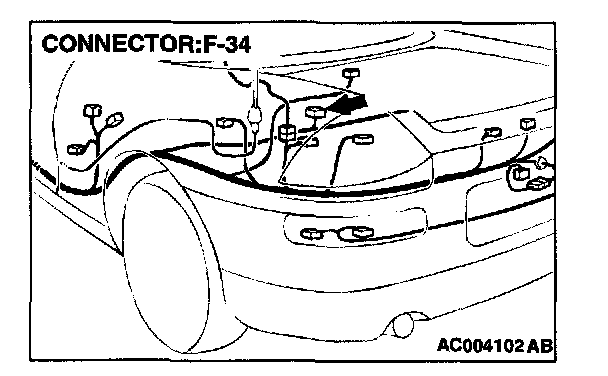

STEP 2. Check the harness wires between convertible top control module connector F-34 (terminals 8, 9) and convertible top switch connector C-35 (terminals 4, 5).

NOTE: After inspecting intermediate connector C-36 inspect the wire. If intermediate connector C-36 is damaged, repair or replace it. Refer to Harness Connector Inspection. Then go to Step 5.

Q: Are the harness wires between convertible top control module connector F-34 (terminals 8, 9) and convertible top switch connector C-35 (terminals 4, 5) in good condition?

YES: Go to Step 3.

NO: Repair or replace them. Refer to Harness Connector Inspection. Then go to Step 5.

STEP 3. Check the convertible top switch

Q: Are convertible top switch in good condition?

YES: Go to Step 4.

NO: Replace the convertible top switch.

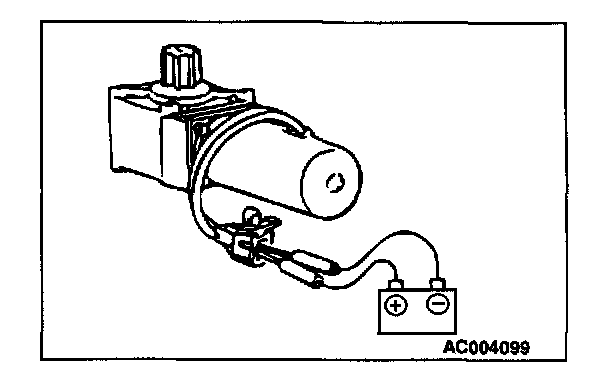

STEP 4. Check the topstack drive motor assembly.

Q: Are topstack drive motor assembly in good condition?

YES: Go to Step 5.

NO: Replace the topstack drive motor assembly.

STEP 5. Check symptoms.

Q: Does the electric convertible top open and close normally?

YES: This diagnosis is complete.

NO: Return to Step 1.
