Inspection Procedure 1

The Electric Convertible Top Does Not Open Or Close At The Vehicle Speed Of Less Than 3 Km/h (1.9 Mph). (The Door Windows And The Quarter Windows Automatically Lower When The Convertible Top Switch Is Operated.)

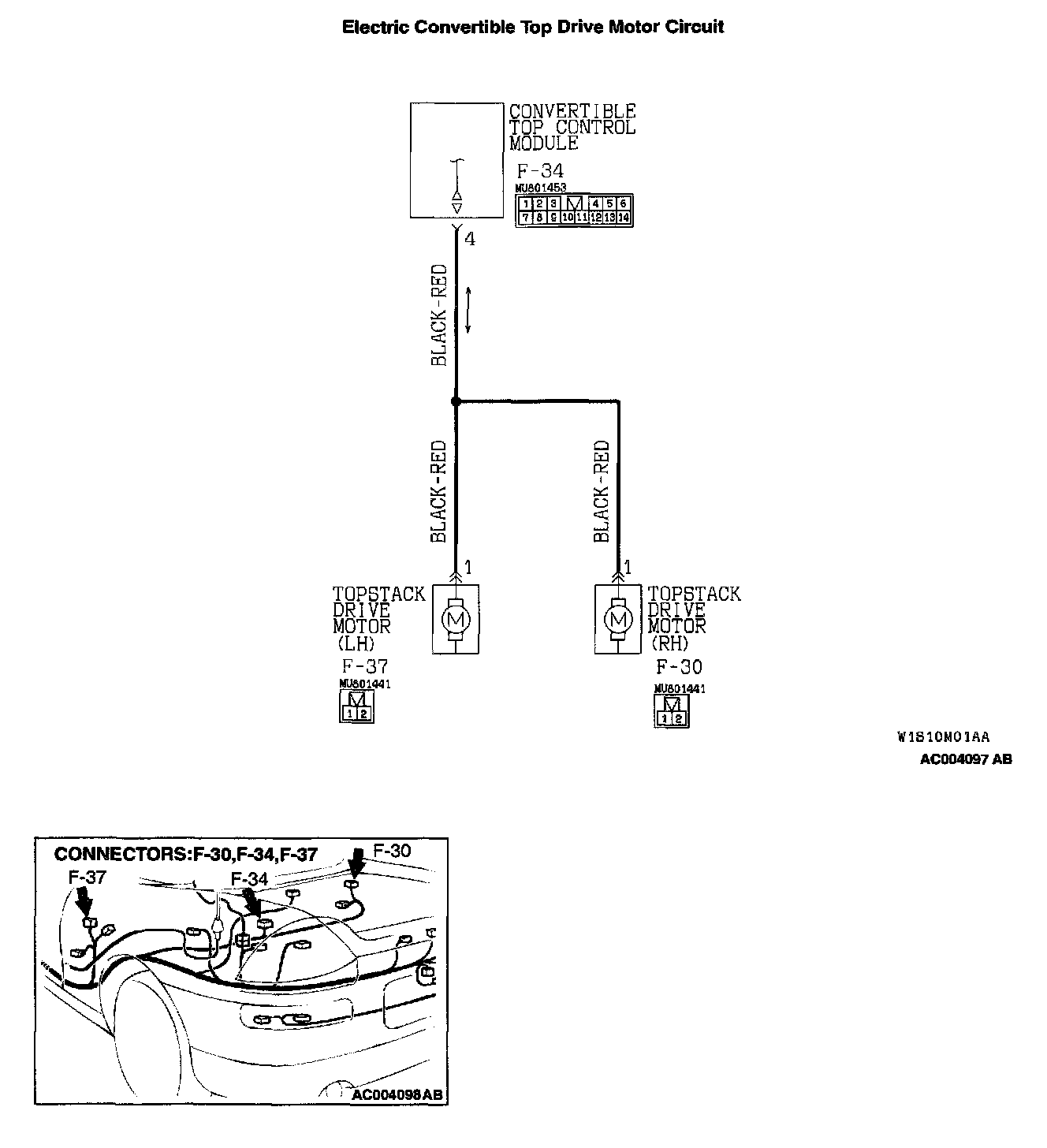

Electric Convertible Top Drive Motor Circuit:

CIRCUIT OPERATION
When the convertible top switch is operated, a signal is sent to the convertible top control module. The convertible top control module sends convertible top switch "ON" signal to the power window main switch to lower the door windows automatically. The power window main switch lowers the door windows and simultaneously sends the "AUTO DOWN" signal to the convertible top control module. When the "AUTO DOWN" signal is received, the convertible top control module drives the quarter window regulator motor to lower the quarter windows and simultaneously drives the topstack drive motor assembly to operate the electric convertible top.

TECHNICAL DESCRIPTION (COMMENT)
The cause may be a malfunction of the topstack drive motor circuit.

TROUBLESHOOTING HINTS
- Malfunction of the topstack drive motor assembly
- Damaged harness wires or connectors

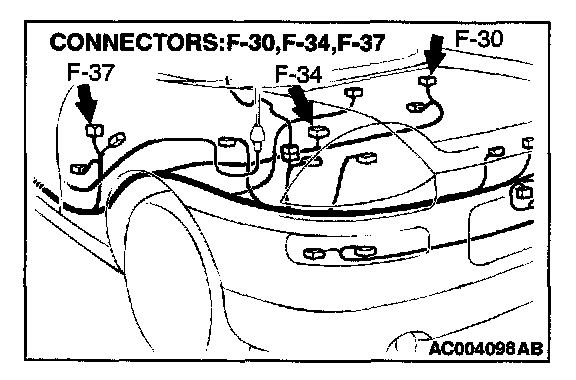

STEP 1. Check the harness wires between convertible top control module connector F-34 (4) and topstack drive motor connector F-37 [LH] (terminal 1), F-30 [RH] (terminal 1).

Q: Are the harness wires between convertible top control module connector F-34 (terminal 4) and topstack drive motor connector F-37 [LH] (terminal 1), F-30 [RH] (terminal 1) in good condition?

YES: Go to Step 2.

NO: Repair or replace them. Refer to Harness Connector Inspection. Then go to Step 3.

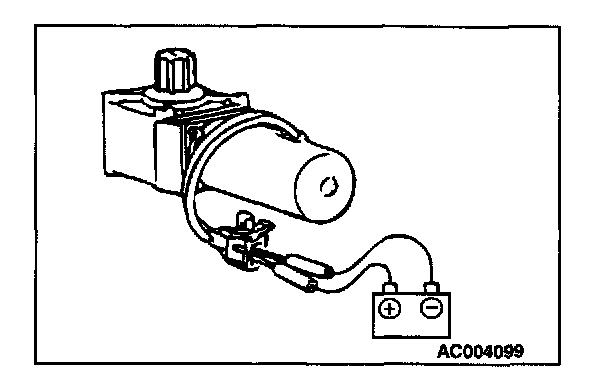

STEP 2. Check the topstack drive motor assembly.

Q: Are topstack drive motor assembly in good condition?

YES: Go to Step 3.

NO: Replace the topstack drive motor assembly.

STEP 3. Check symptoms.

Q: Does the electric convertible top open and close normally?

YES: This diagnosis is complete.

NO: Return to Step 1.
