Topstack Side Stay Pads

Topstack Side Stay Pads:

REMOVAL SERVICE POINT

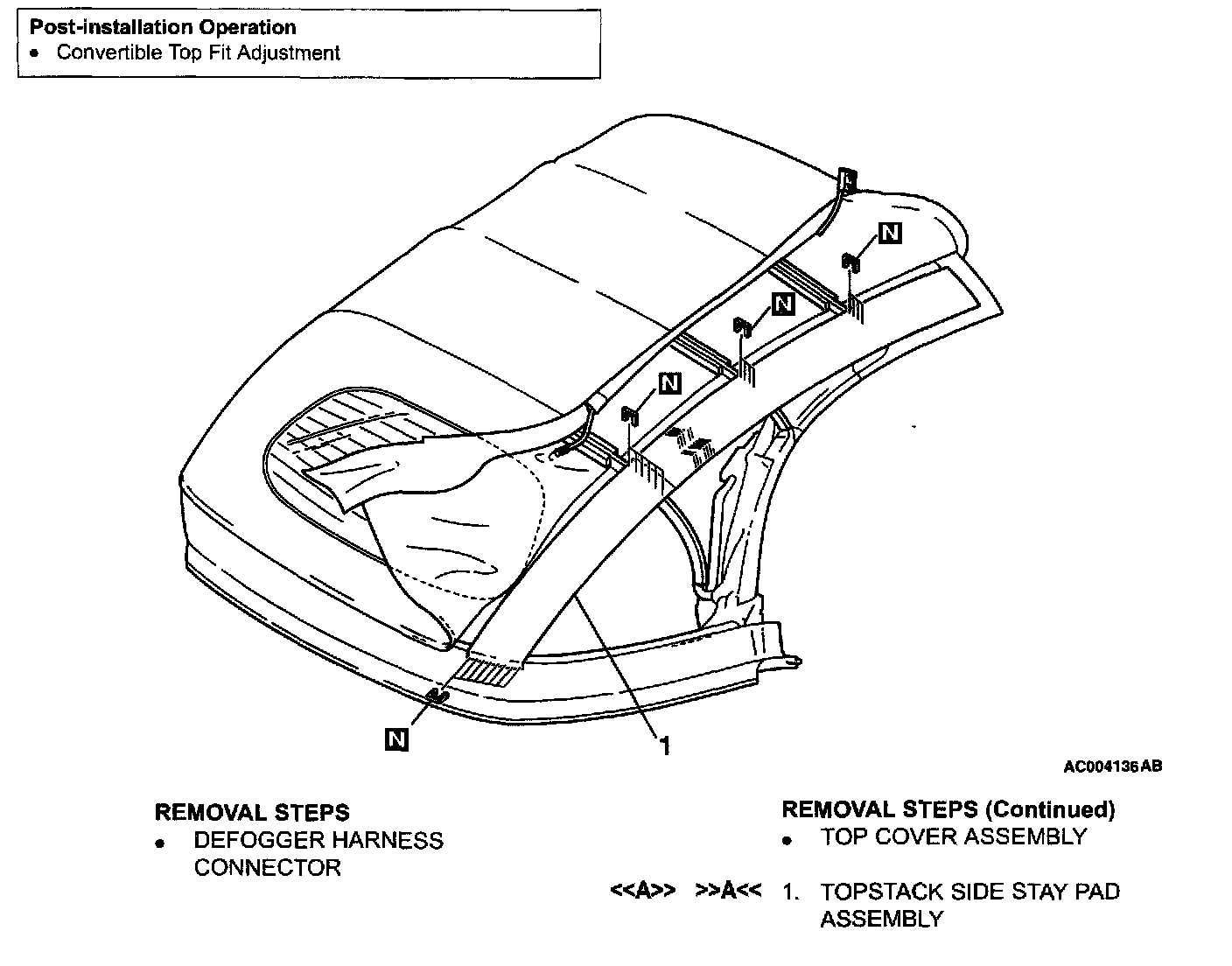

[[A]] TOPSTACK SIDE STAY PAD ASSEMBLY REMOVAL

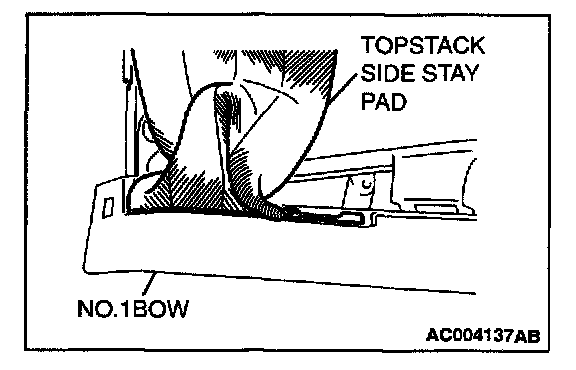

1. Move the No.1 bow side topstack side stay pad to the outer side of the vehicle.

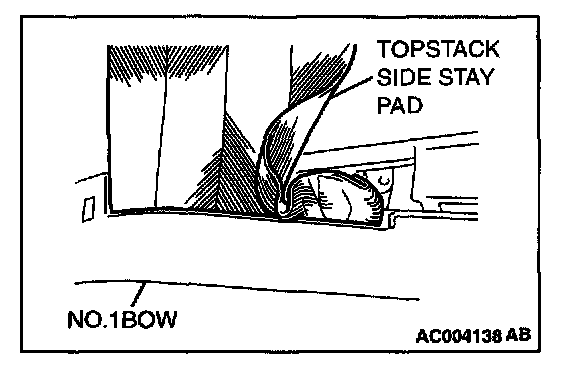

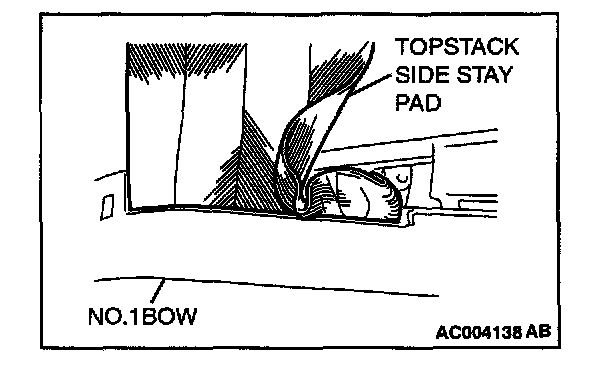

2. Guide the (folded) end of the topstack side stay pad out of the wider slit of the No.1 bow.

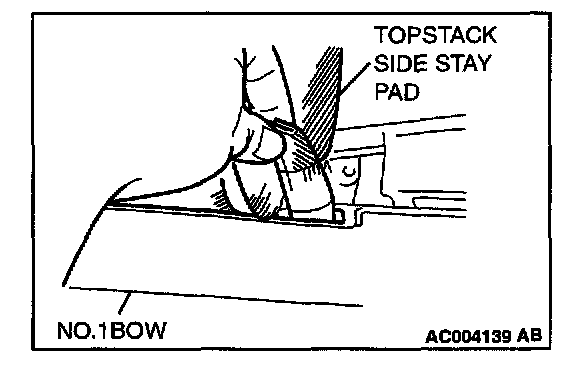

3. Pull out the folded end of the topstack side stay, and disconnect the topstack side stay pad from the No.1 bow.
4. Disconnect the topstack side stay pad from the No.2, No.3, No.4, and No.5 bows.

INSTALLATION SERVICE POINT

]]A[[ TOPSTACK SIDE STAY PAD ASSEMBLY INSTALLATION
1. Face the folded end of the topstack side stay pad downward, and then position it to the No.1 bow side.
2. Connect the topstack side stay pad to the No.5, No.4, No.3, and No.2 bows.

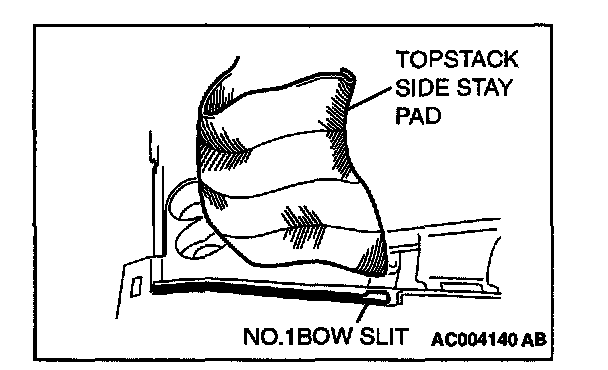

3. Insert the folded end of the topstack side stay pad through the wider part of the No.1 bow slit as shown.




4. Working from inside the vehicle, pull out the folded end of the topstack side stay pad, and then install the topstack side stay pad to the No.1 bow.
