Topstack Rear Rail
Topstack Rear Rail

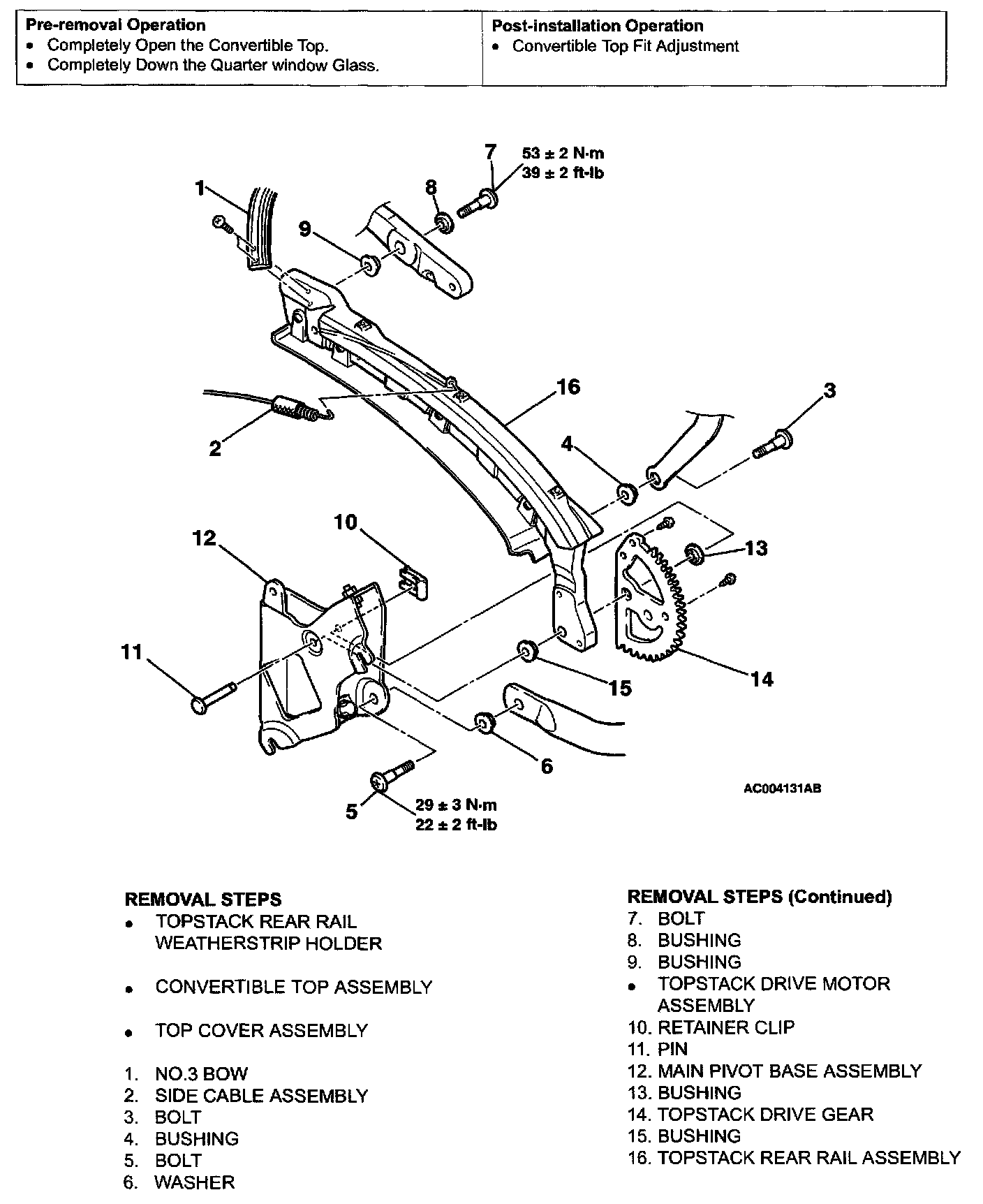

Topstack Rear Rail - Removal And Installation:

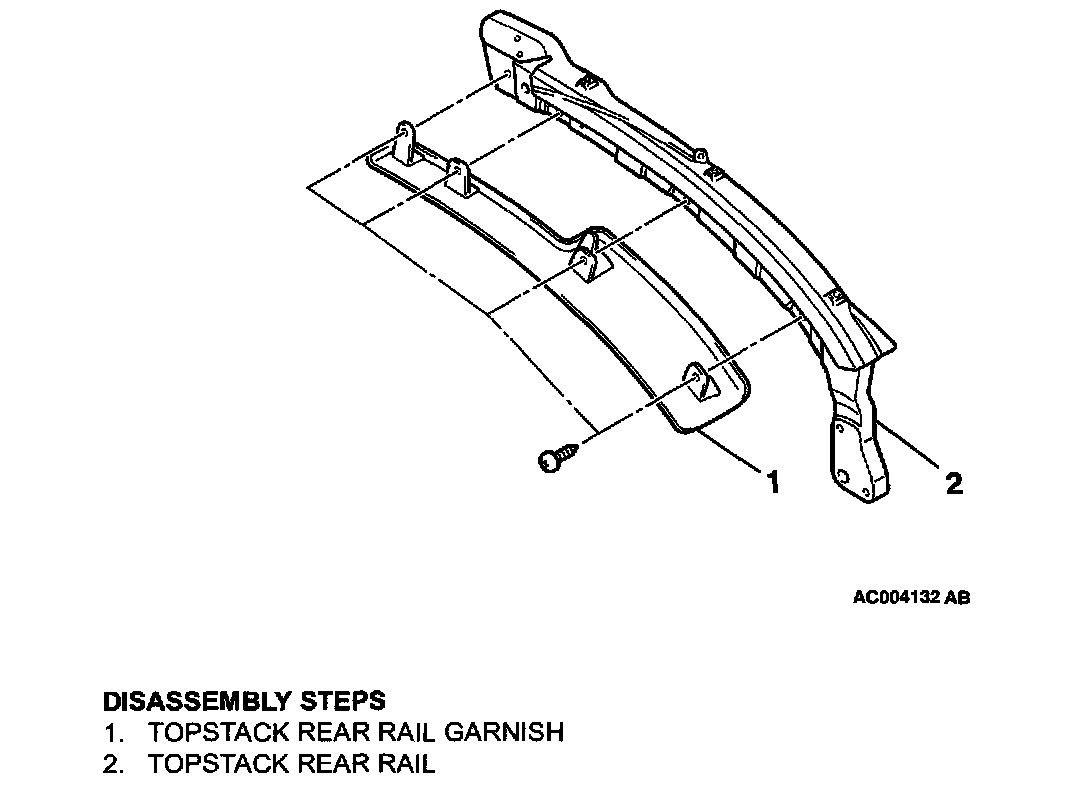

Topstack Rear Rail - Disassembly And Assembly:
