Home >> Mitsubishi >> 2004 >> Eclipse V6-3.0L SOHC >> Repair and Diagnosis >> Body and Frame >> Roof and Associated Components >> Convertible Top >> Service and Repair >> Topstack No.2 and No.3 Bows

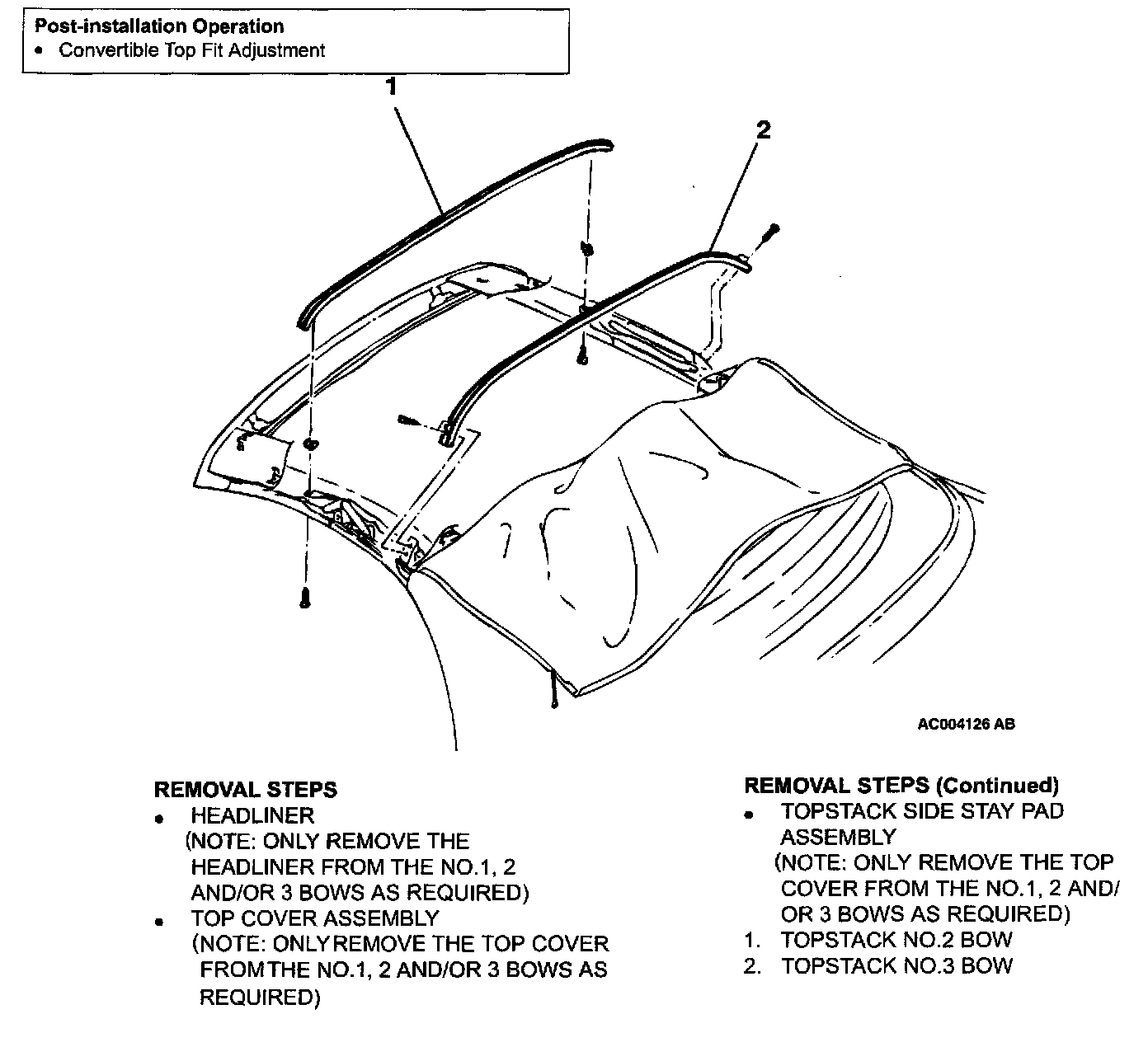

Topstack No.2 and No.3 Bows

Topstack No.2 And No.3 Bows:
