Topstack Front Rail and Central Rail

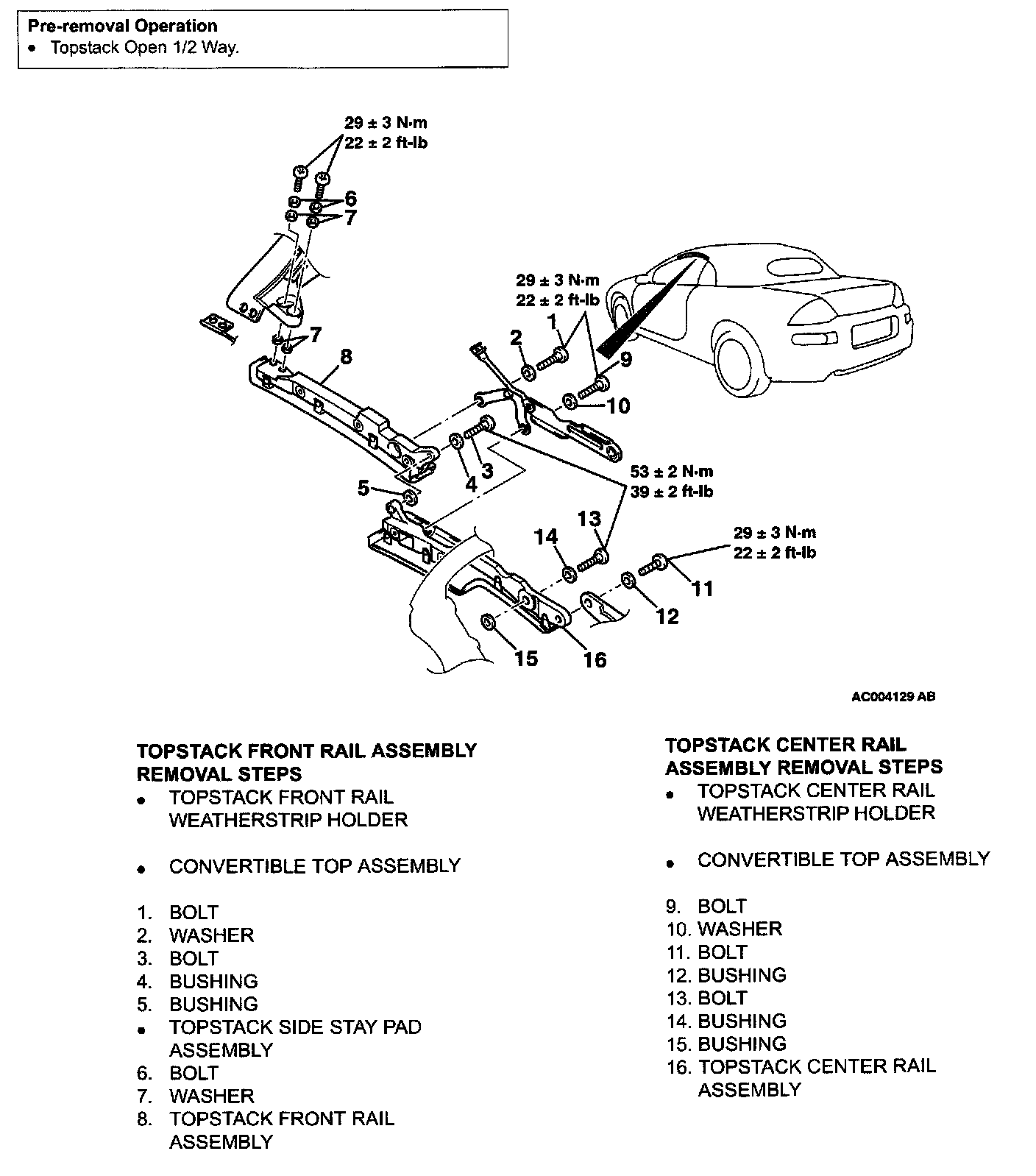

Topstack Front Rail And Center Rail:

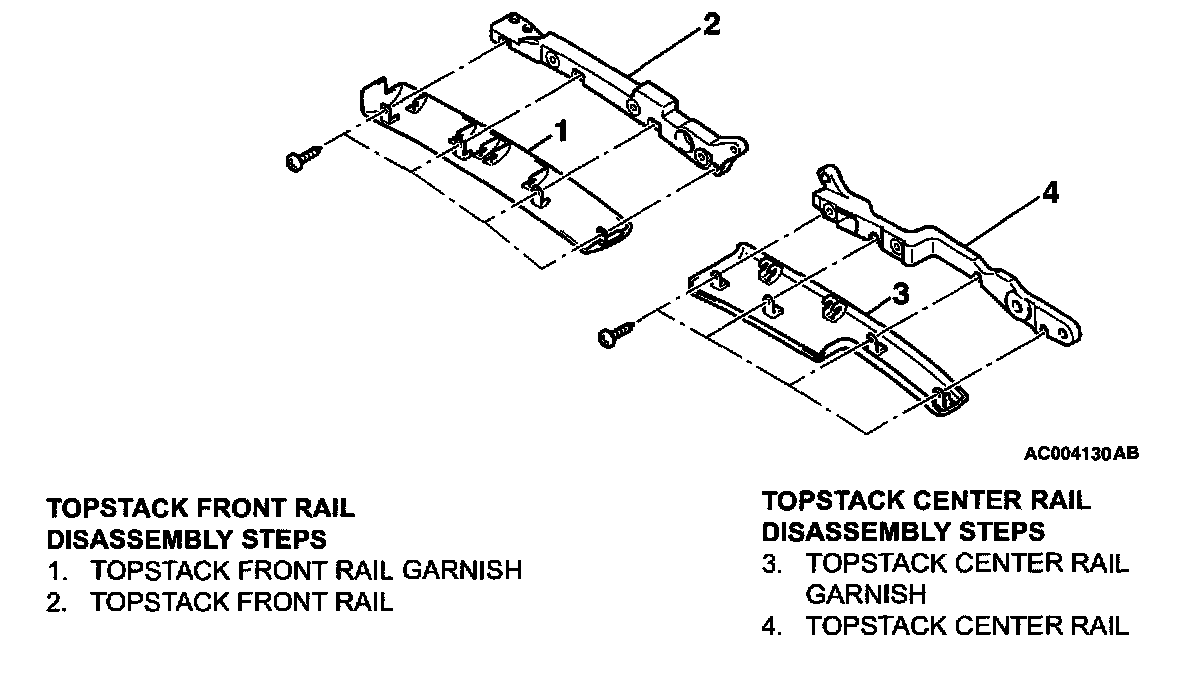

Topstack Front Rail And Center Rail - Disassembly And Assembly:
