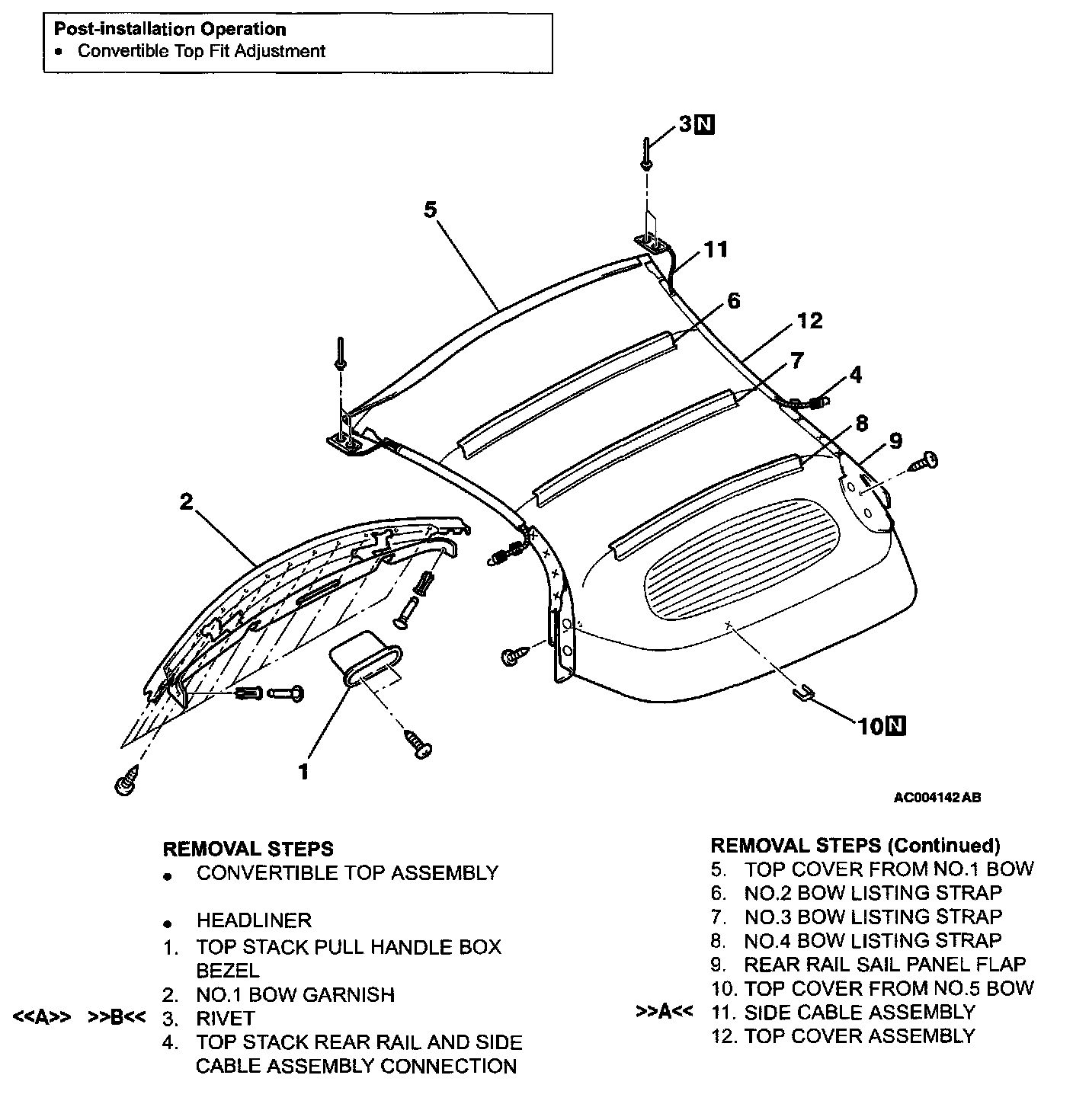

Top Cover Assembly

Top Cover Assembly:

REMOVAL SERVICE POINT

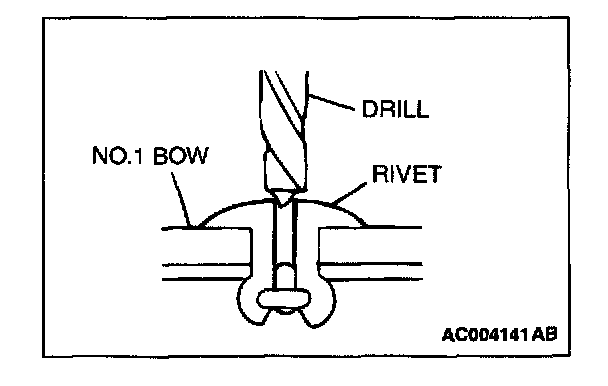

[[A]] RIVET REMOVAL
Use a drill [psi 4.0 - 4.5 mm (psi 0.16 - 0.18 inch)] to break the rivet by drilling a hole, and remove the rivet.

INSTALLATION SERVICE POINT

]]A[[ SIDE CABLE ASSEMBLY INSTALLATION
1. Feed a wire through the hollow part at the side of the top cover assembly.
2. Tie the rear end of the wire to the front end of the side cable assembly, pull out the front end of the wire, and then feed the side cable assembly through the hollow part.
3. Remove the wire.

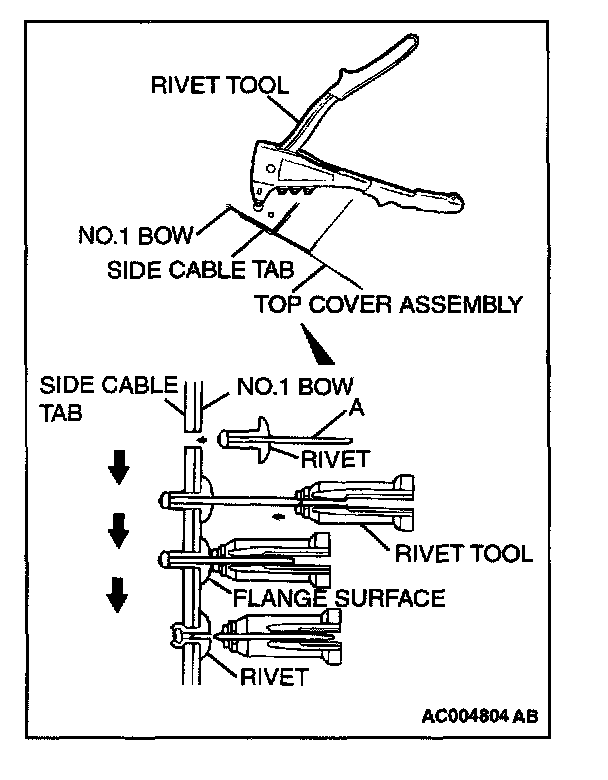

]]B[[ RIVET INSTALLATION




1. Insert the rivet [psi 4.8 mm (psi 0.19 inch)] into the No.1 bow and side cable tab.
2. Insert "A" of the rivet into the rivet tool.
3. Pressing the flange surface of the rivet, move the handle of the rivet tool.
4. The thinnest point of "A" is cut and the rivet is held in the position.
