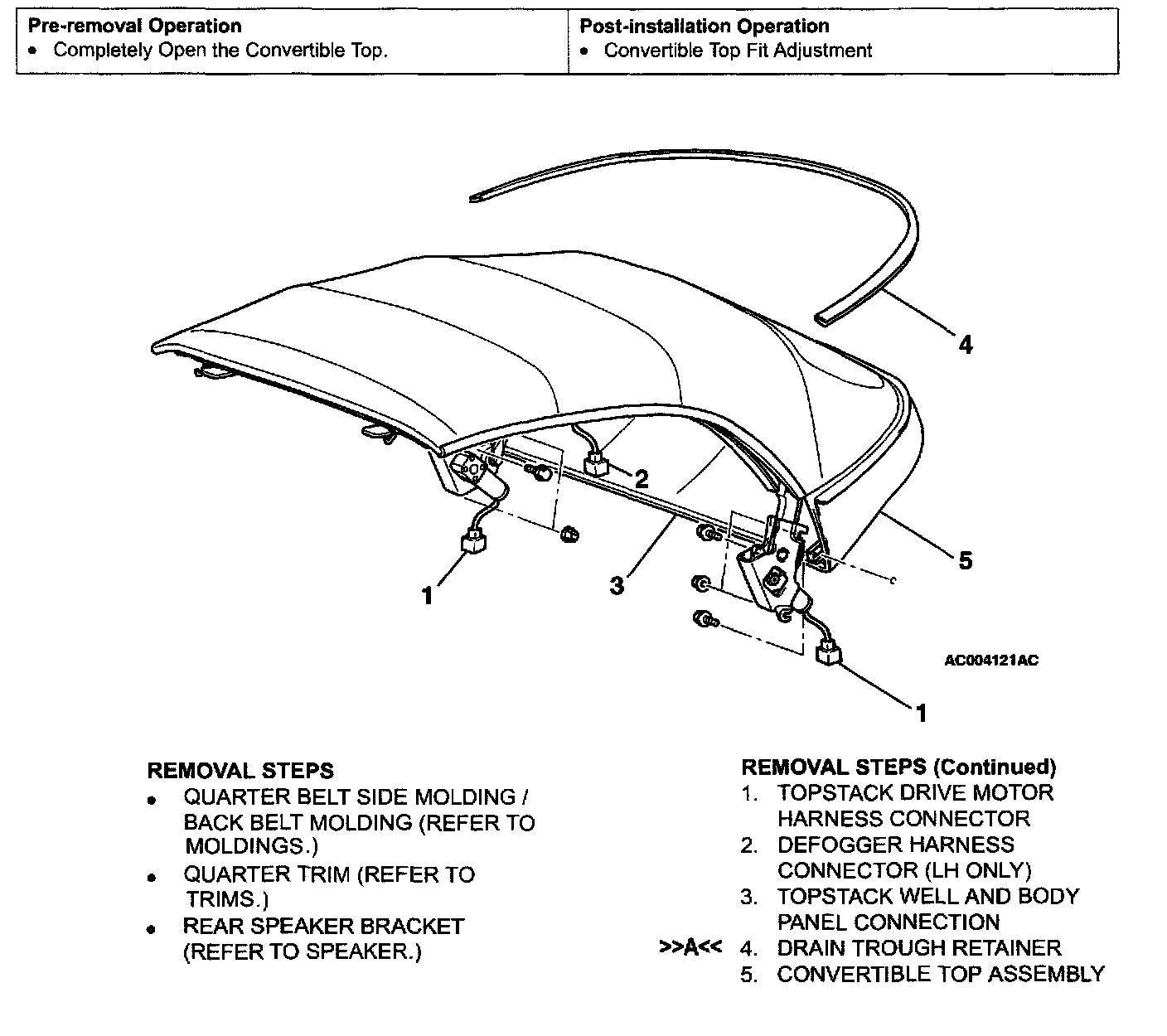

Convertible Top Assembly

Convertible Top Assembly:

INSTALLATION SERVICE POINT

]]A[[ DRAIN TROUGH RETAINER INSTALLATION
When the top cover assembly is replaced, cut out the rear end of the top cover assembly.
1. Install the drain trough retainer so that the drain trough around the rear end of the top cover assembly covers a suitable dimension.

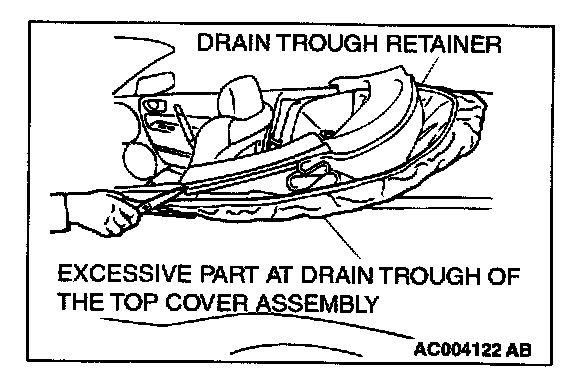

2. Cut out an excessive part at the rear end of the top cover assembly as shown.
