Electrical Diagrams

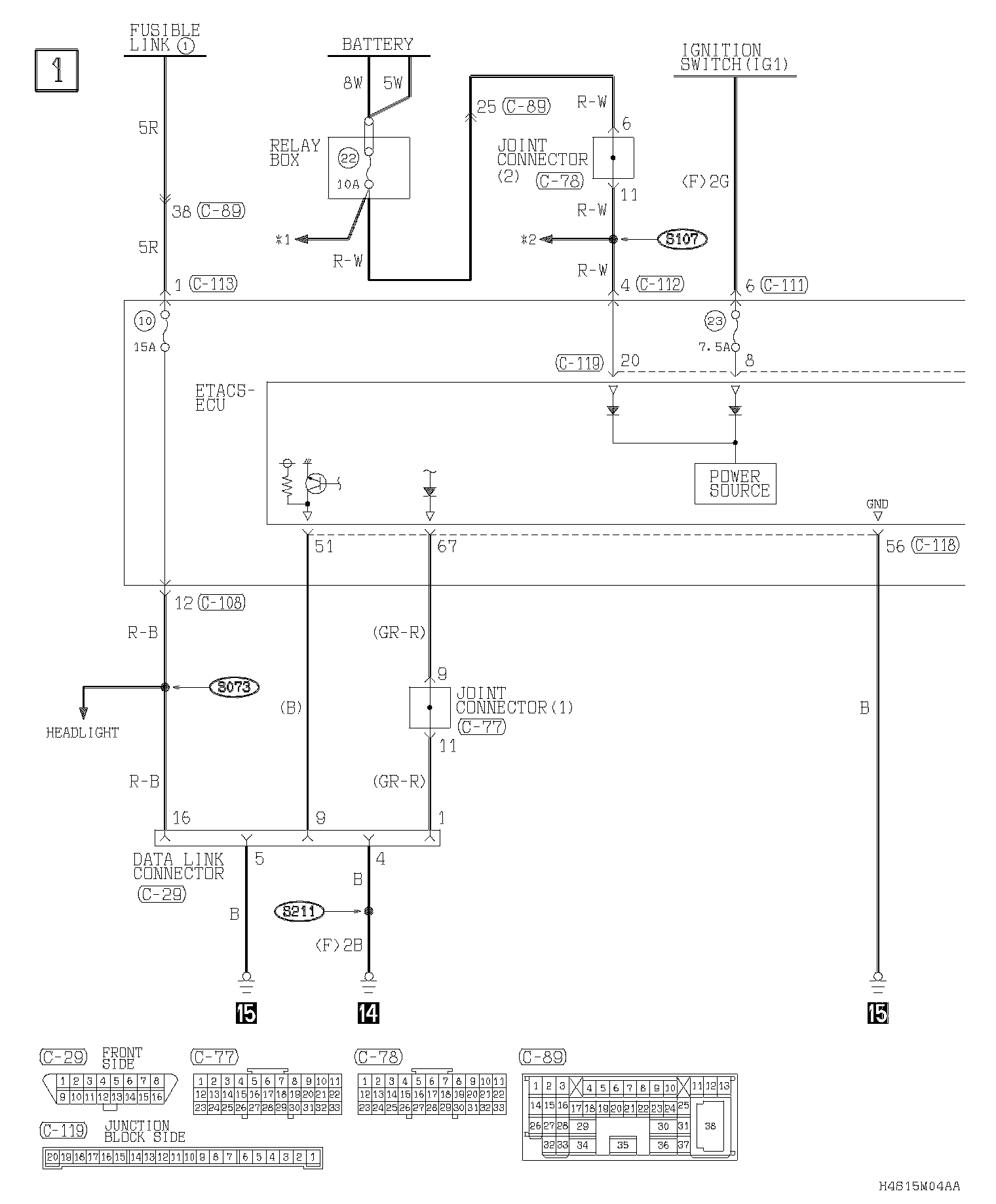

Convertible Top Part 1:

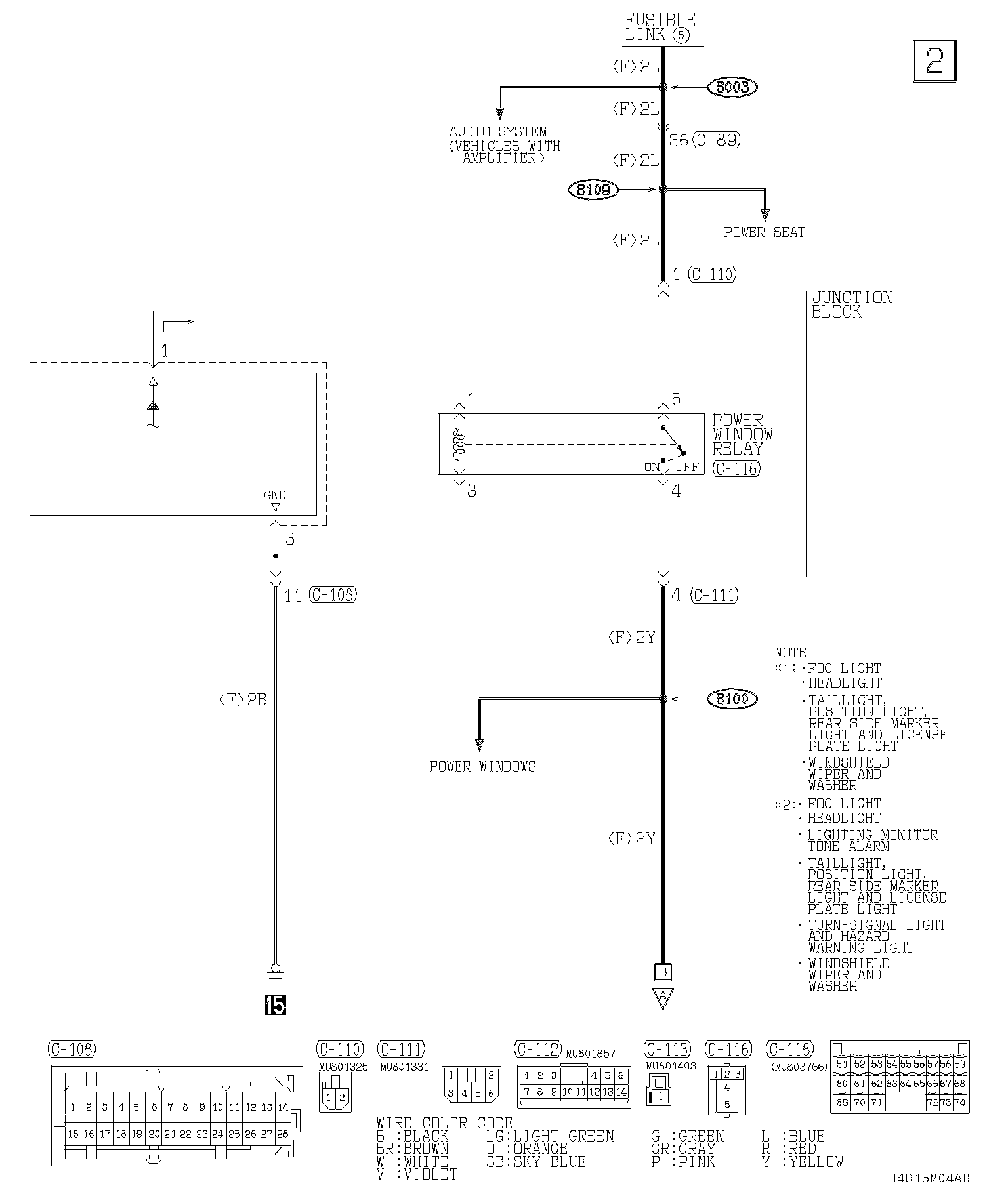

Convertible Top Part 2:

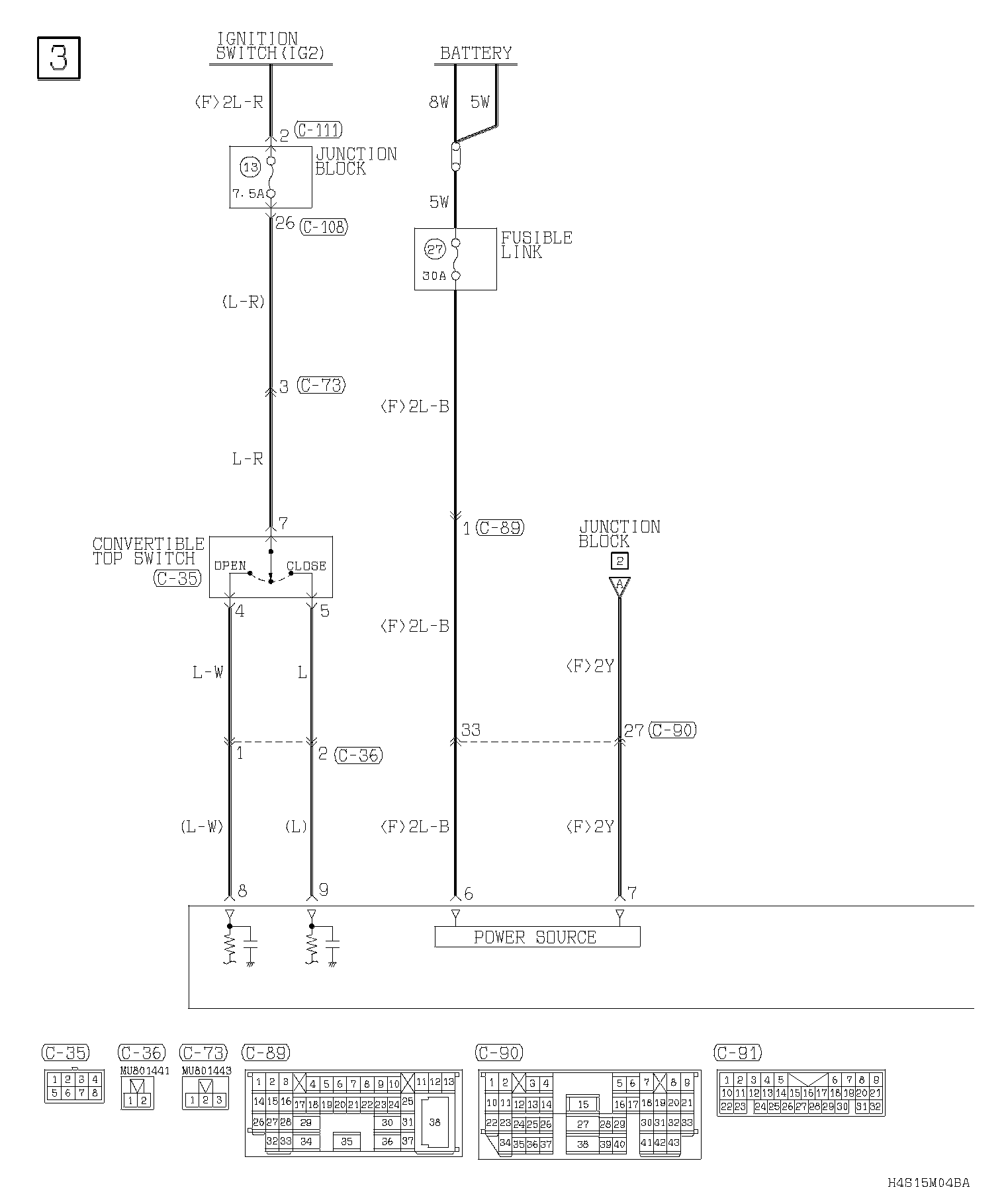

Convertible Top Part 3:

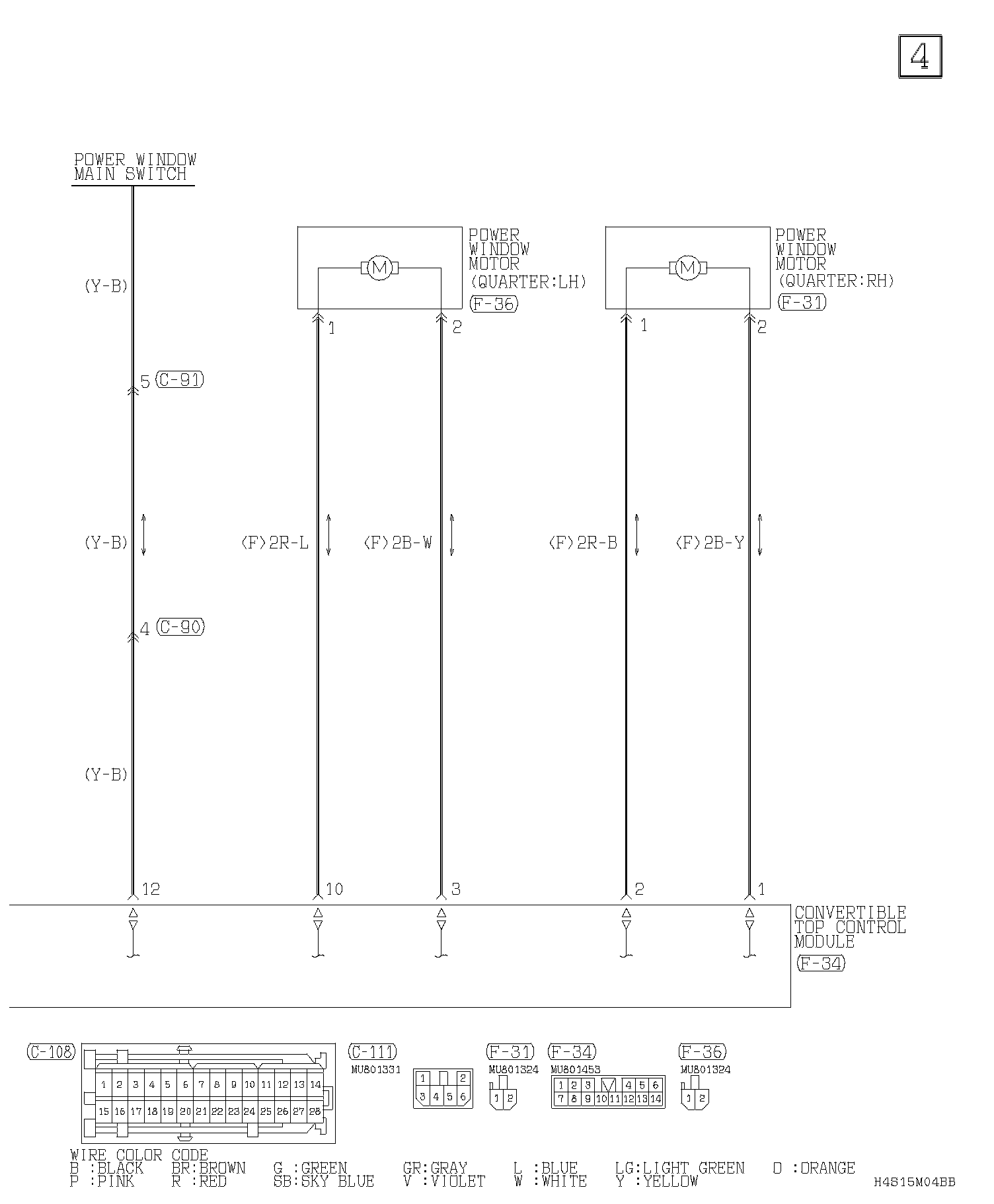

Convertible Top Part 4:

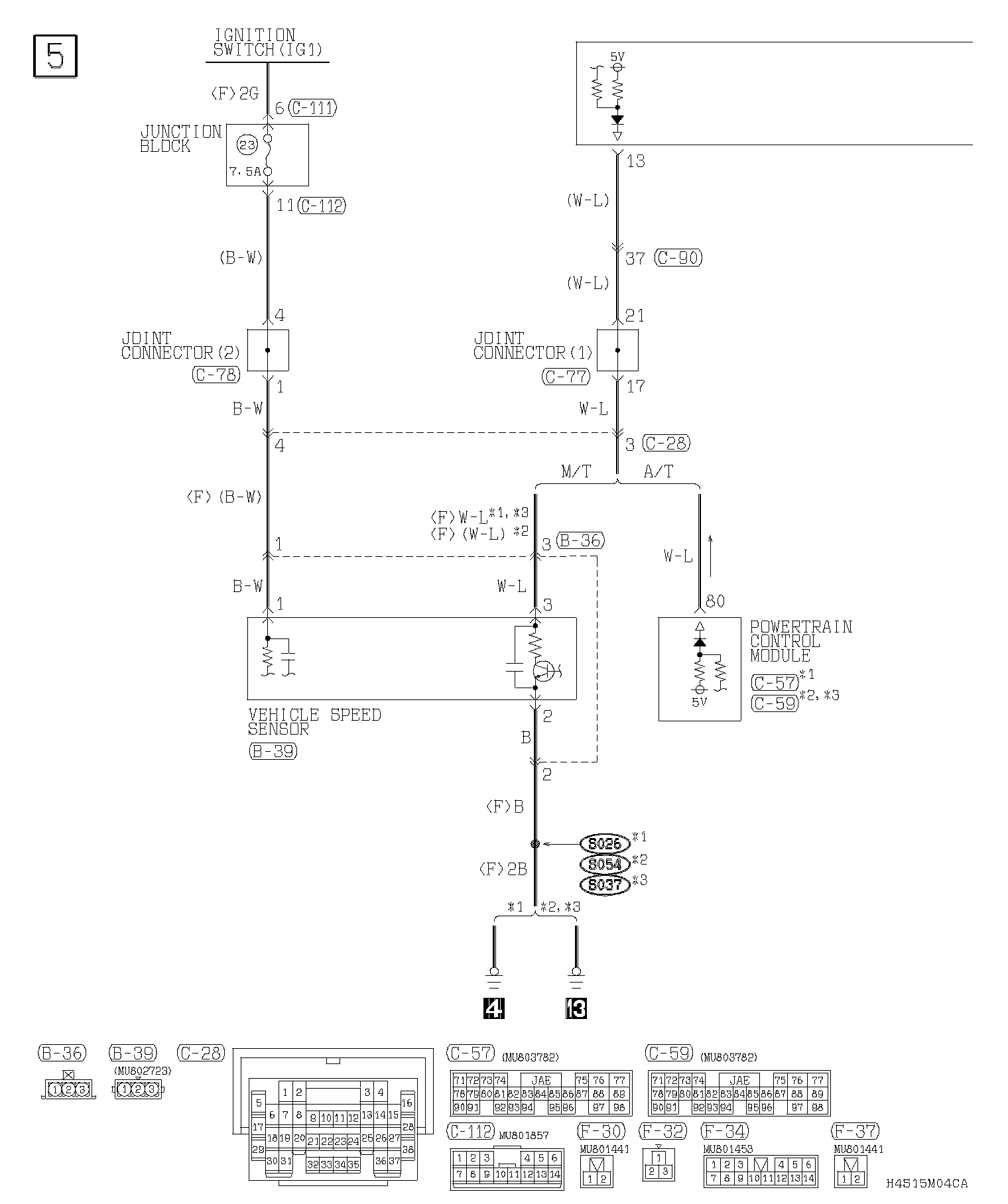

Convertible Top Part 5:

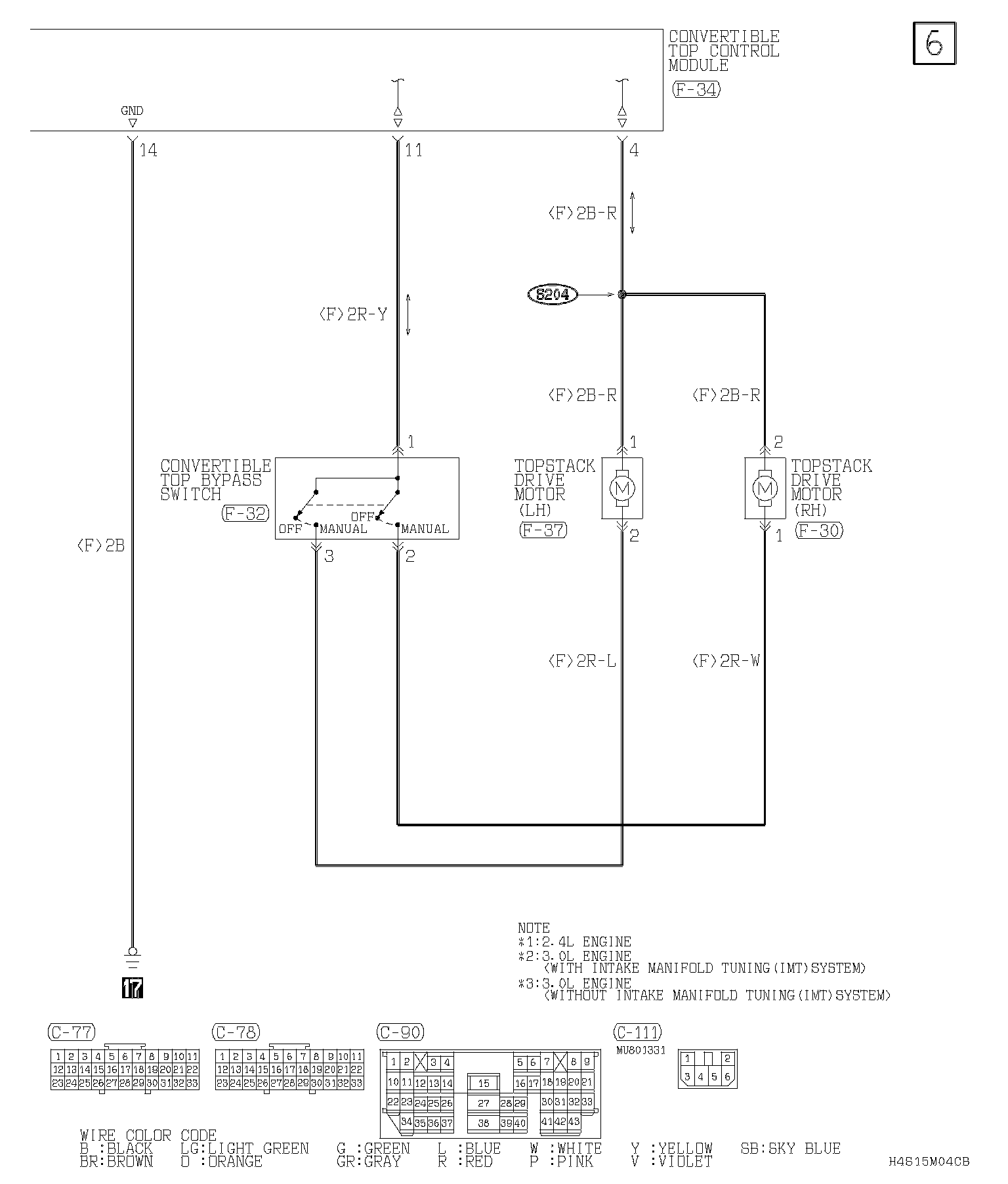

Convertible Top Part 6:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
