Convertible Top Motor: Service and Repair

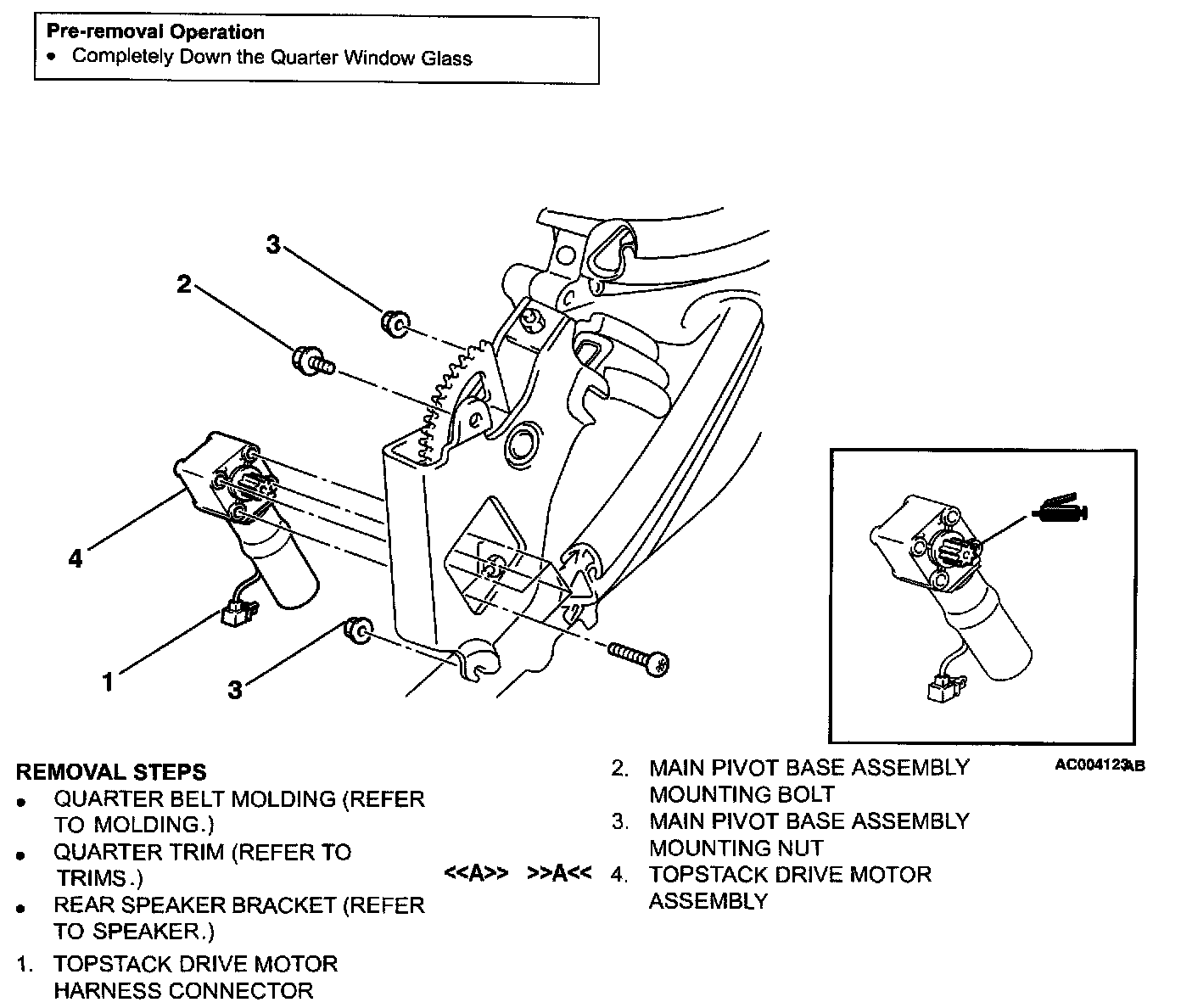

Topstack Drive Motor

Topstack Drive Motor:

REMOVAL SERVICE POINT

[[A]] TOPSTACK DRIVE MOTOR ASSEMBLY REMOVAL
1. Lift the main pivot base assemblies at the same time as a set.
2. Remove the topstack drive motor.

INSTALLATION SERVICE POINT

]]A[[ TOPSTACK DRIVE MOTOR ASSEMBLY INSTALLATION
1. Lift the main pivot base assemblies at the same time as a set.
2. Open the convertible top fully, and install the topstack drive motor.
