Home >> Mitsubishi >> 2004 >> Eclipse V6-3.0L SOHC >> Repair and Diagnosis >> Body and Frame >> Locks >> Power Locks >> Power Door Lock Actuator >> Testing and Inspection

Power Door Lock Actuator: Testing and Inspection

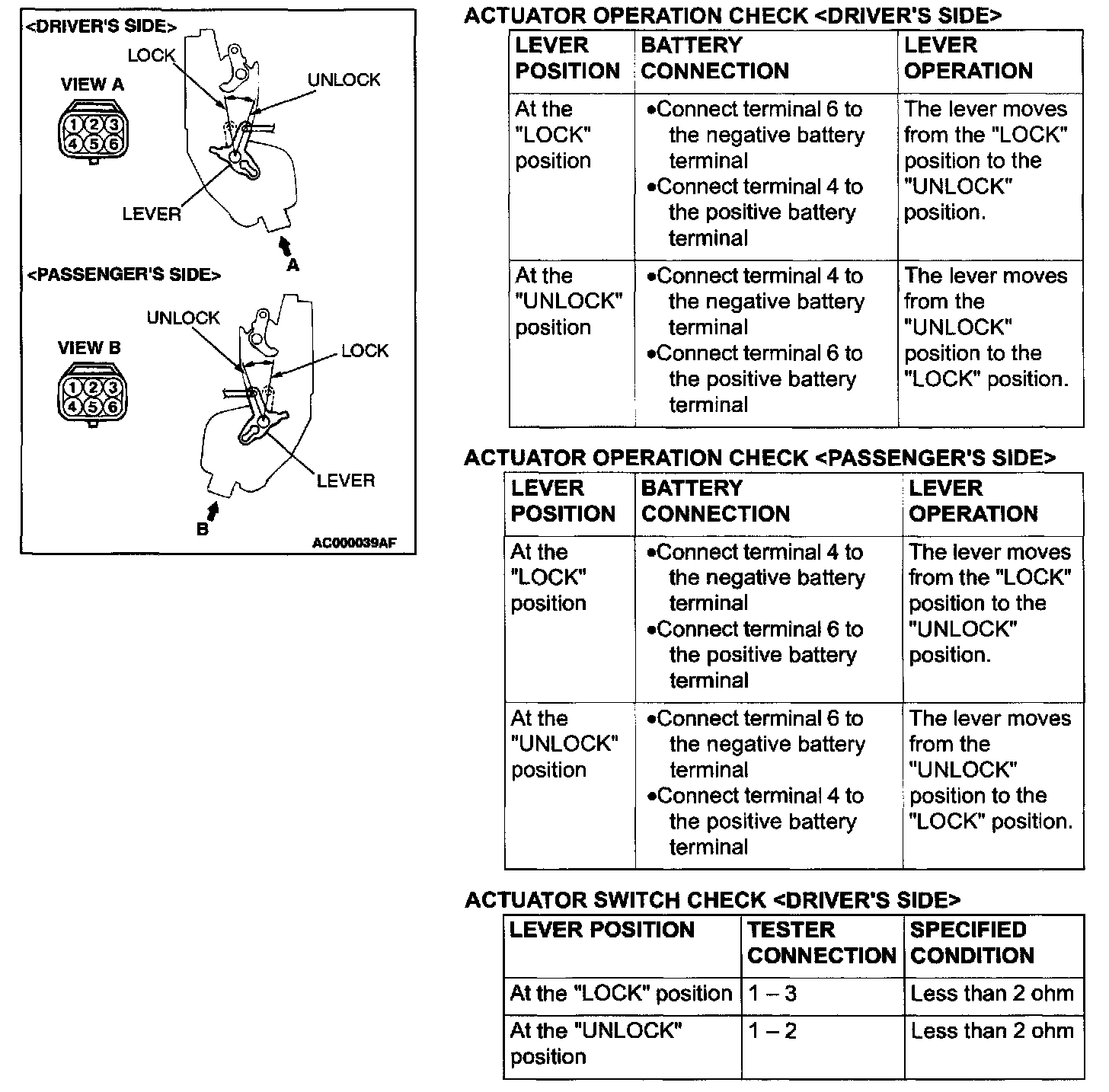

Door Lock Actuator Check:
