With Keyless Entry System (Without Theft-Alarm System)

Central Door Locking System (Vehicles With Keyless Entry System (Without Theft-Alarm System)) Part 1:

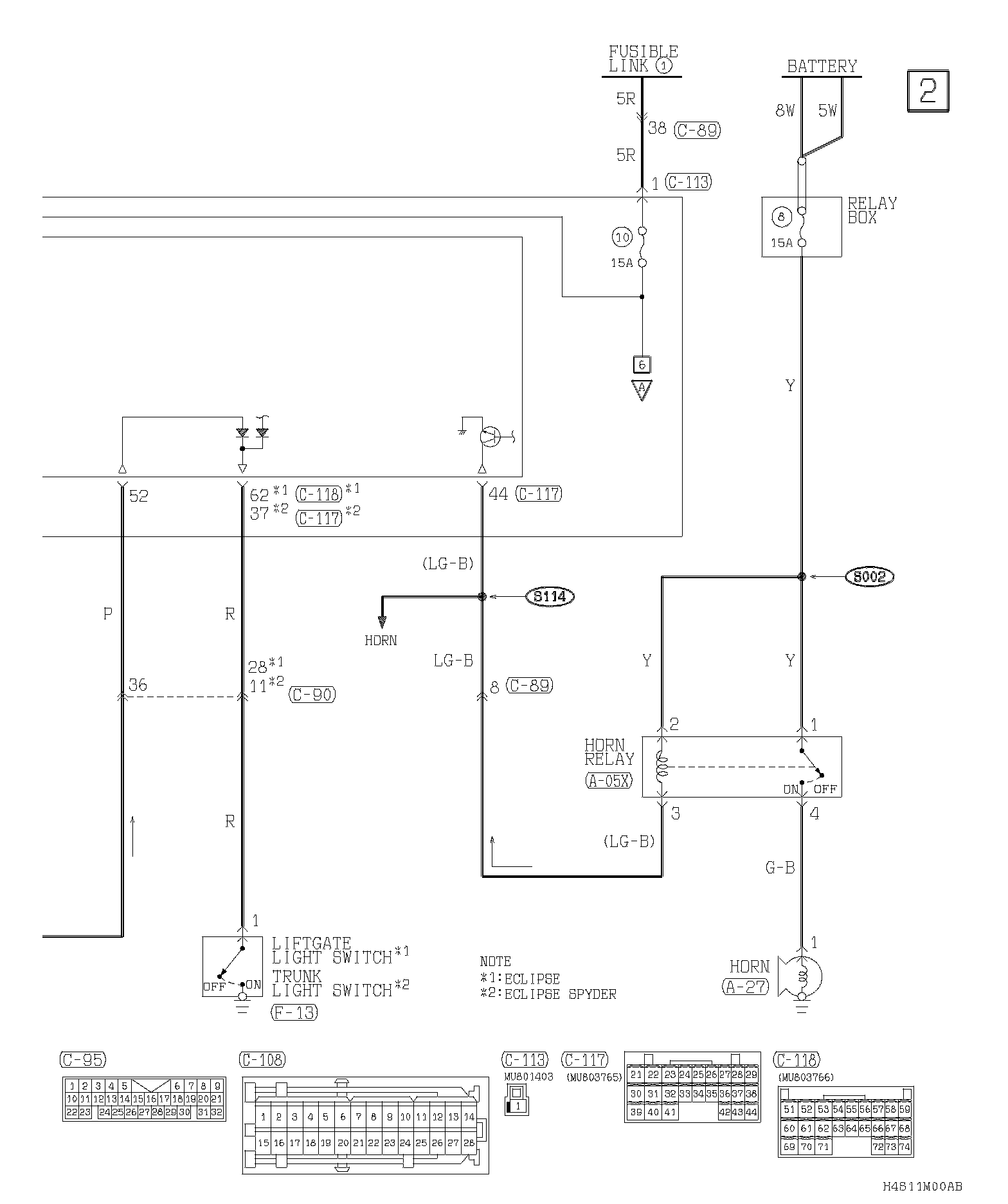

Central Door Locking System (Vehicles With Keyless Entry System (Without Theft-Alarm System)) Part 2:

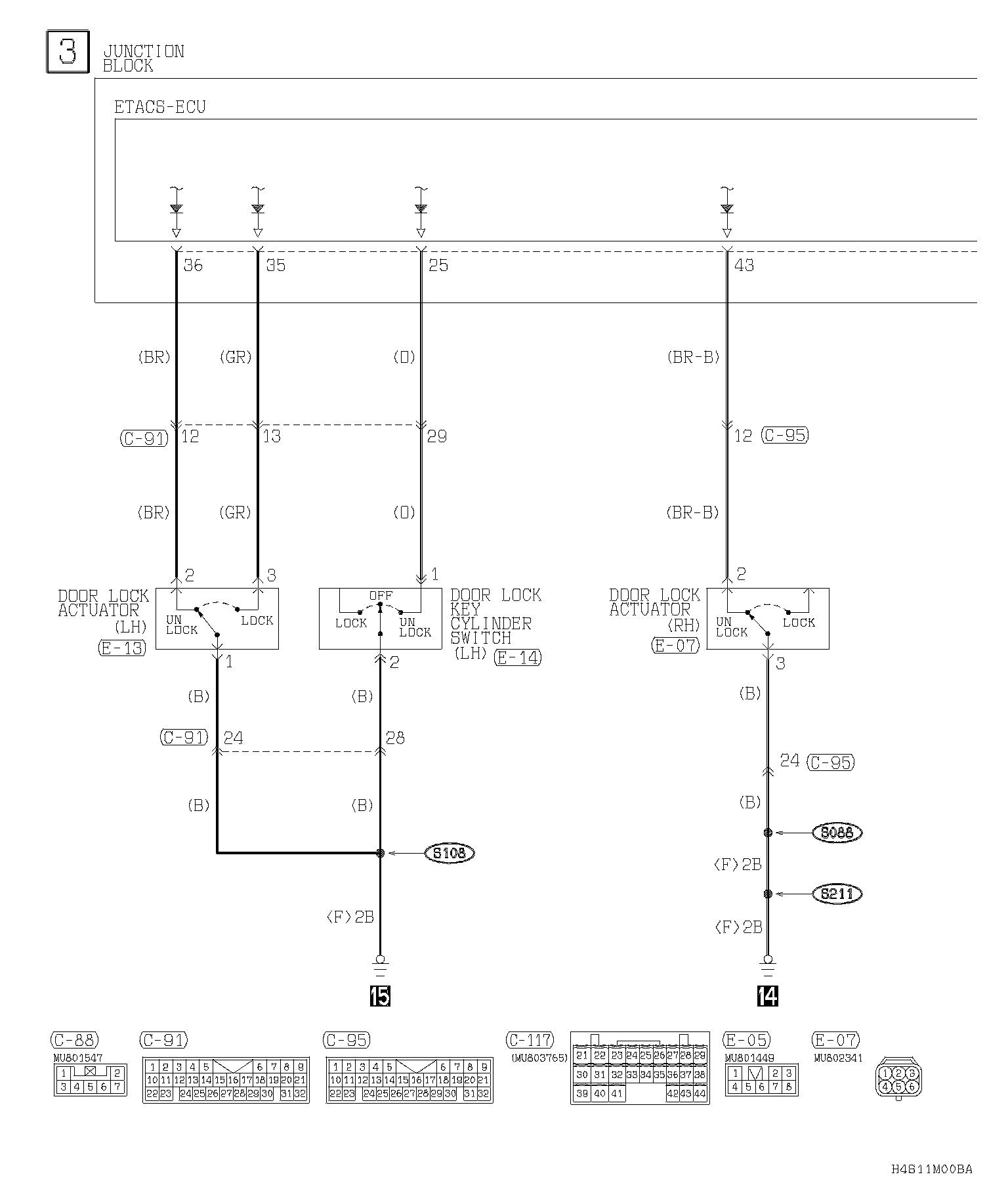

Central Door Locking System (Vehicles With Keyless Entry System (Without Theft-Alarm System)) Part 3:

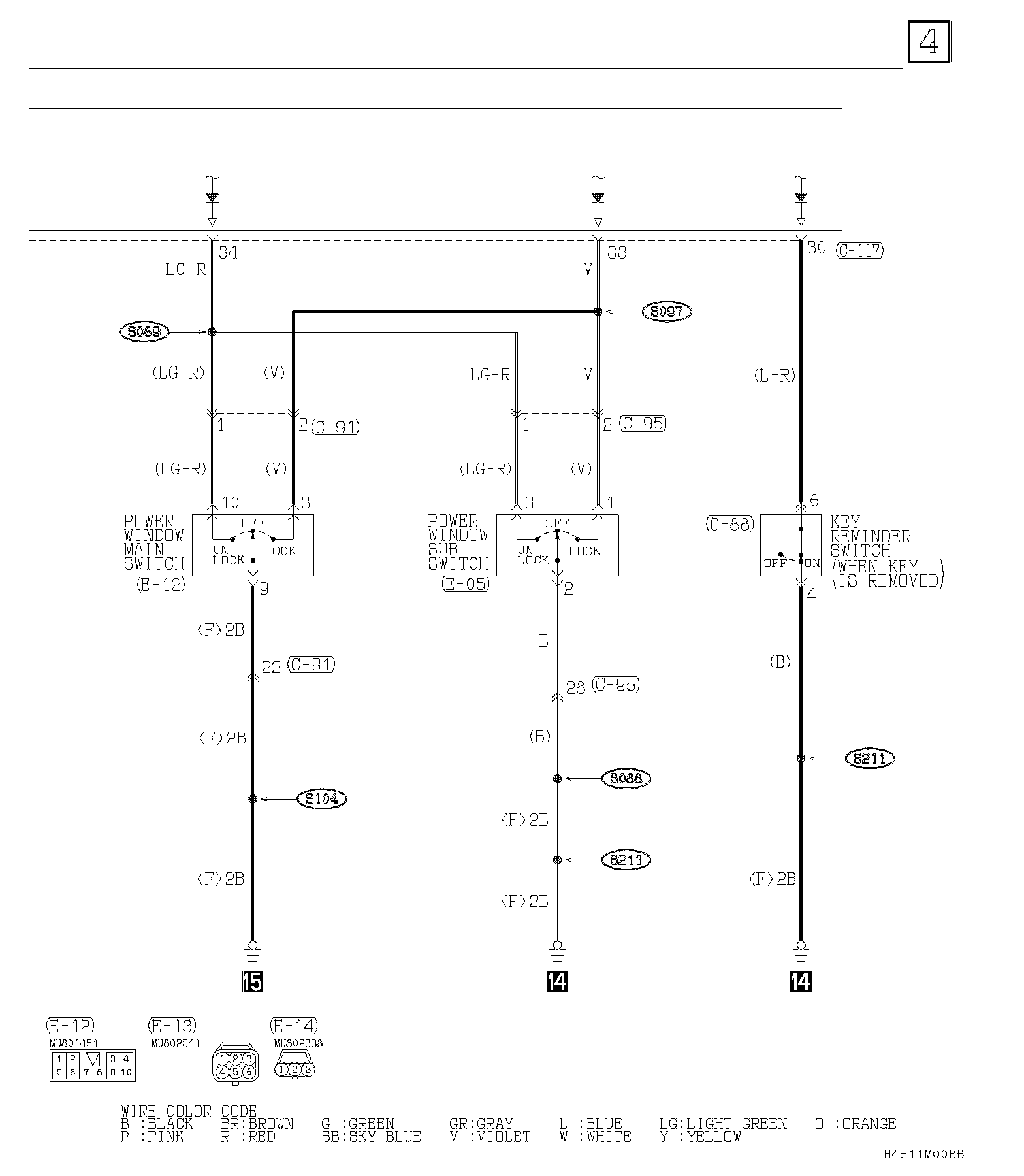

Central Door Locking System (Vehicles With Keyless Entry System (Without Theft-Alarm System)) Part 4:

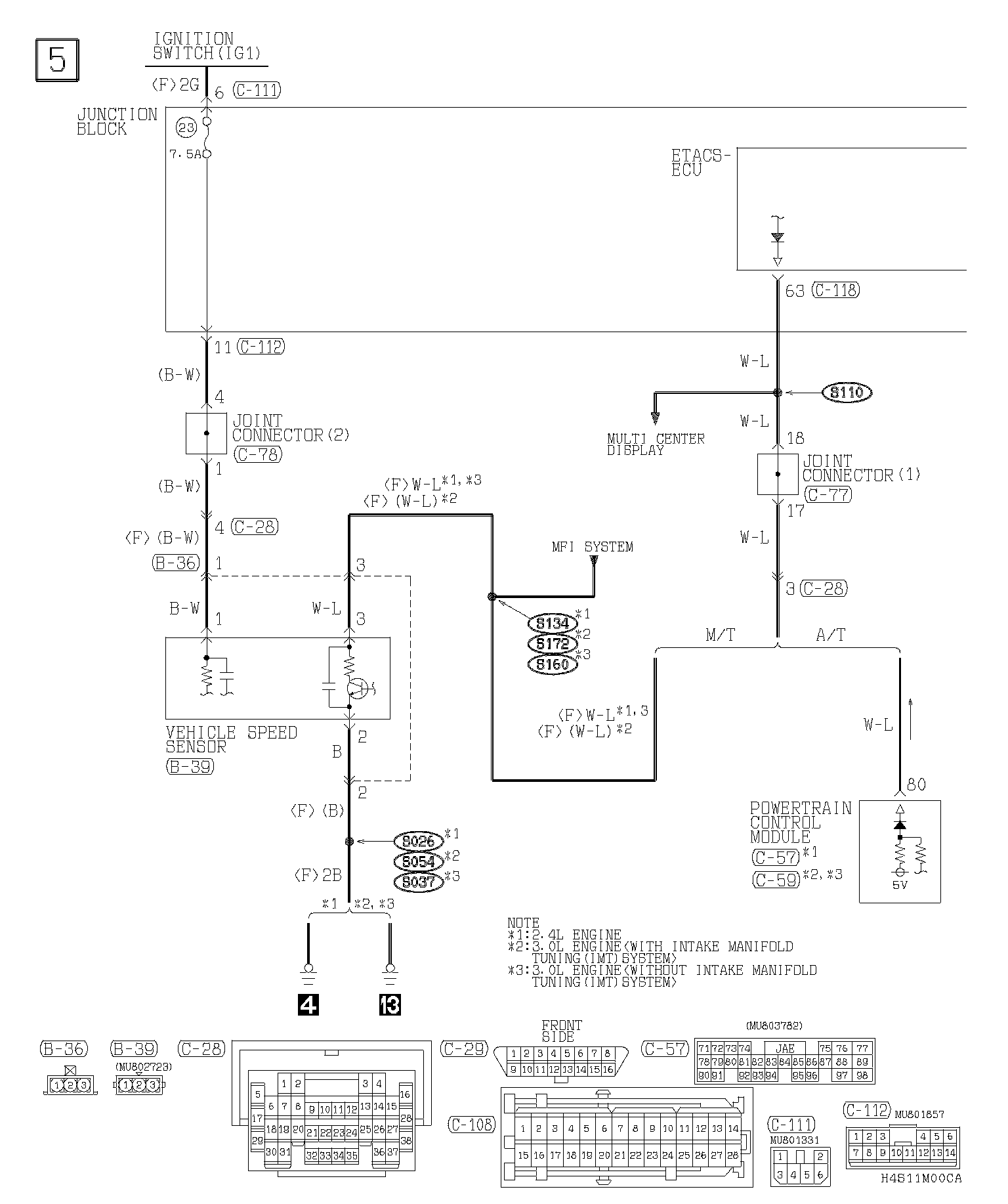

Central Door Locking System (Vehicles With Keyless Entry System (Without Theft-Alarm System)) Part 5:

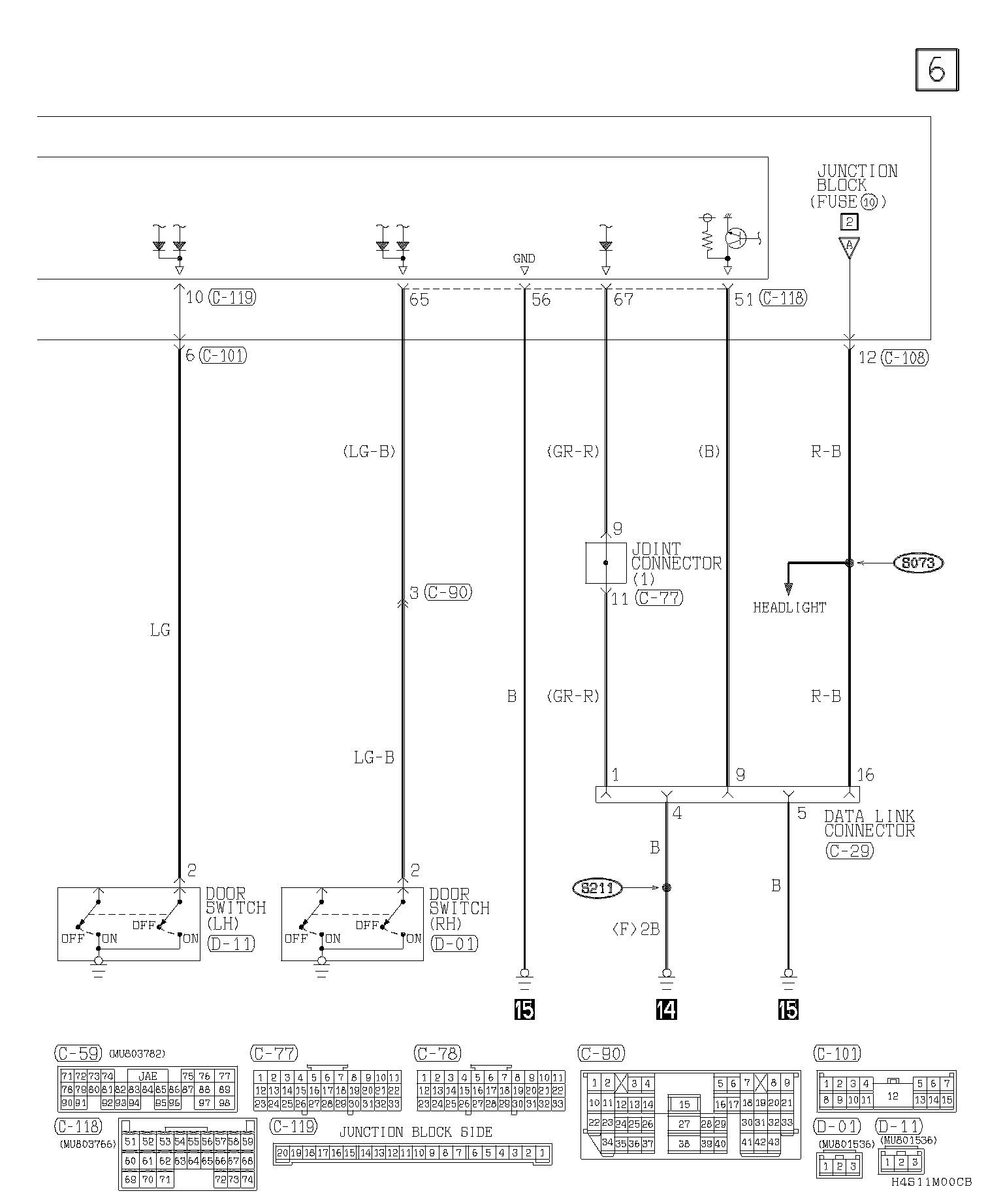

Central Door Locking System (Vehicles With Keyless Entry System (Without Theft-Alarm System)) Part 6:

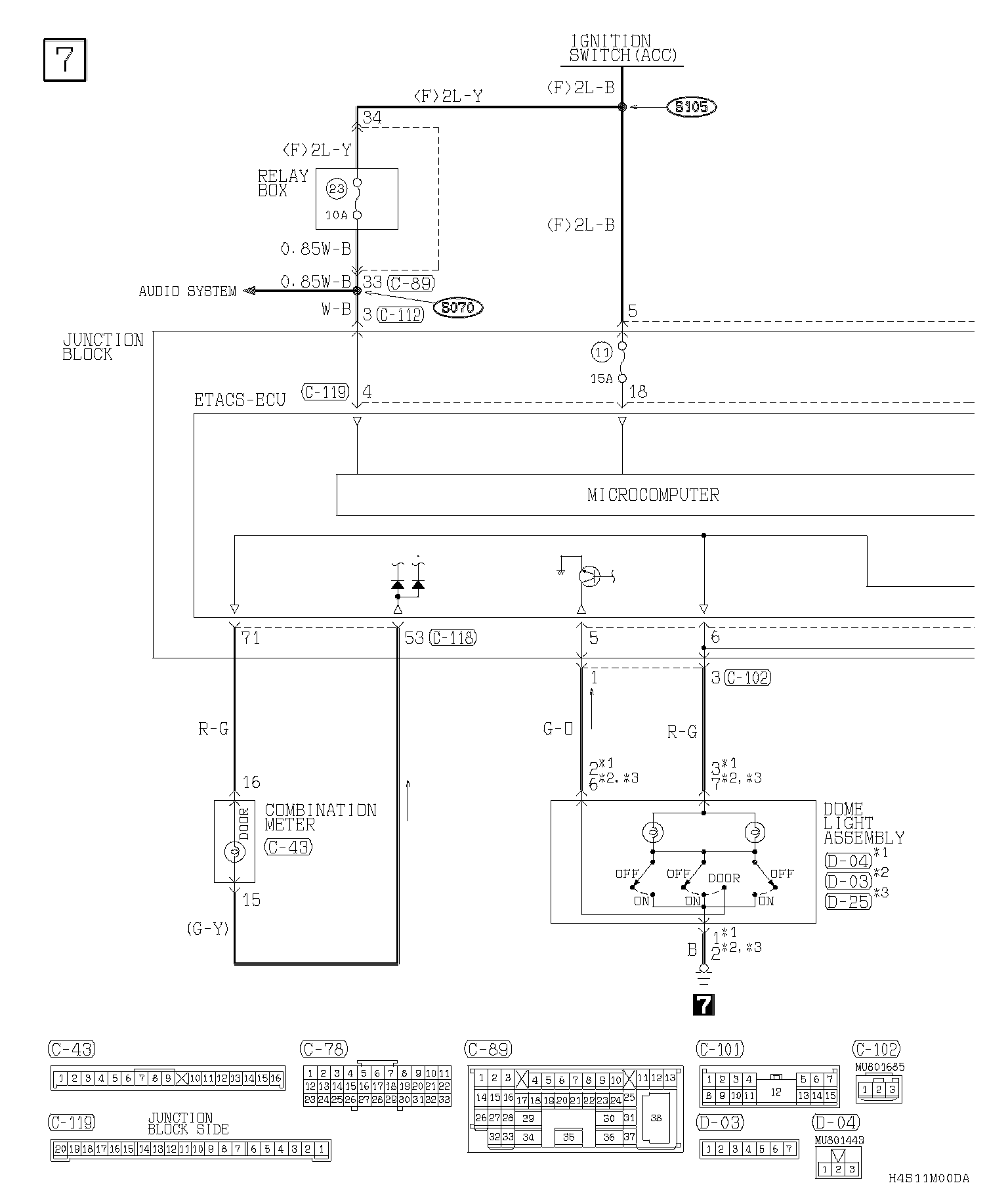

Central Door Locking System (Vehicles With Keyless Entry System (Without Theft-Alarm System)) Part 7:

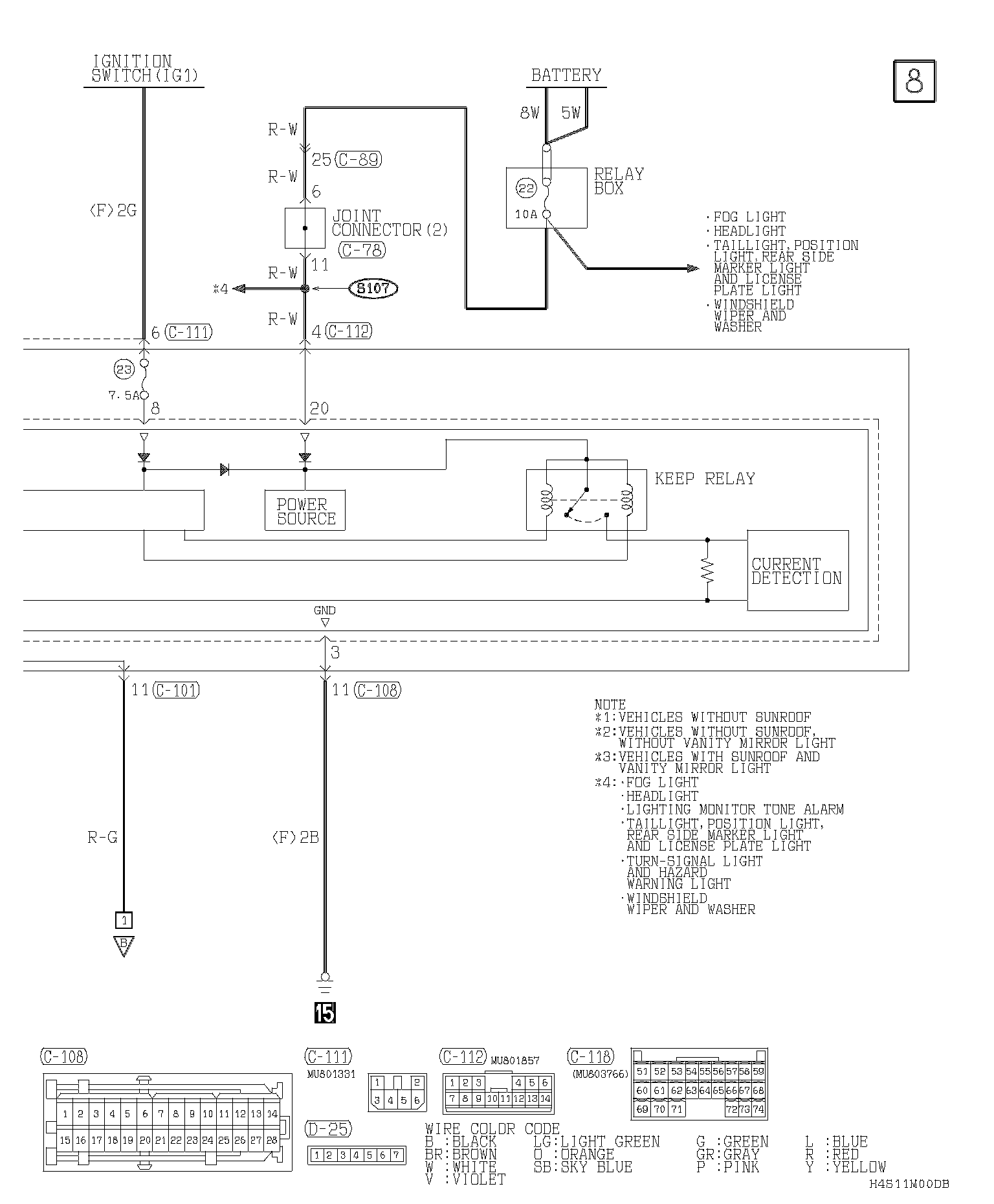

Central Door Locking System (Vehicles With Keyless Entry System (Without Theft-Alarm System)) Part 8:

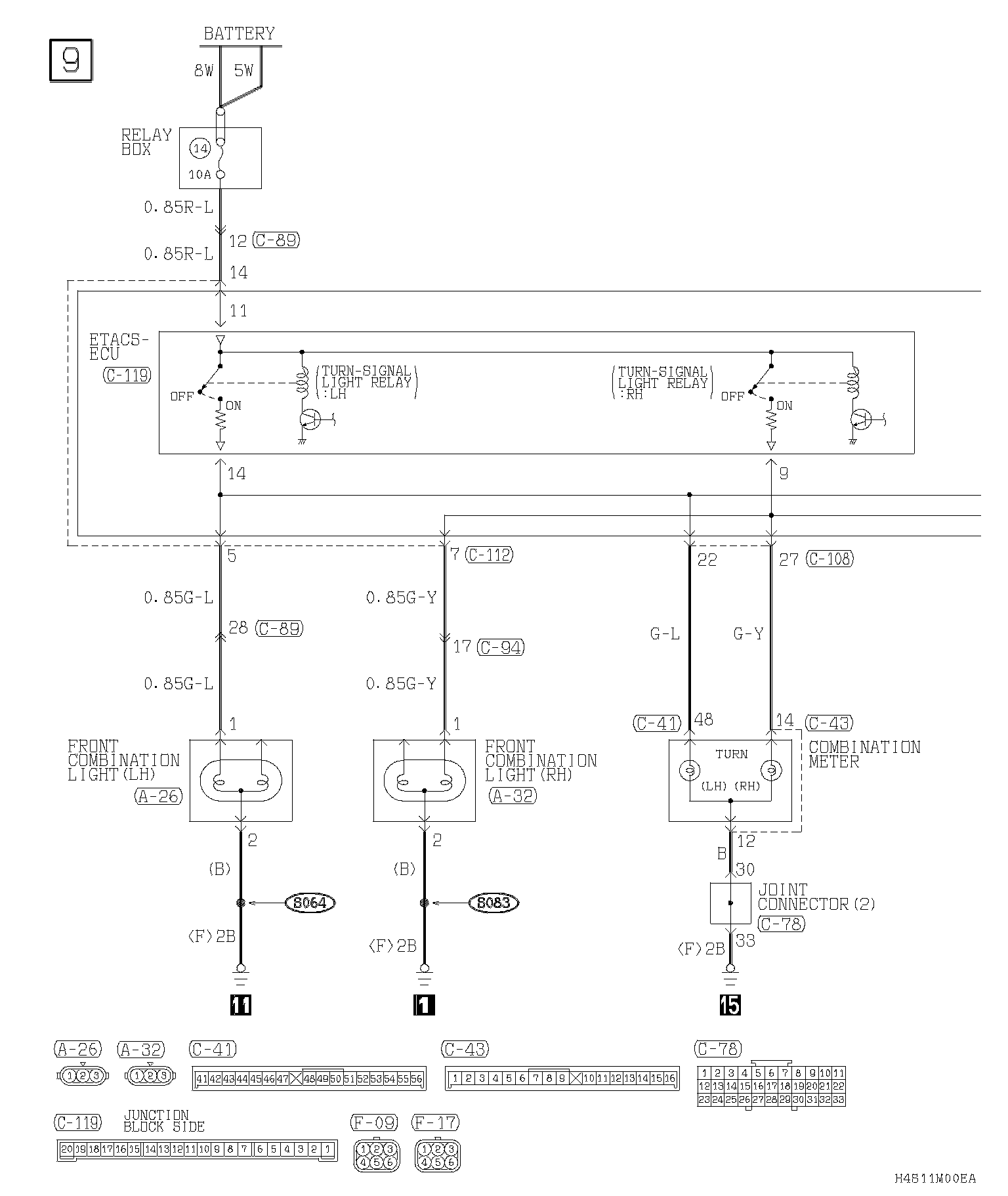

Central Door Locking System (Vehicles With Keyless Entry System (Without Theft-Alarm System)) Part 9:

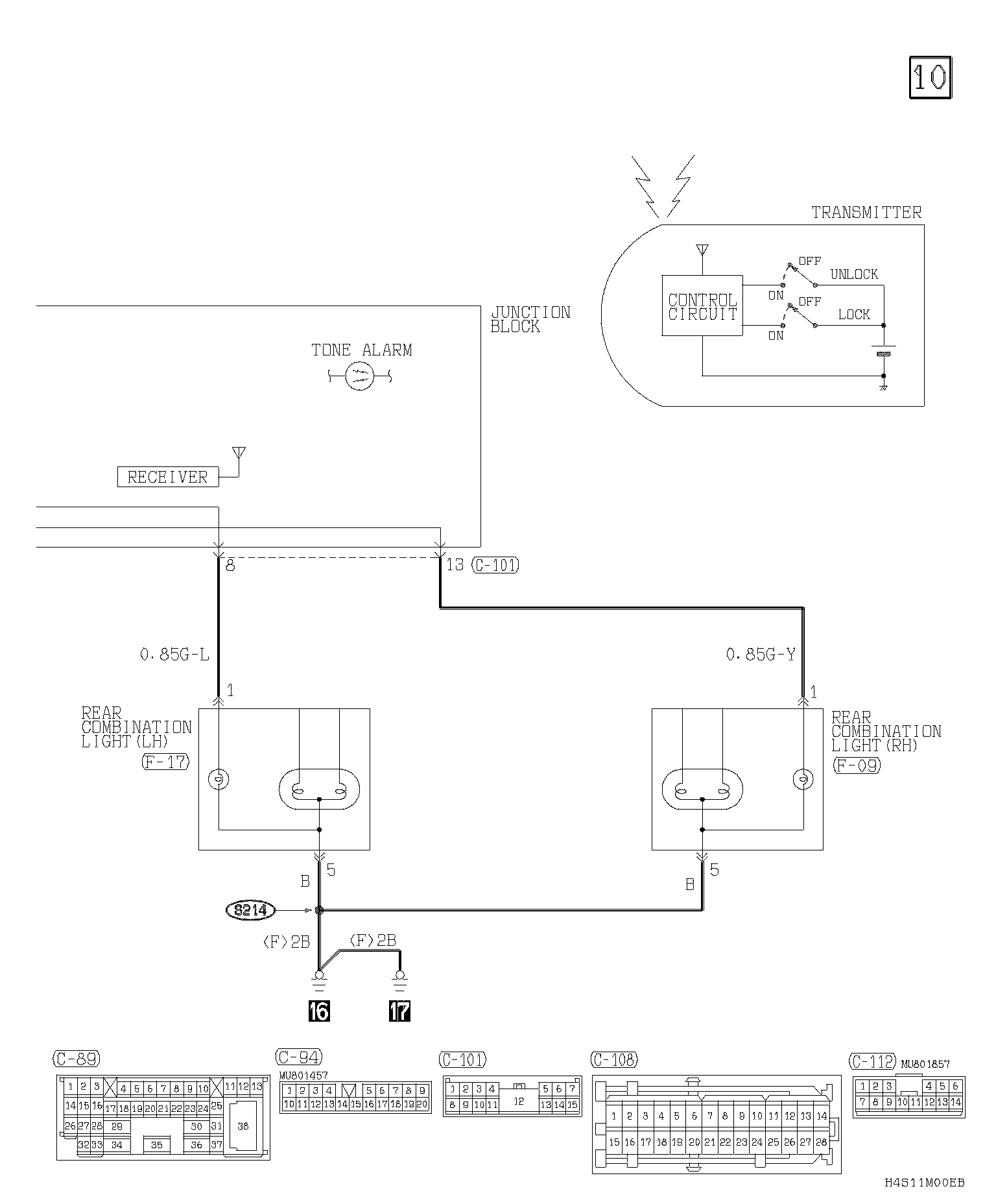

Central Door Locking System (Vehicles With Keyless Entry System (Without Theft-Alarm System)) Part 10:

Connector/Component Locations: The locations of connectors and components referred to within these diagrams can be found via the connector number at Vehicle Connector Locations. Connector Locations

Ground Locations: The locations of grounds referred to within these diagrams can be found via the ground number at Vehicle Ground Locations. Ground Locations
