Home >> Mitsubishi >> 2004 >> Eclipse V6-3.0L SOHC >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Trunk / Liftgate >> Trunk / Liftgate Interior Trim Panel >> Service and Repair

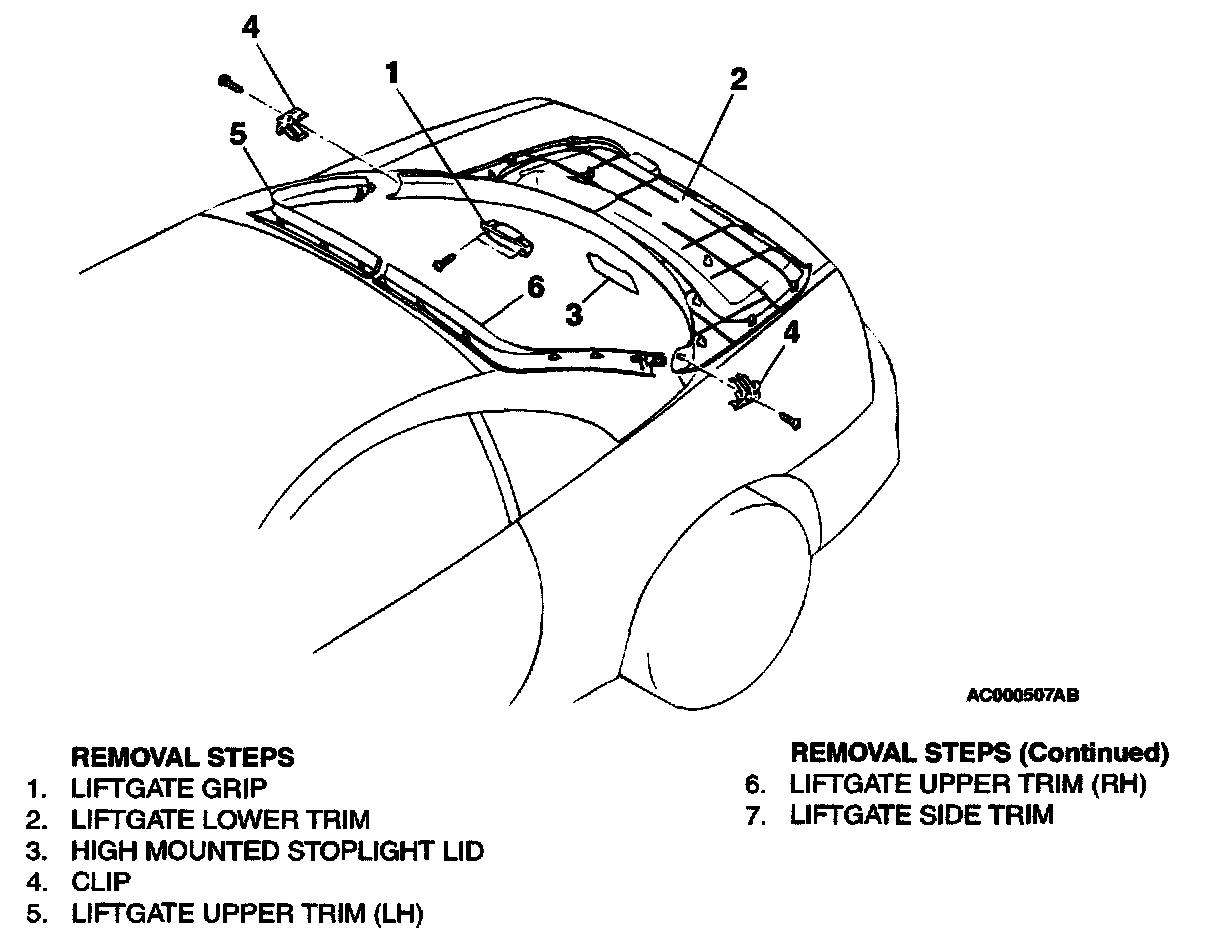

Trunk / Liftgate Interior Trim Panel: Service and Repair

Door Trim And Waterproof Film:

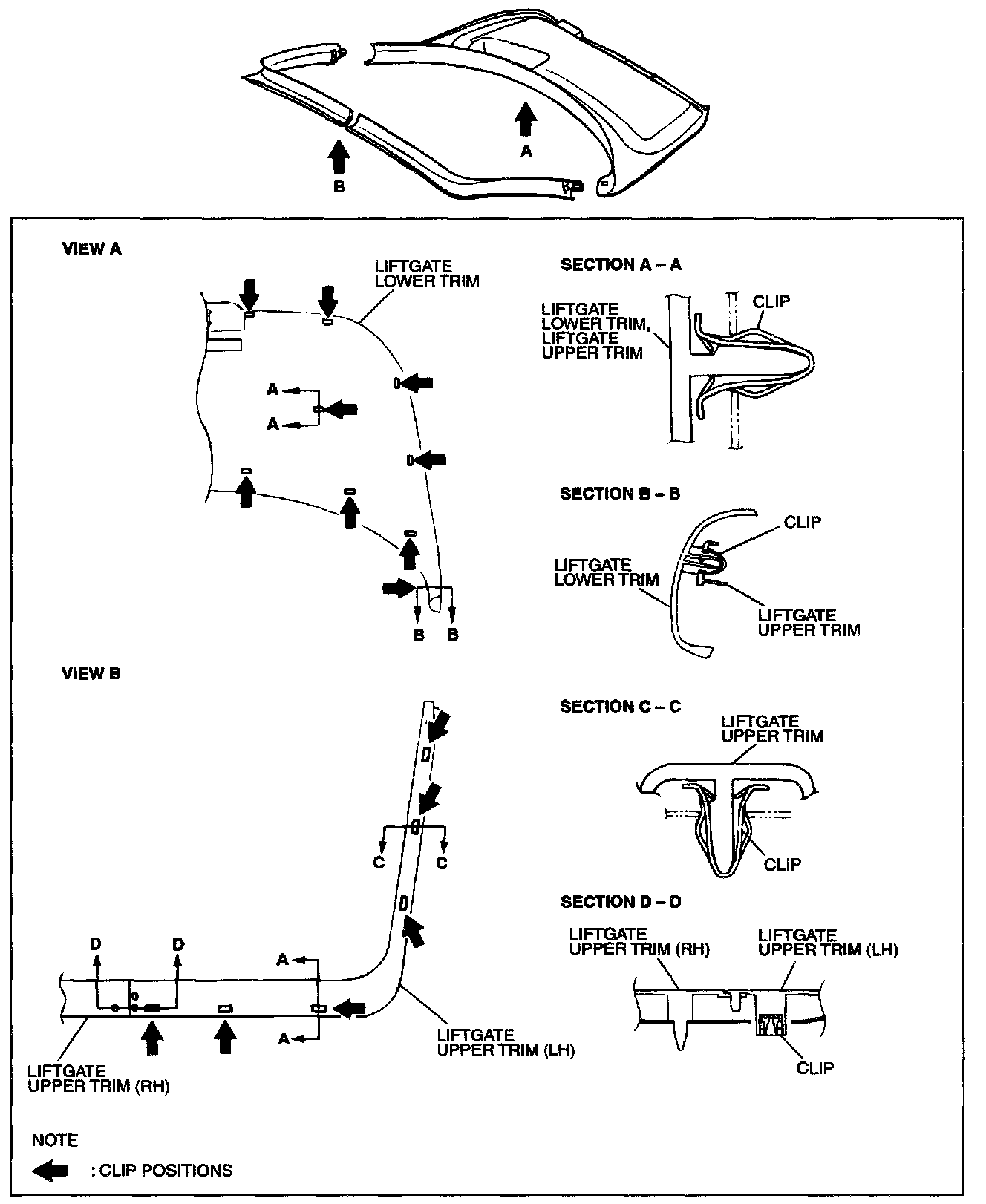

Clip And Positions:
