Trunk Lid

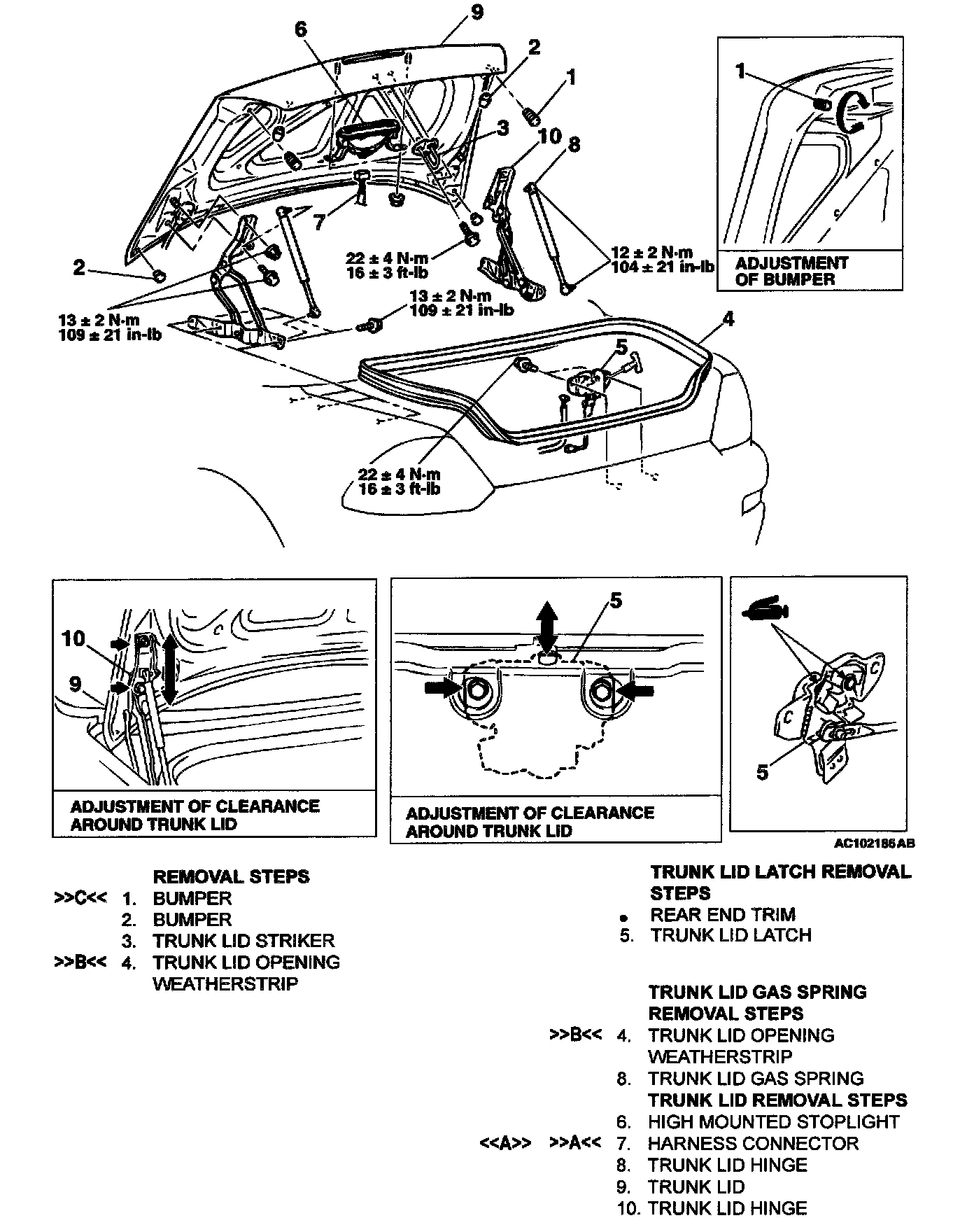

Trunk Lid:

CAUTION:
1. Never try to disassemble trunk lid gas spring.
2. Always bore a hole in the gas spring to release the interior gas before the spring is discarded.
3. Keep the trunk lid gas spring away from fire or flame.

REMOVAL SERVICE POINT

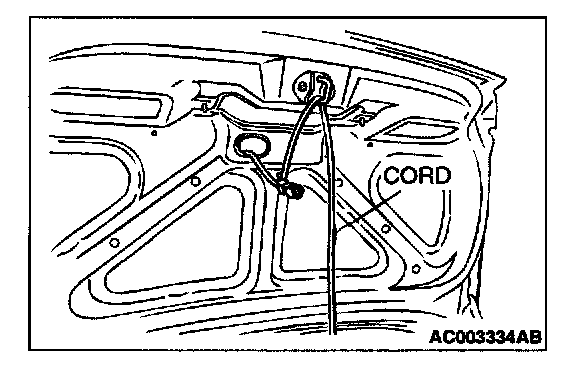

[[A]] HARNESS CONNECTOR REMOVAL
Removal the grommet Tie a cord to the end of the harness connector, wind plastic tape around it so that there is no other side.

INSTALLATION SERVICE POINTS




]]A[[ HARNESS CONNECTOR INSTALLATION

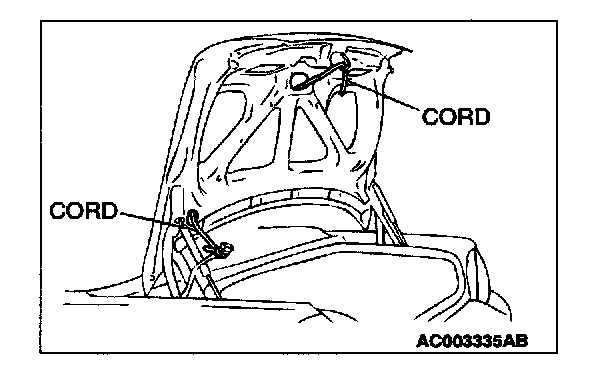

1. Tie the cord that was used during removal to the end of the harness connector, wind plastic tape around it so that there is no unevenness.
2. Pull the cord to pull through the harness connector.
3. Install the grommet.

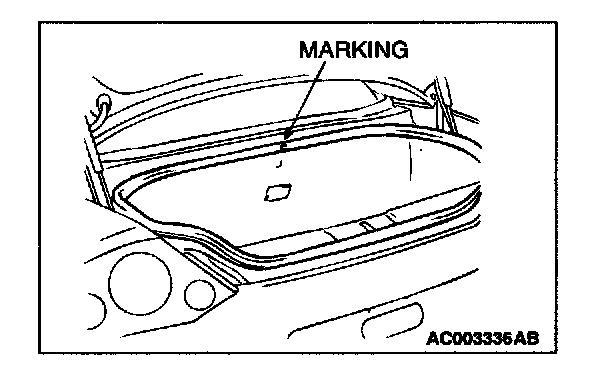

]]B[[ TRUNK LID OPENING WEATHERSTRIP INSTALLATION
Install the trunk lid opening weatherstrip so that its marking is positioned at the center of the vehicle.

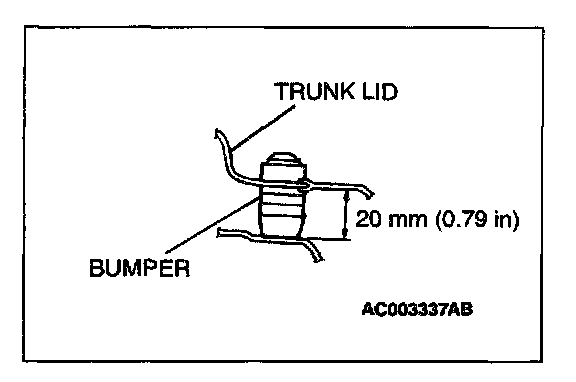

]]C[[ BUMPER INSTALLATION
Install the bumper as shown in figure.

Be sure they are adjusted so the trunk lid is even with the rear fenders and body on all sides.
