Liftgate

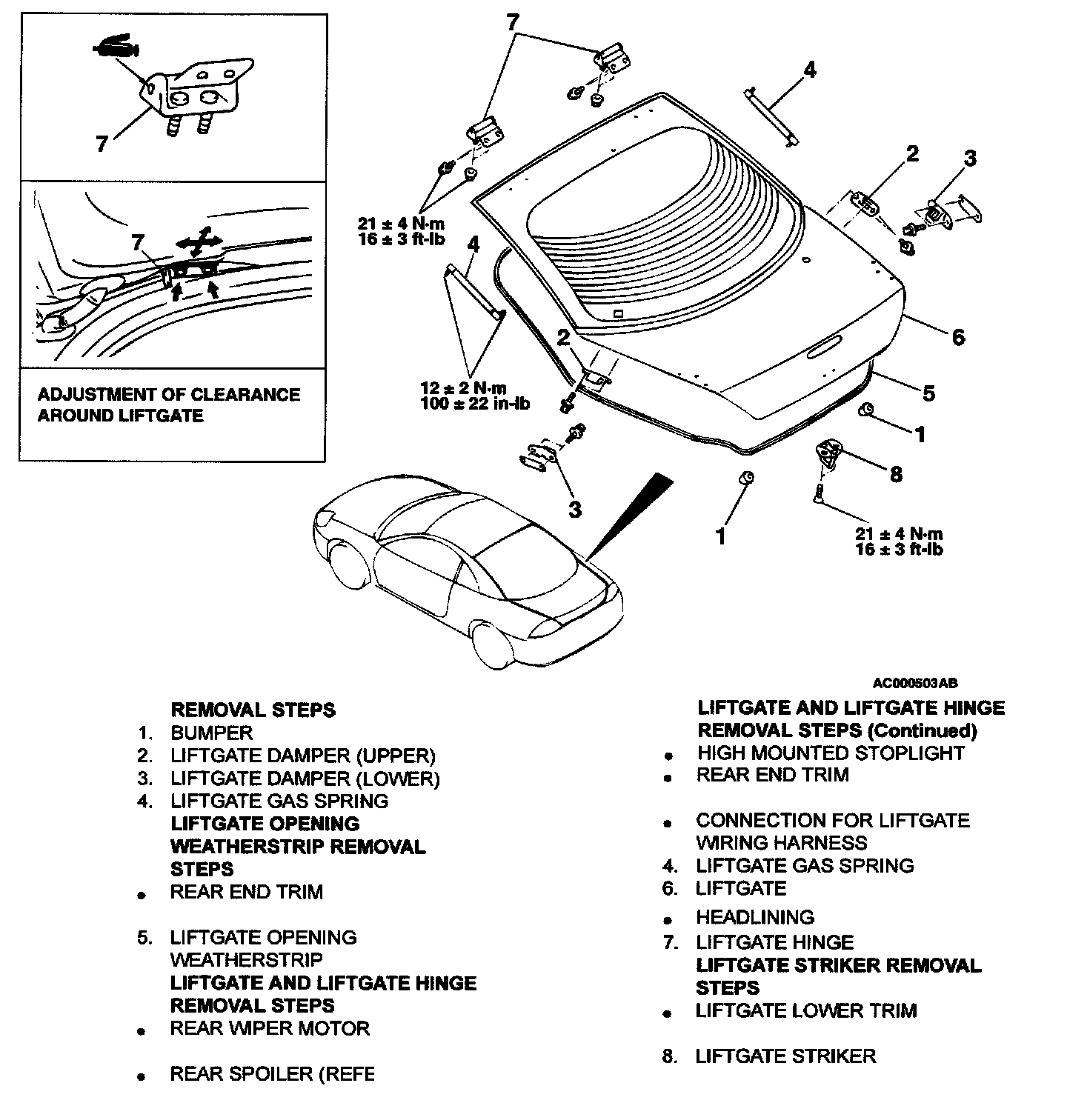

Liftgate:

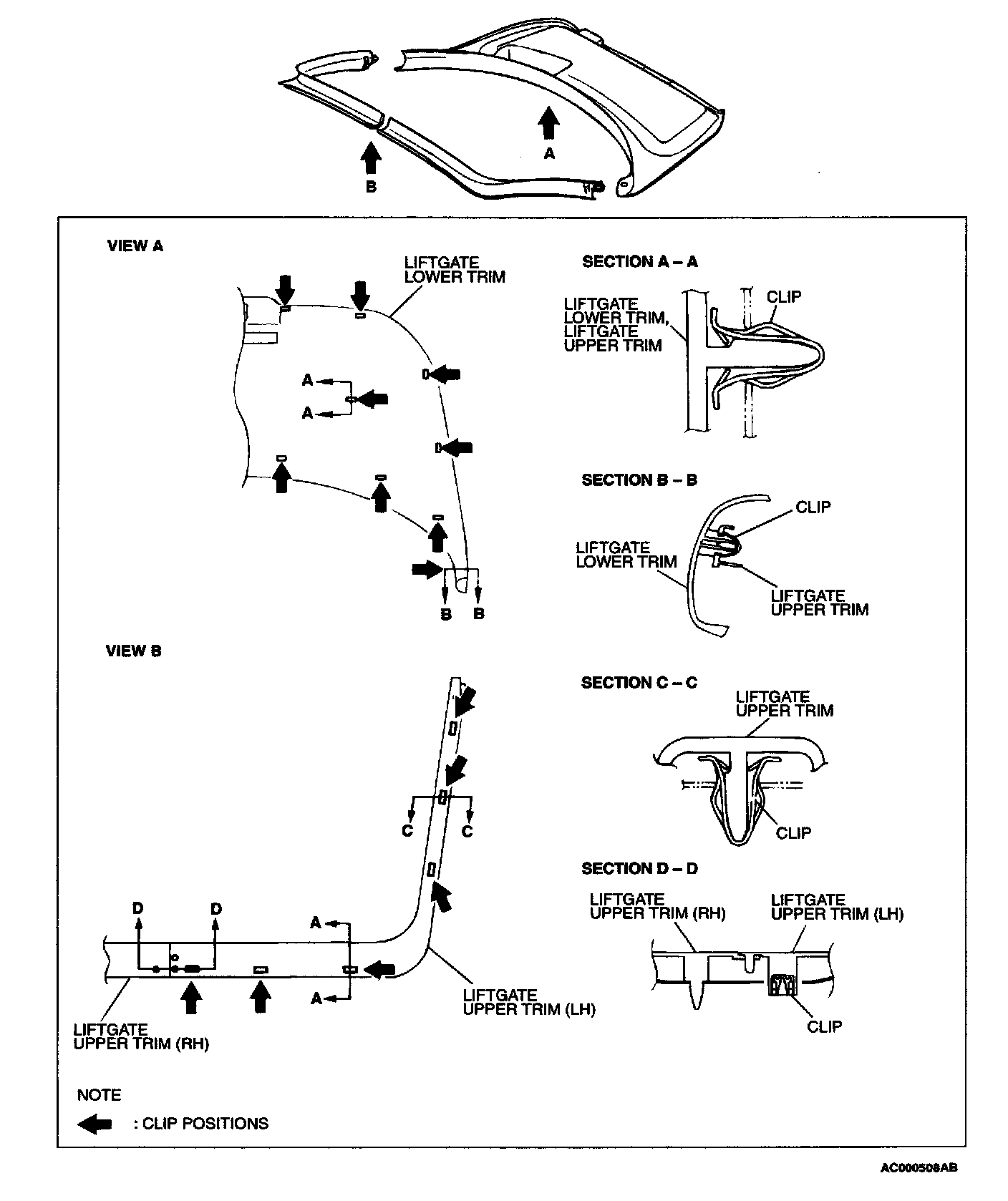

Liftgate Trim And Waterproof Film:

Clip And Positions:

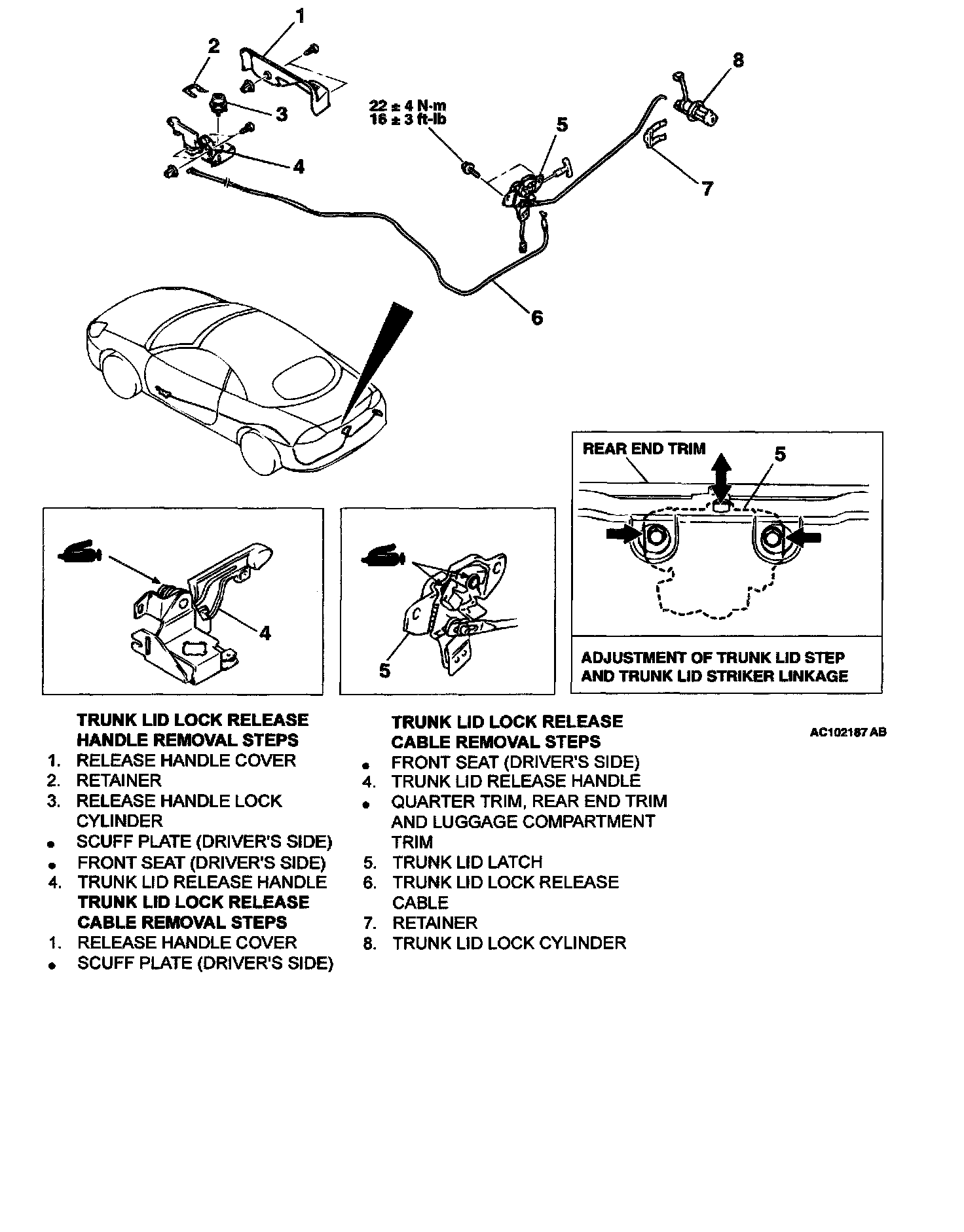

Trunk Lid Lock Release Handle and Cable:

CAUTION:
1. Never try to disassemble liftgate gas spring.
2. Always bore a hole in the gas spring to release the interior gas before the spring is discarded.
3. Keep the liftgate gas spring away from fire or flame.
