Power Trunk / Liftgate Lock Actuator: Testing and Inspection

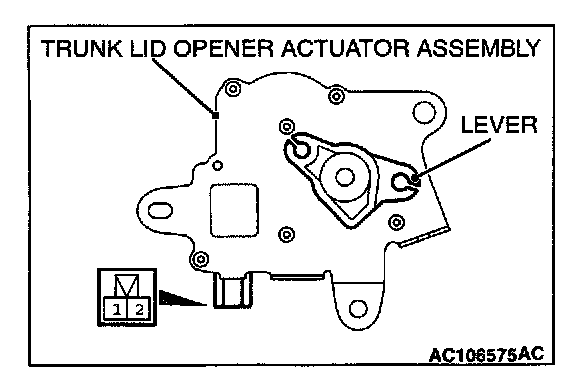

TRUNK LID OPENER ACTUATOR CHECK [VEHICLES WITH KEYLESS ENTRY SYSTEM]




1. Connect a battery (-) terminal to the trunk lid opener actuator assembly connector terminal No.2.
2. Connect a battery (+) terminal to the trunk lid opener actuator assembly connector terminal No.1 and check that the trunk lid opener actuator assembly lever move.
