Trunk Lid
TRUNK LIDADJUSTMENT OF TRUNK LID FIT

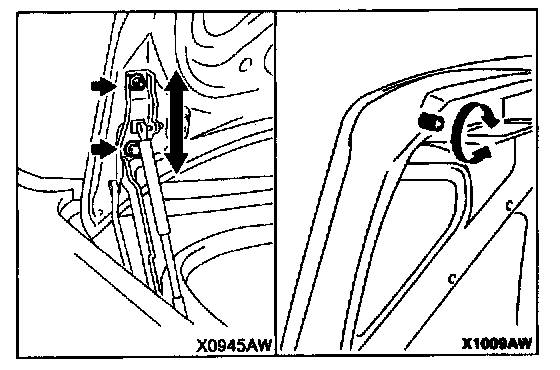

1. If the gap between the trunk lid and the body is uneven, loosen the trunk lid mounting bolts, and then move the trunk lid back and forth or side to side to adjust until the gap around the hood is even.
Trunk lid mounting bolt tightening torque: 16 N.m (111 in-lb)
2. Turn the trunk lid bumpers either left or right to adjust the height of the trunk lid.

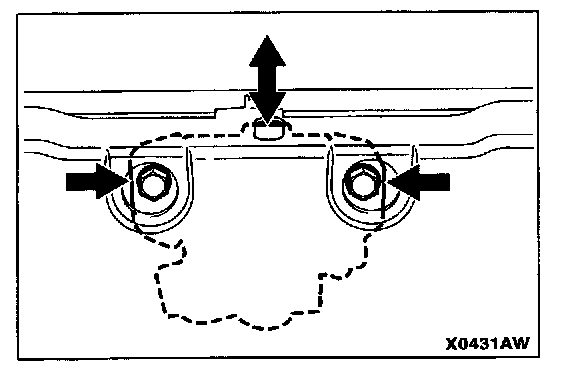

3. If the trunk lid is too high or low, or if it does not lock and unlock easily, check the condition of the release cable, and then loosen the trunk lid latch mounting bolts and move the trunk lid latch to adjust the meshing of the trunk lid latch and trunk lid striker.
Trunk lid latch mounting bolt tightening torque: 22 N.m (16 ft-lb)
