Front Door: Service and Repair

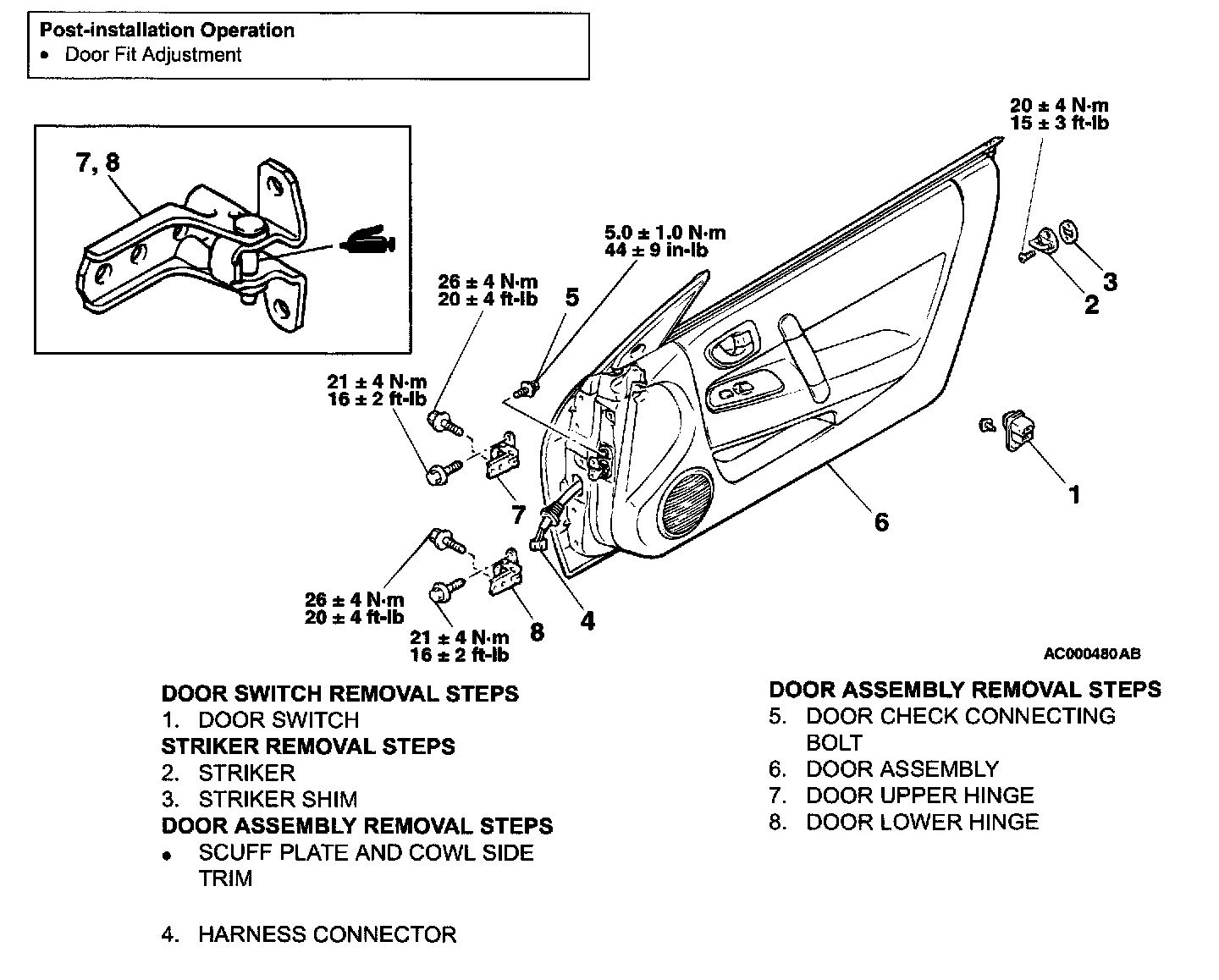

DOOR ASSEMBLY

Door Assembly:






Required Special Tool
- MB990900 or MB991164: Door Adjusting Wrench
