Front Door Weatherstrip: Service and Repair

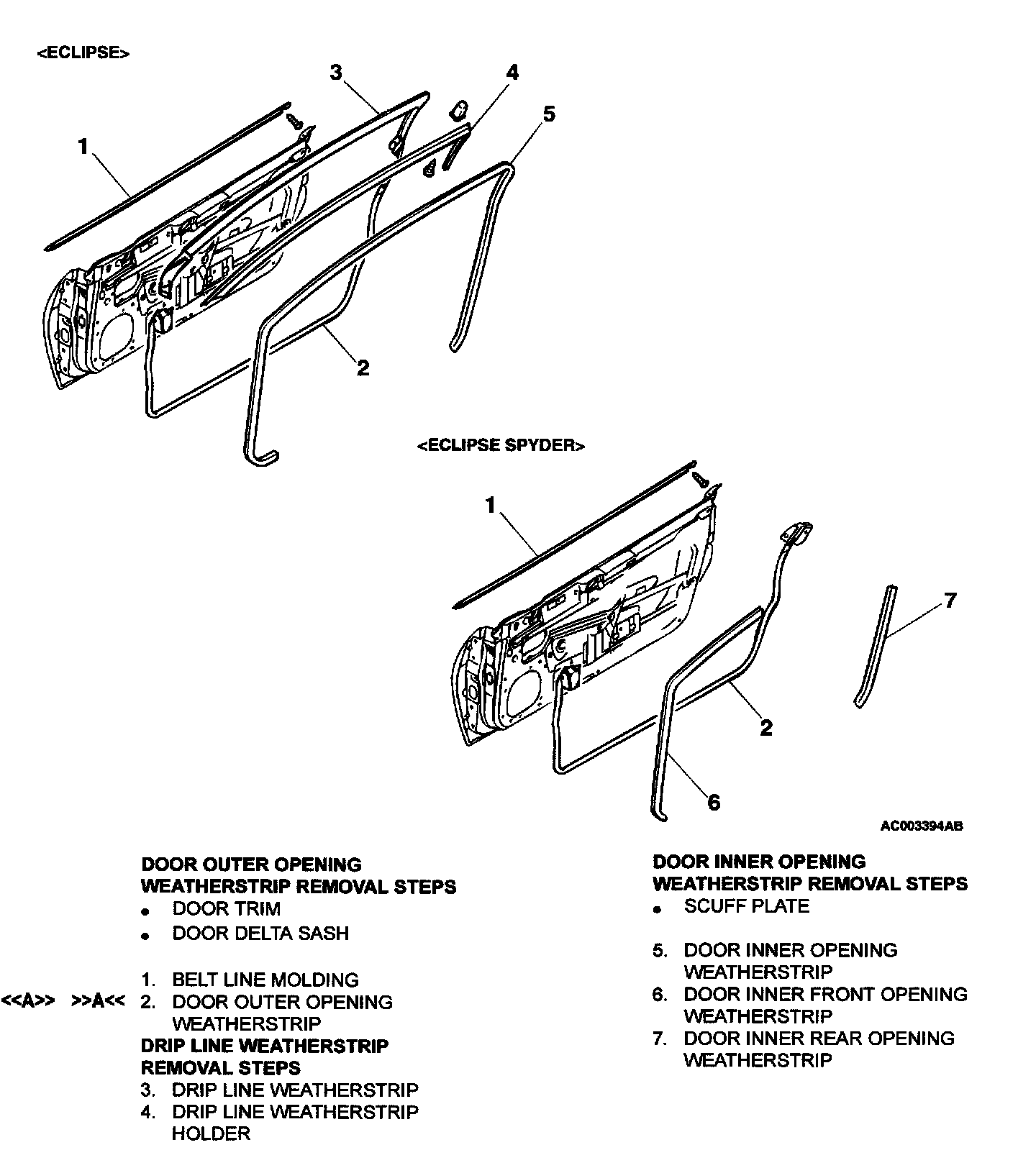

WINDOW GLASS RUN CHANNEL AND DOOR OPENING WEATHER-STRIP

WINDOW GLASS RUN CHANNEL AND DOOR OPENING WEATHER-STRIP:

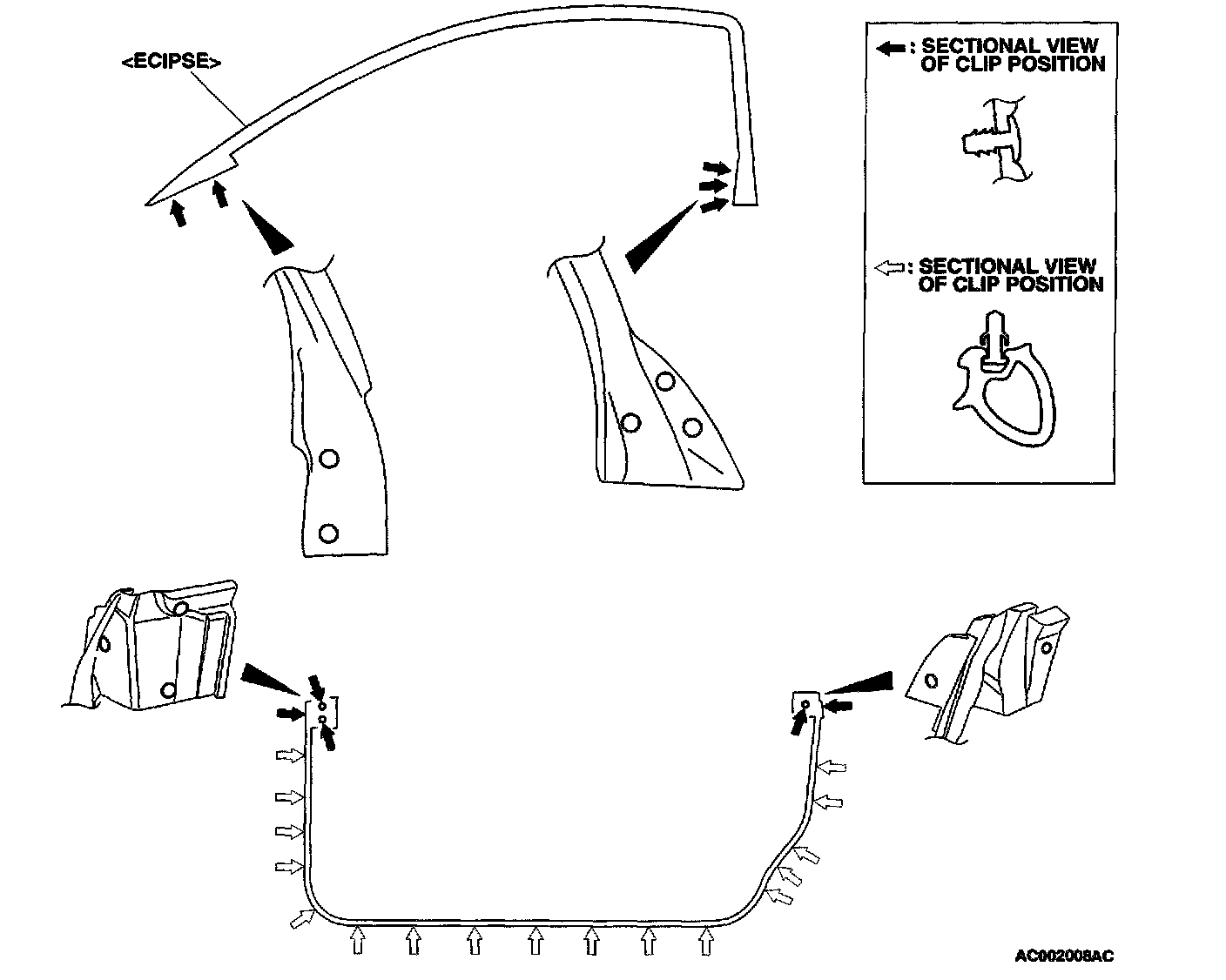

Clip And Claw Positions:

REMOVAL SERVICE POINT




[[A]] DOOR OUTER OPENING WEATHERSTRIP REMOVAL
Make a tool as shown and remove the door opening weatherstrip.

INSTALLATION SERVICE POINT




]]A[[ DOOR OUTER OPENING WEATHERSTRIP INSTALLATION

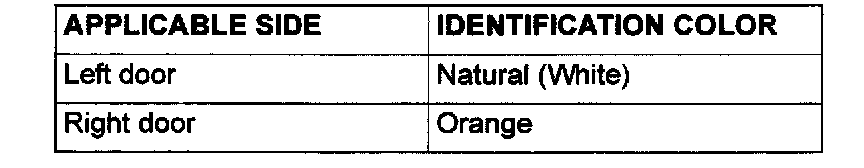

The clip color identifies the left and right weatherstrips.
