Front Door Latch: Service and Repair

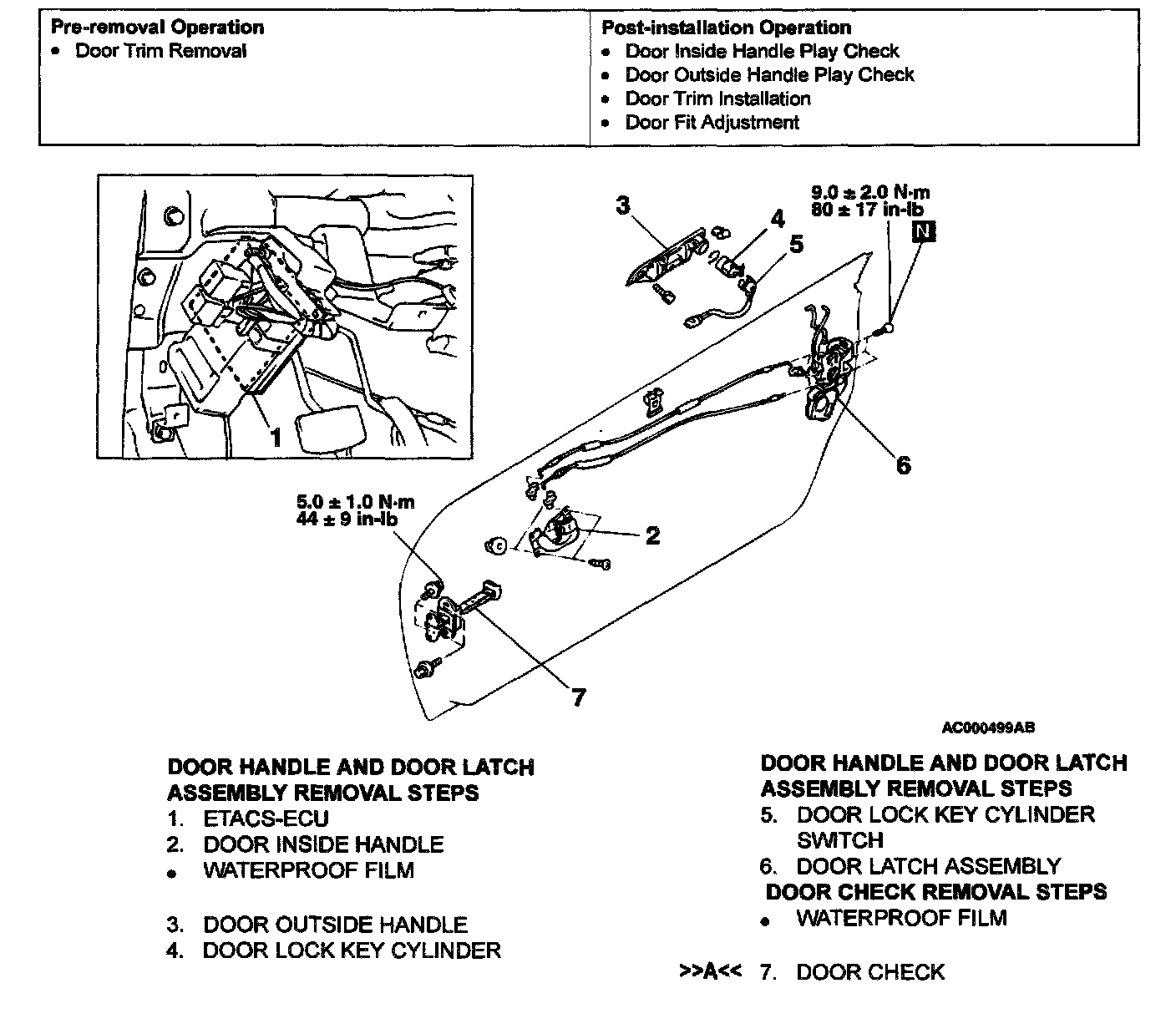

DOOR HANDLE AND LATCH
Door Handle And Latch:
INSTALLATION SERVICE POINT
]]A[[ DOOR CHECK INSTALLATION

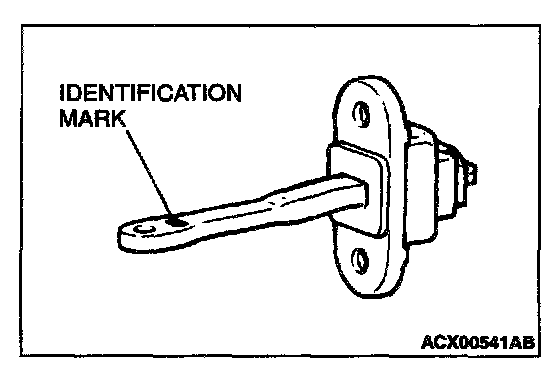

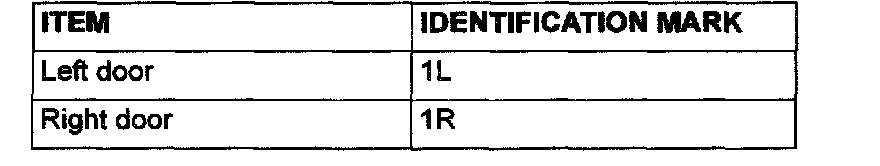

Install the door check so that the identification mark faces upwards.
