Home >> Mitsubishi >> 2004 >> Eclipse V6-3.0L SOHC >> Repair and Diagnosis >> Body and Frame >> Doors, Hood and Trunk >> Doors >> Front Door >> Diagrams >> Eclipse Spyder

Eclipse Spyder

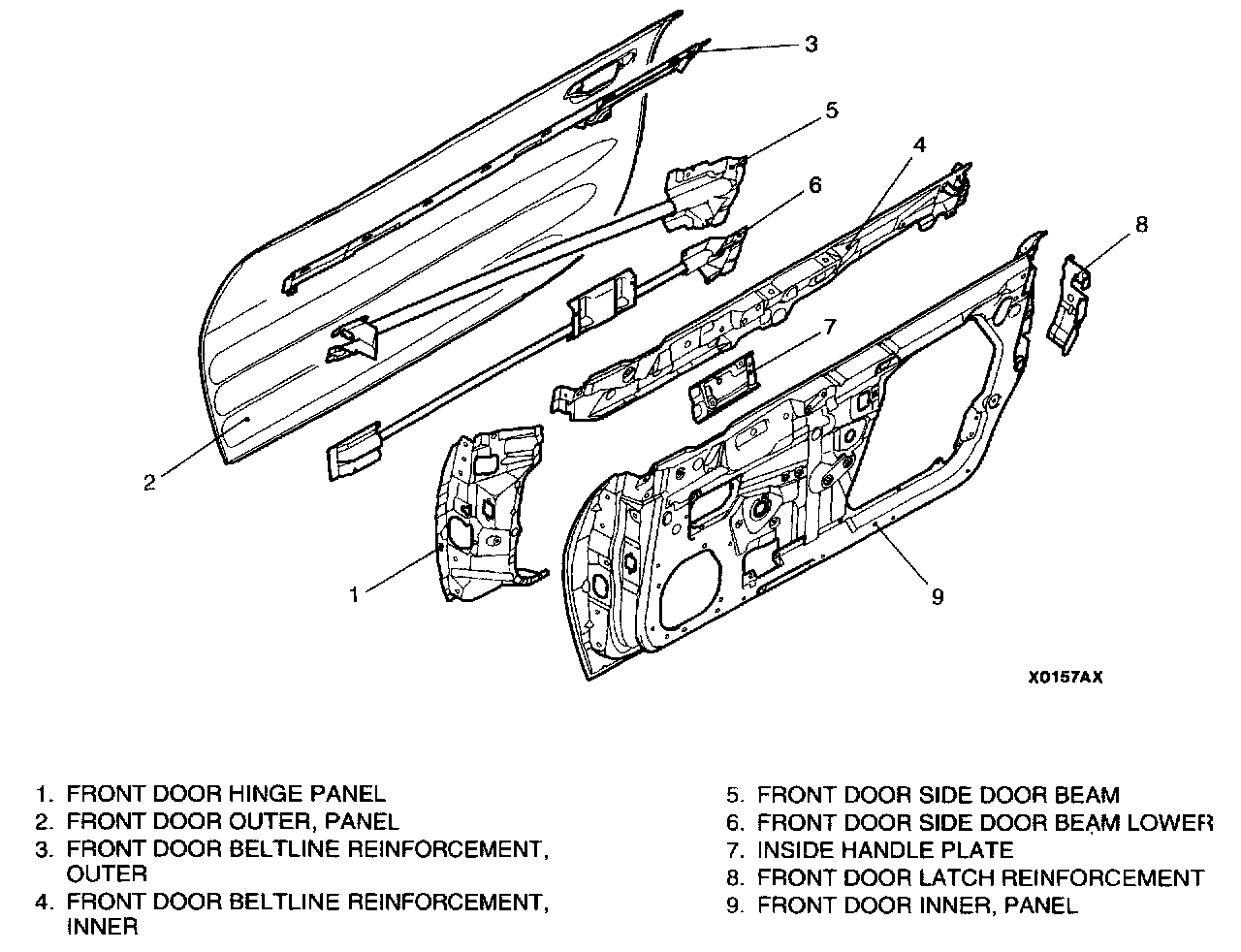

DOOR




Two side door beams have been provided inside the doors to maintain the safety of passengers in the event of a forward or side impact.
