Eclipse Spyder

MAINTENANCE, SERVICEABILITY

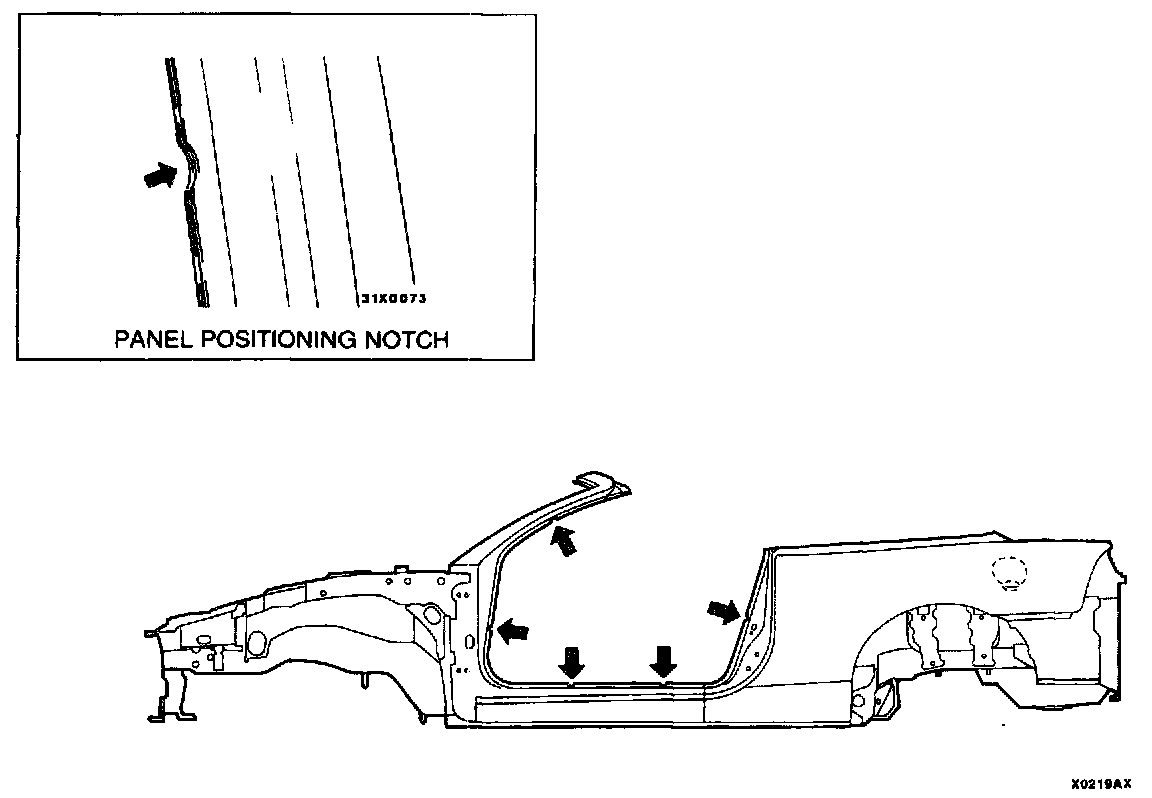

SIDE STRUCTURE




The door opening section is provided with panel positioning notches to improve workability when replacing panels.

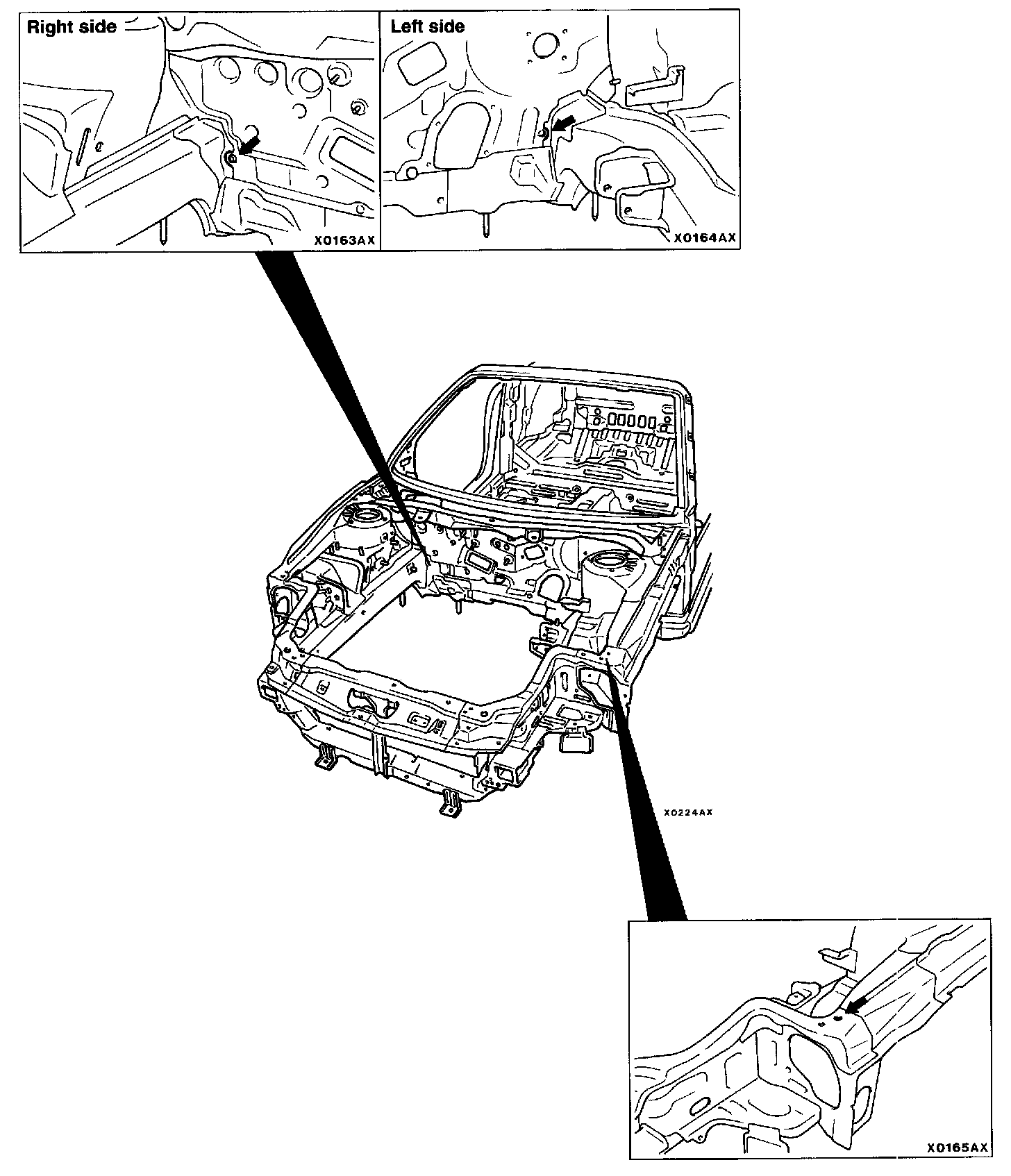

HEADLAMP SUPPORT, FENDER SHIELD




The overlapping sections of the panels shown below have been provided with positioning pawls, notches and holes to improve workability when assembling the panels.
