Eclipse

MAINTENANCE, SERVICEABILITY

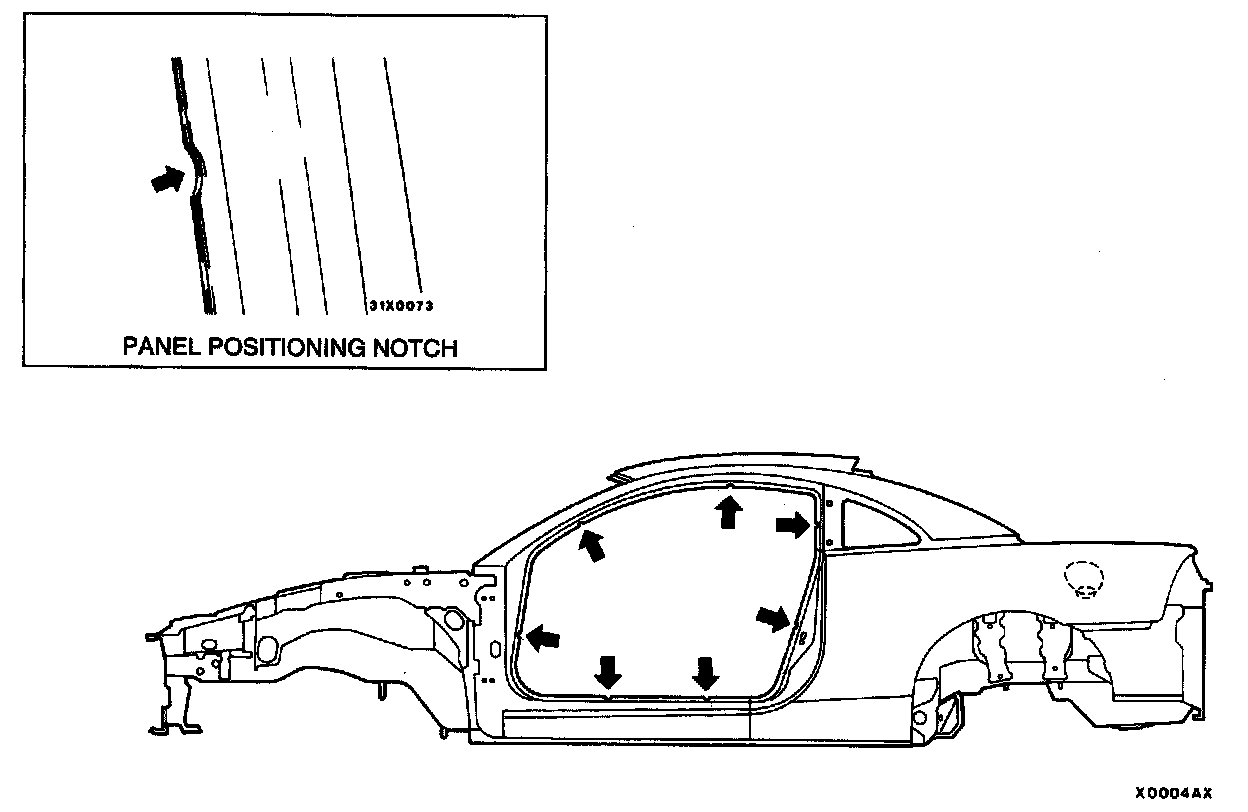

SIDE STRUCTURE




The door opening section is provided with panel positioning notches to improve workability when replacing panels

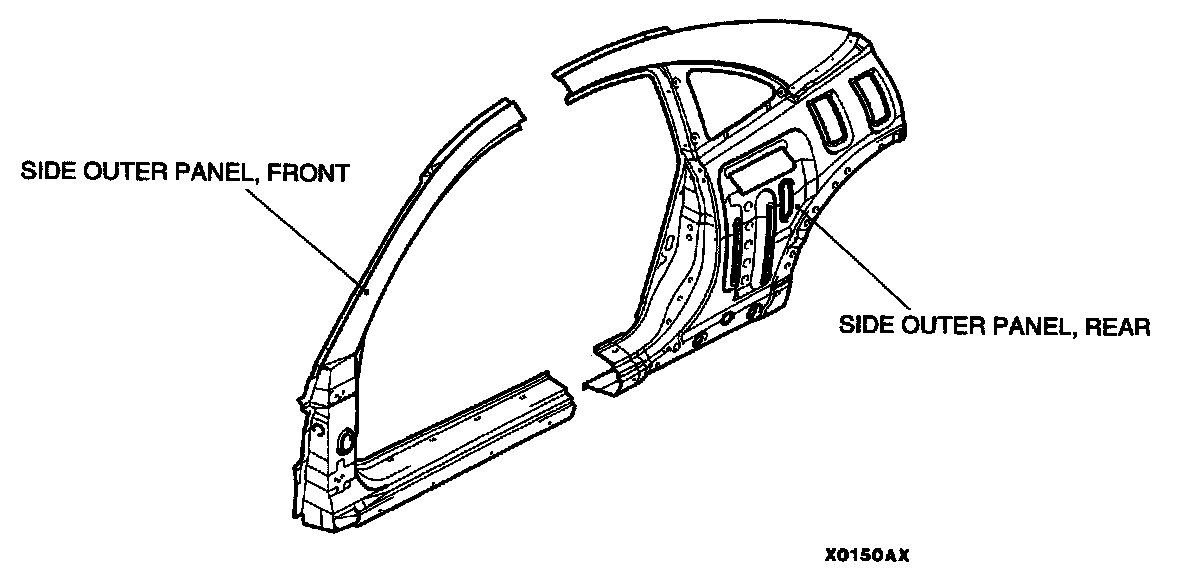

SIDE OUTER PANEL




Parts are supplied in the following cut forms in conjunction with the use of an integrated side outer panel.

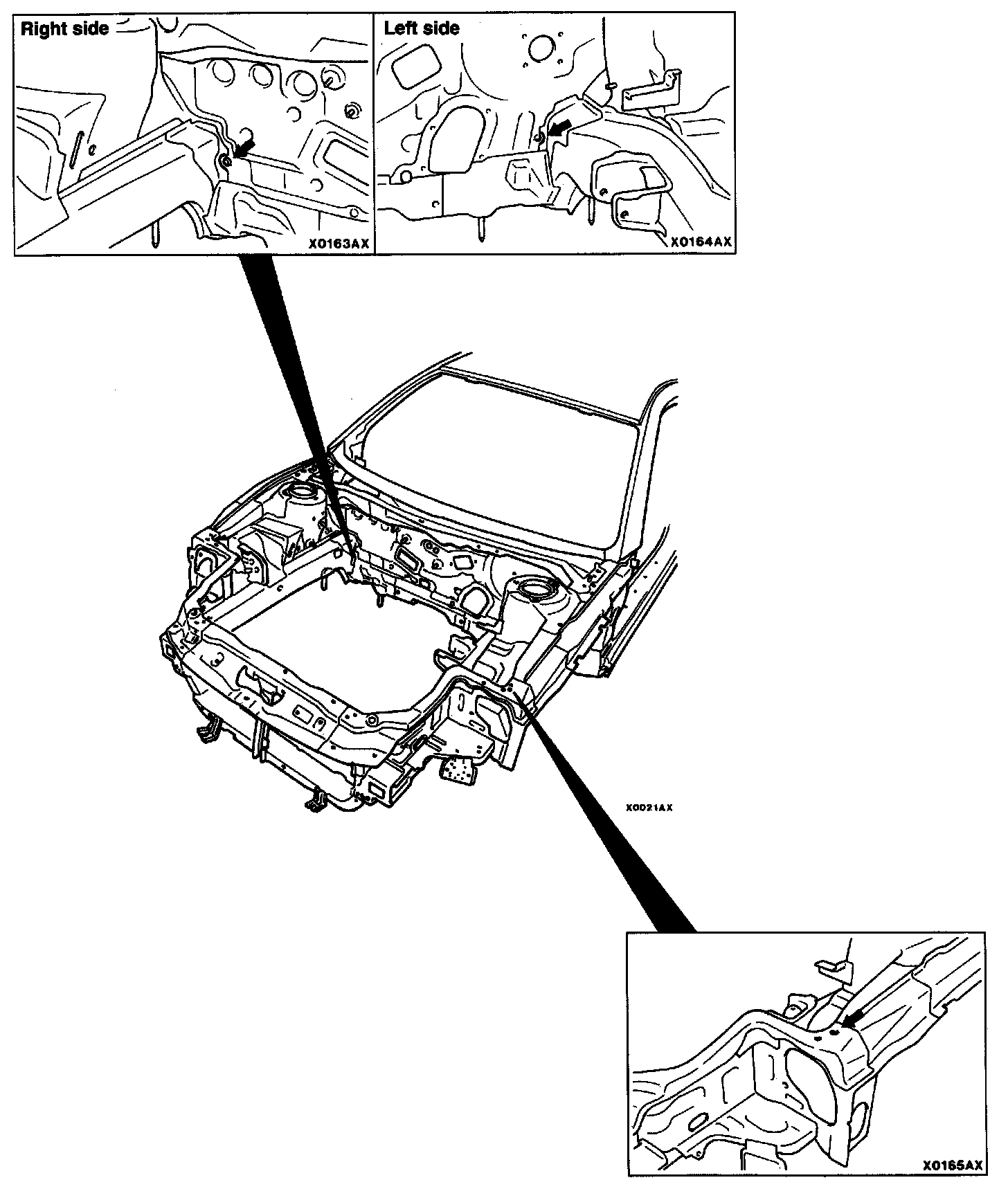

HEADLAMP SUPPORT, FENDER SHIELD




The overlapping sections of the panels shown below have been provided with positioning pawls, notches and holes to improve workability when assembling the panels.
