Removal and Replacement

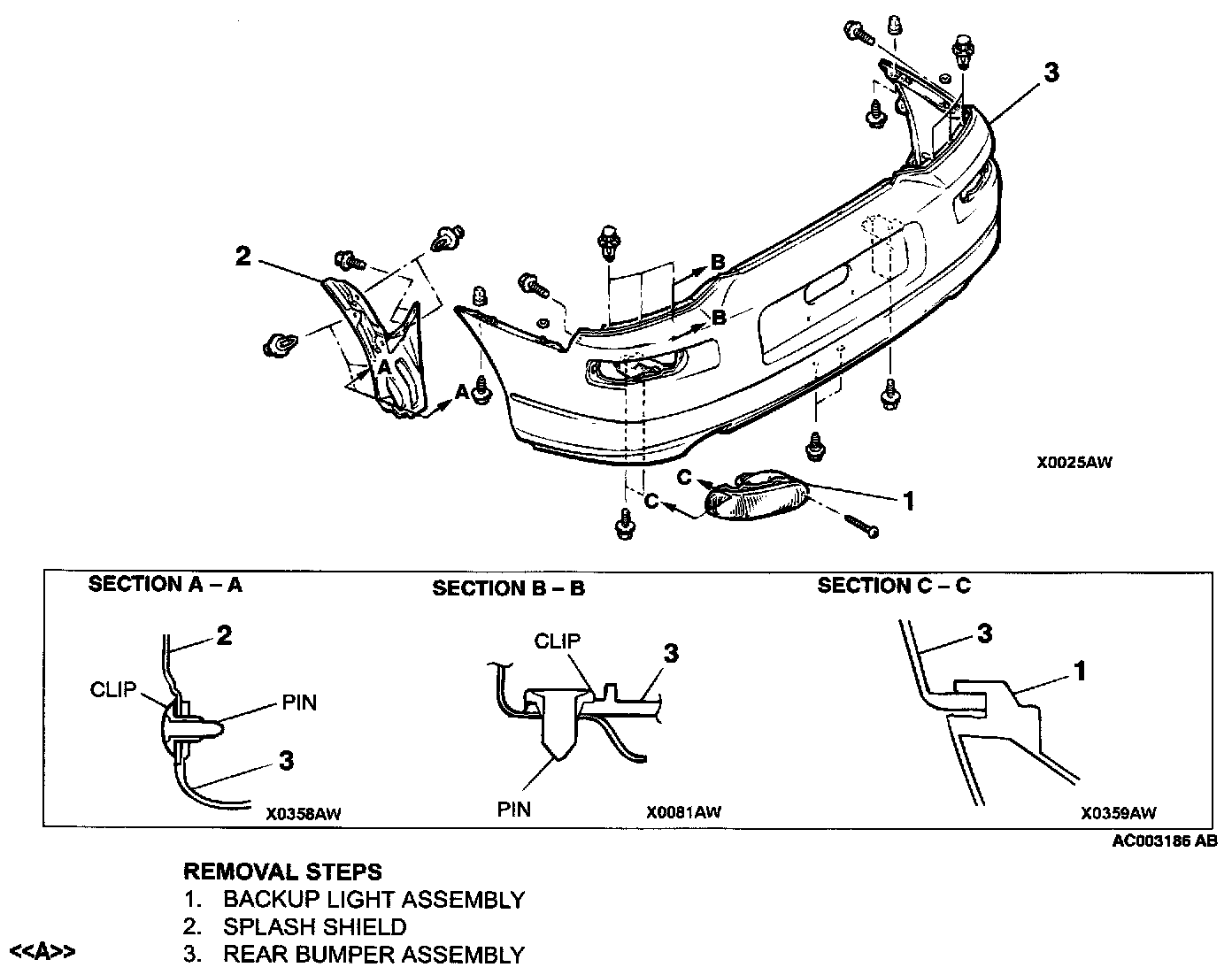

REAR BUMPER ASSEMBLY

REMOVAL AND INSTALLATION

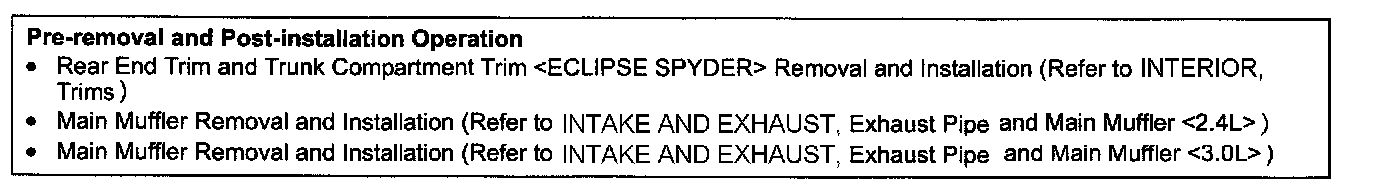

Pre-removal & Post-installation Operation:

Removal Steps 1-3:

Required Special Tool:
- MB990784: Ornament Remover

REMOVAL SERVICE POINT

[[A]] REAR BUMPER ASSEMBLY REMOVAL






1. Use special tool MB990784 to pull up the center pin in the clip.
2. Remove the clip.
