Overhaul

DISASSEMBLY AND REASSEMBLY

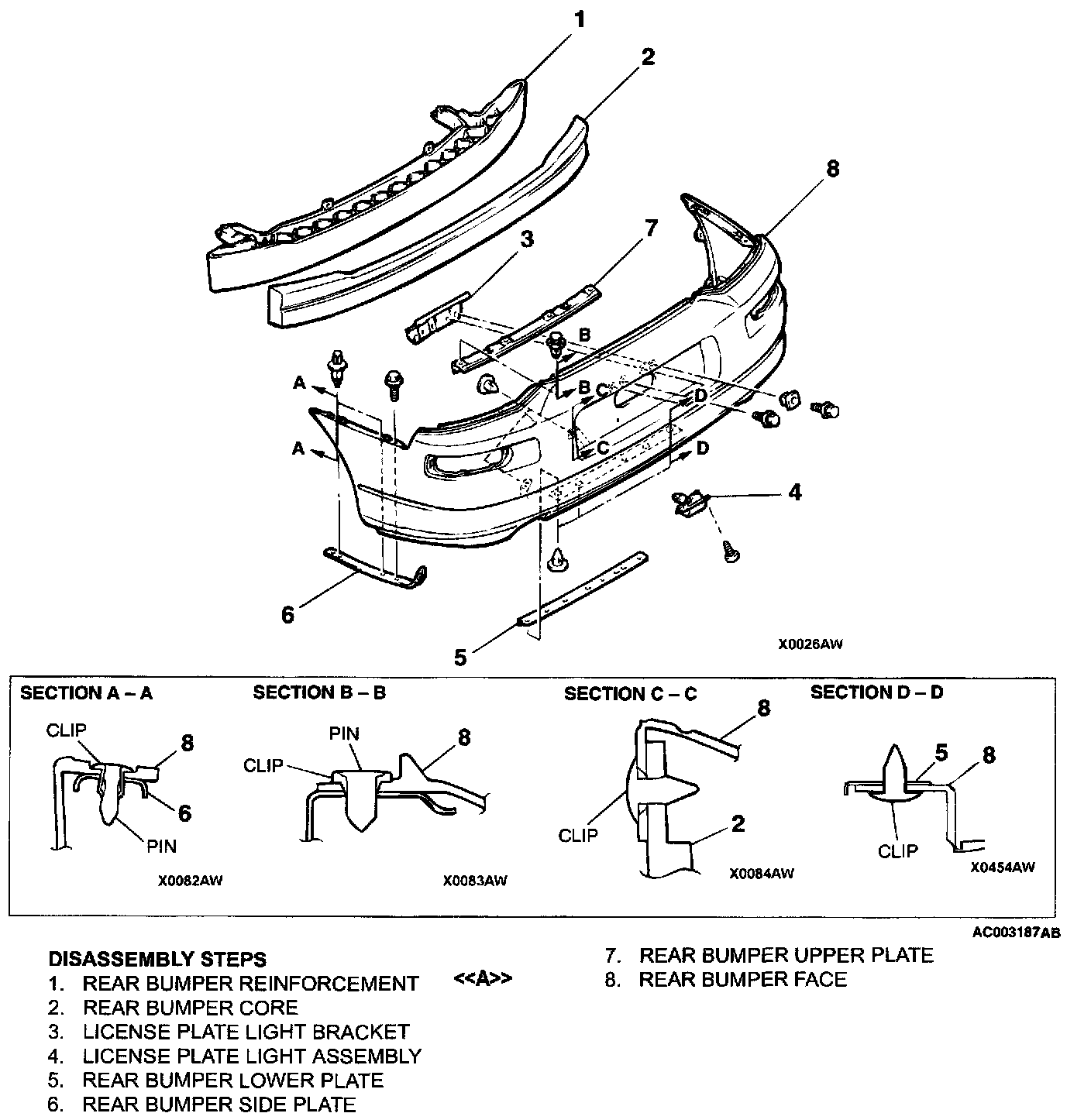

Disassembly Steps 1-8:

Required Special Tool:
- MB990784: Ornament Remover

DISASSEMBLY SERVICE POINT

[[A]] REAR BUMPER FACE REMOVAL

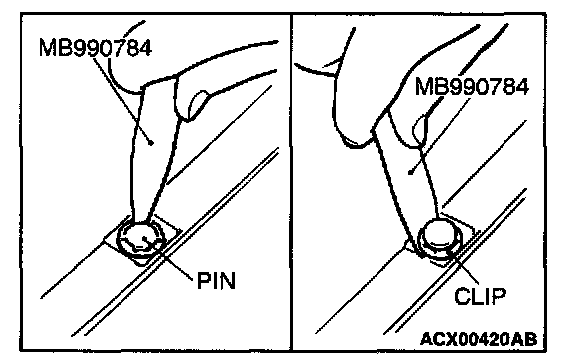

1. Use special tool MB990784 to pull up the center pin in the clip.
2. Remove the clip.
