Removal and Replacement

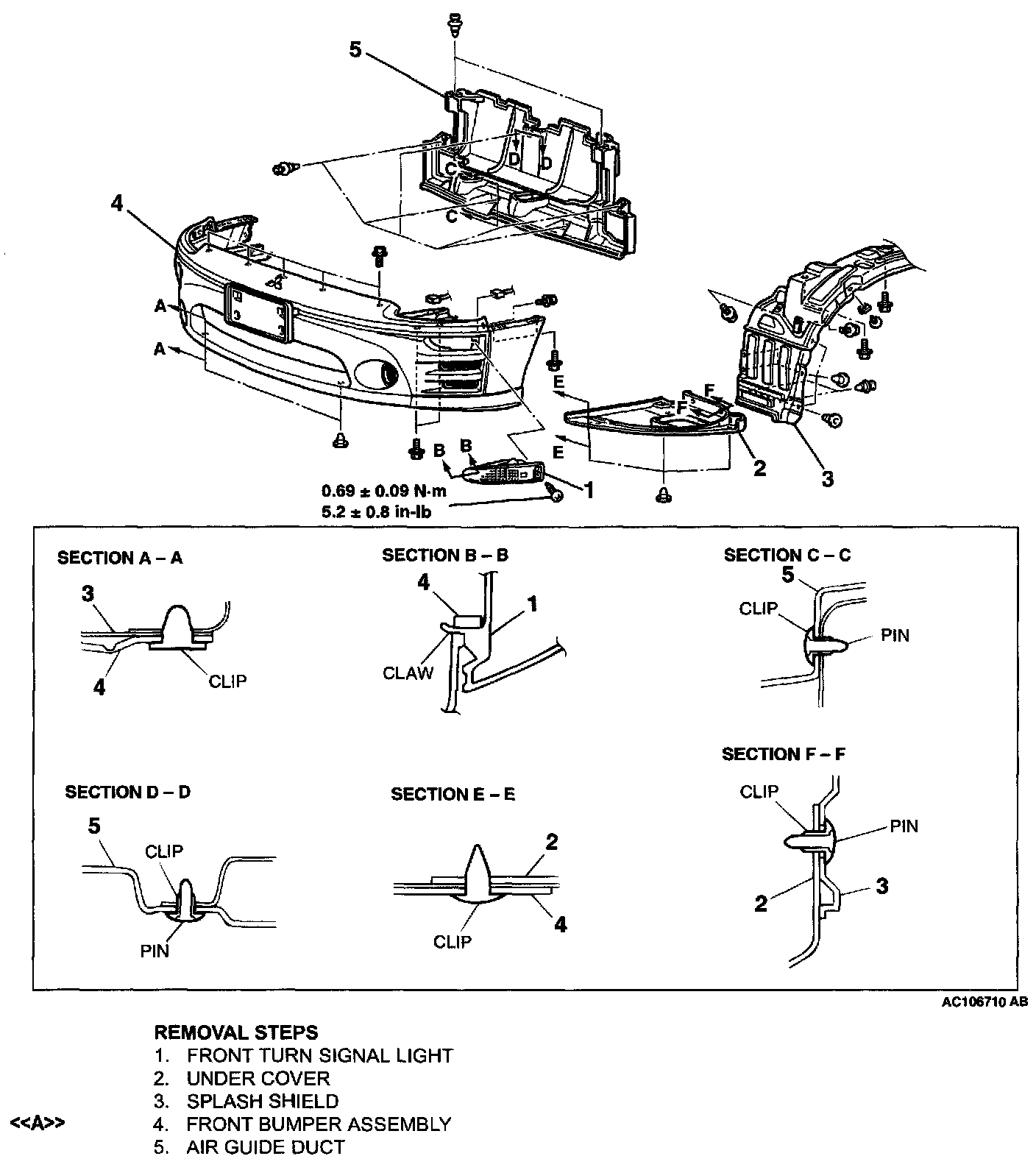

FRONT BUMPER ASSEMBLY

REMOVAL AND INSTALLATION

Removal Steps 1-5:

Required Special Tool:
- MB990784: Ornament Remover

REMOVAL SERVICE POINT

[[A]] FRONT BUMPER ASSEMBLY REMOVAL

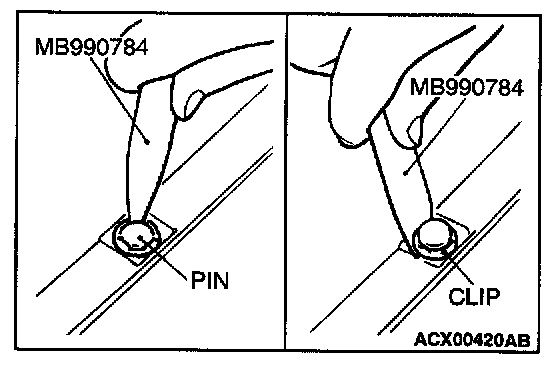

1. Use special tool MB990784 to pull up the center pin in the clip.
2. Remove the clip.
