Overhaul

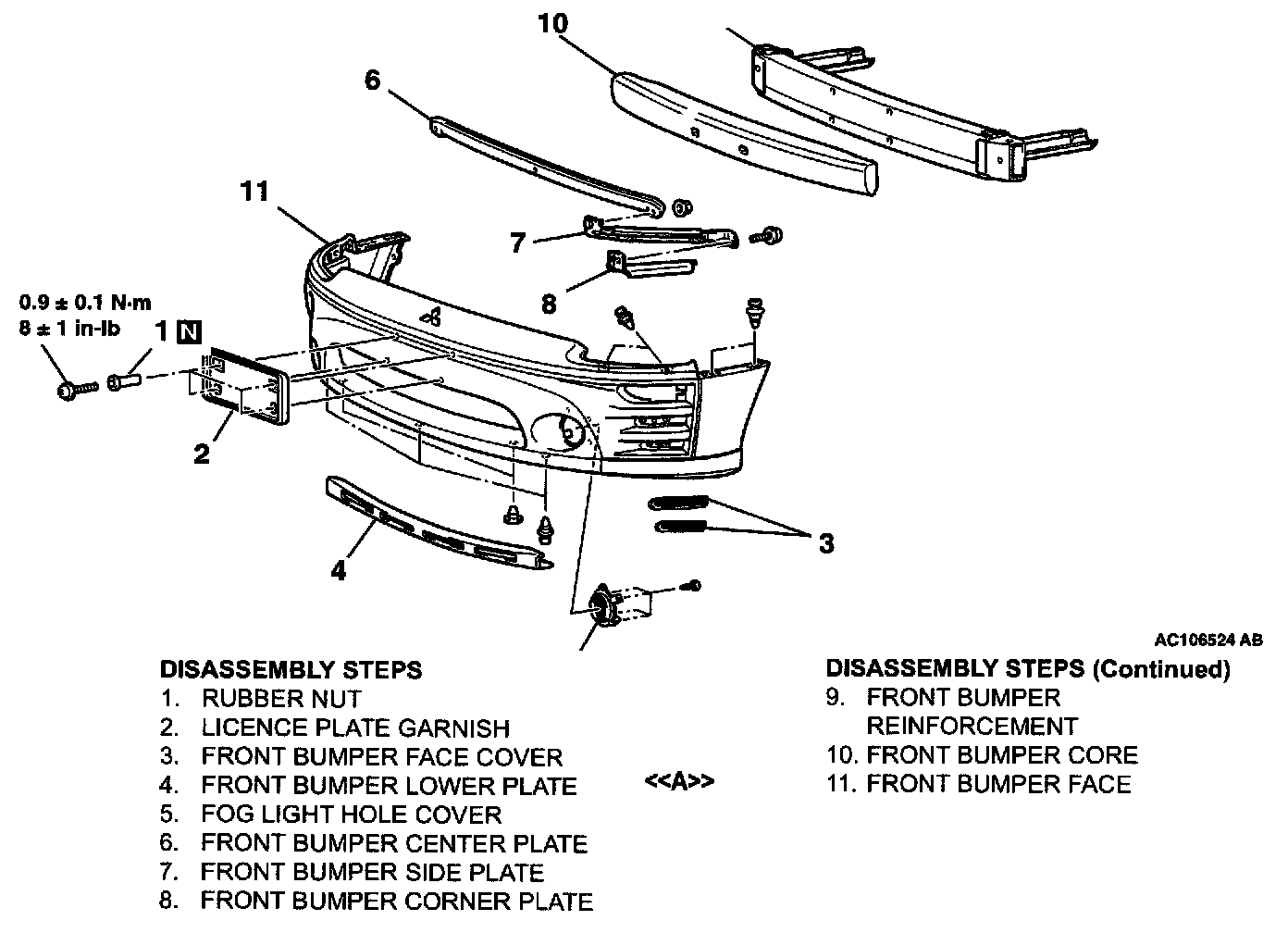

Disassembly Steps 1-11:

Required Special Tool:
- MB990784: Ornament Remover

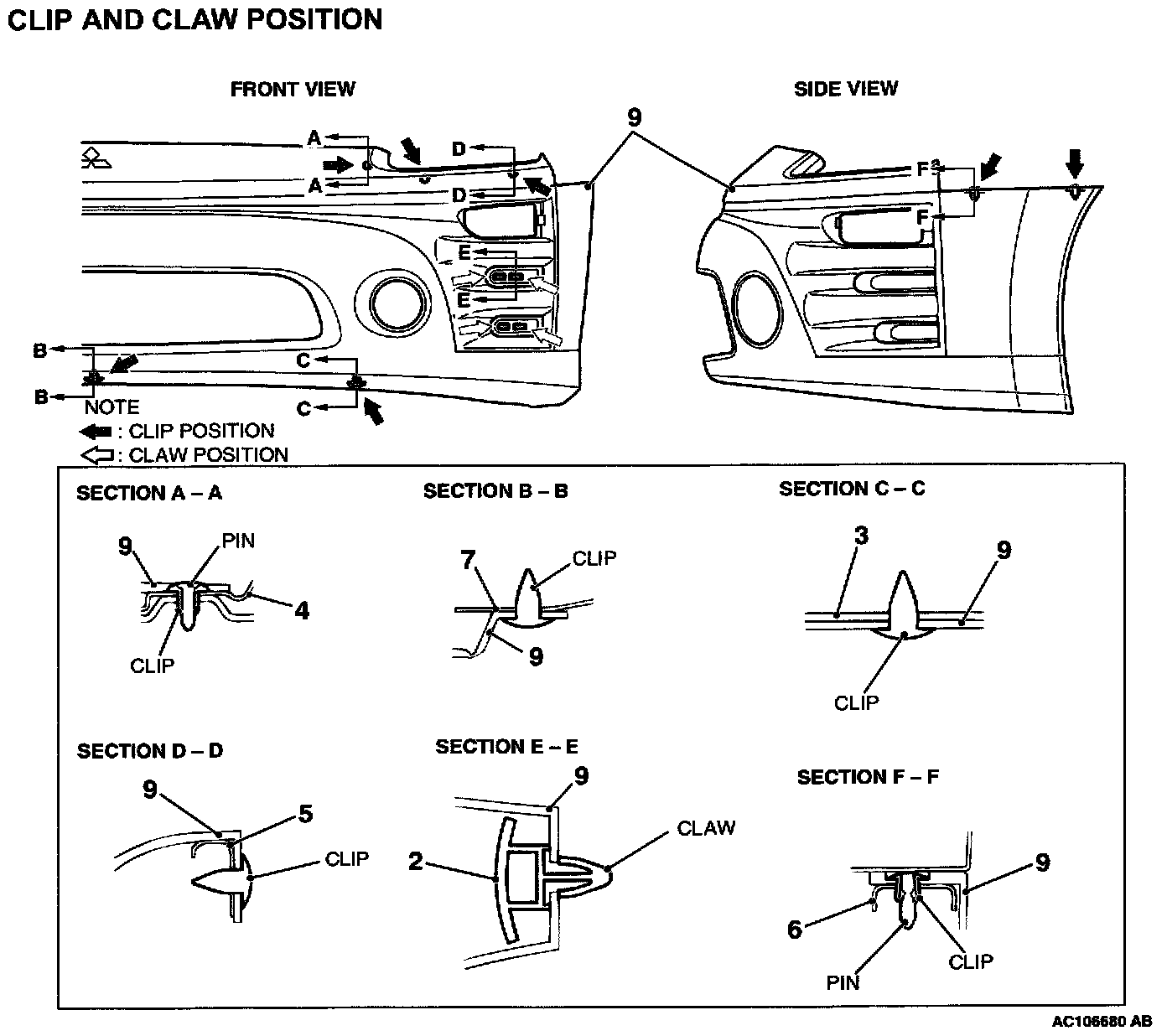

CLIP AND CLAW POSITION

Clip And Claw Position:

DISASSEMBLY SERVICE POINT

[[A]] FRONT BUMPER FACE REMOVAL

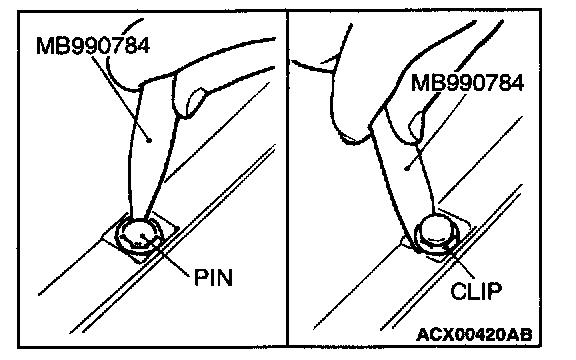

1. Use special tool MB990784 to pull up the center pin in the clip.
2. Remove the clip.
