Inspection Procedure 27

Motor Antenna Extends and Retracts but does not Receive Radio Signal.

DIAGNOSIS




STEP 1. Is the antenna normal?

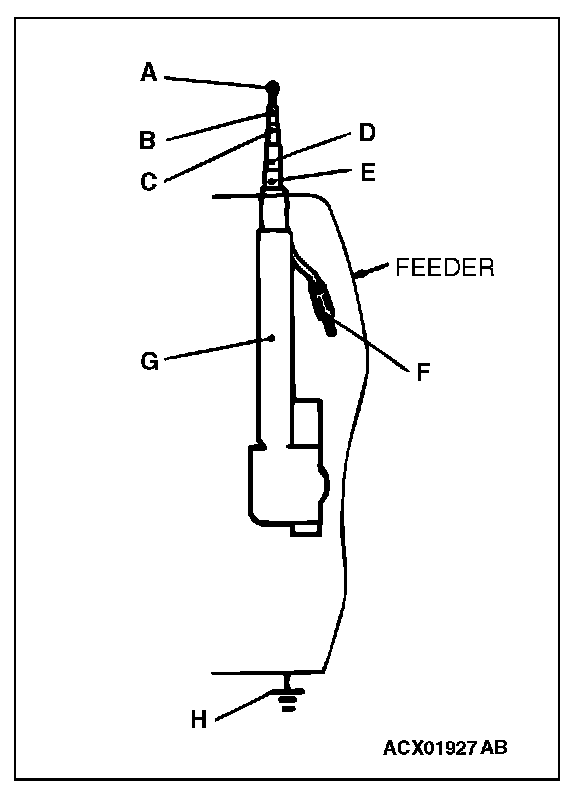

Q: Is there continuity on the circuits from F to A, B, C, D and E, the circuit from G to H?

YES: Go to Step 2.

NO: Repair or replace the antenna. Then check the malfunction is eliminated.

STEP 2. Check the motor antenna.

Q: Does the antenna operate normally when a new antenna assembly is directly install to the radio?

YES: Replace the motor antenna assembly.

NO: Radio and tape player may be defective. Carry out troubleshooting of the radio and tape player.
