Antenna: Testing and Inspection
INSPECTIONGLASS ANTENNA CHECK

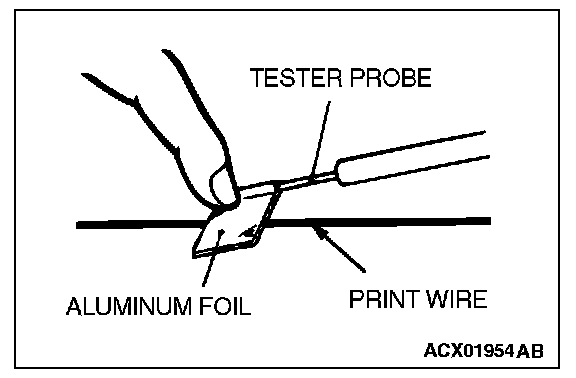

1. Wrap an aluminum foil around the tester probe a shown.
CAUTION: Be careful not to damage the print wire.
2. Check continuity while pressing the aluminum foil along the antenna print wire.
